HOBOnet® Wireless Sensor Network

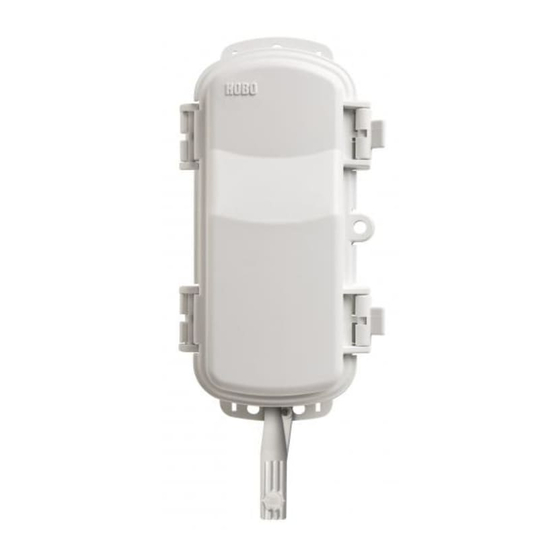

RXW Temperature/RH Sensor (RXW‐THC‐B‐xxx) Manual
RXW Temperature/
RH Sensor
Models:
 RXW‐THC‐B‐900 (US)
 RXW‐THC‐B‐868
(Europe)
 RXW‐THC‐B‐922
(Australia/NZ)
Included Items:
 Cable ties
 Screws

24501‐A

This sensor measures temperature and RH and is designed to work with the HOBOnet Wireless
Sensor Network in which data is transmitted wirelessly from the sensor mote across the
network to the station and then uploaded to HOBOlink® web‐based software. With HOBOlink,
you can monitor sensor readings, view graphs, set up alarms, download data, and more.
Specifications
Sensor
Measurement Range
Accuracy
Resolution
Drift
Response Time (typical, to
90% of change)
Wireless Mote
Operating Temperature
Range
Radio Power
Transmission Range
Wireless Data Standard
Radio Operating
Frequencies
Modulation Employed
Data Rate
Duty Cycle
Maximum Number of
Motes
Battery Type
Battery Life
Memory
Dimensions
Weight
Materials
Environmental Rating
Compliance Marks

Temperature
‐40°C to 75°C (‐40°F to 167°F)
±0.25°C from ‐40° to 0°C (±0.45°F
from ‐40° to 32°F)
±0.20°C from 0° to 70°C (±0.36°F
from 32° to 158°F)
±0.25°C from 70° to 100°C (±0.45°F
from 158° to 212°F)
0.02°C (0.036°F)
<0.01°C (0.018°F) per year
3 minutes, 45 seconds in air
moving 1 m/s

‐40 to 70°C (‐40 to 158°F)
12.6 mW (+11 dBm) non‐adjustable
Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
IEEE 802.15.4
RXW‐THC‐B‐900: 904–924 MHz
RXW‐THC‐B‐868: 866.5 MHz
RXW‐THC‐B‐922: 916–924 MHz
OQPSK (Offset Quadrature Phase Shift Keying)
Up to 250 kbps, non‐adjustable
<1%
50 motes per one HOBOnet wireless sensor network
Two AA 1.5 V lithium batteries
1 year, typical use
16 MB
Sensor: 45.97 x 11.43 x 10.16 mm (1.81 x 0.45 x 0.40 inches)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
223 g (7.87 oz)
Sensor: Polyamide
Mote: PCPBT, silicone rubber seal
IP67, NEMA 6
RXW‐THC‐B‐900: See last page

RXW‐THC‐B‐868: The CE Marking identifies this product as

complying with all relevant directives in the European Union
(EU).
RXW‐THC‐B‐922: See last page

RH
0–100% RH at ‐40° to 75°C (‐40° to
167°F); exposure to conditions
below ‐20°C (‐4°F) or above 95%
RH may temporarily increase the
maximum RH sensor error by an
additional 1%
±2.5% from 10% to 90% RH
typical to a maximum of ±3.5%
including hysteresis at 25°C
(77°F); below 10% and above
90% ±5% typical
0.01% RH
<1% per year typical
15 seconds in air moving 1 m/s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOBOnet RXW-THC-B Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hobo HOBOnet RXW-THC-B Series

  • Page 1    HOBOnet® Wireless Sensor Network RXW Temperature/RH Sensor (RXW‐THC‐B‐xxx) Manual  This sensor measures temperature and RH and is designed to work with the HOBOnet Wireless  Sensor Network in which data is transmitted wirelessly from the sensor mote across the  network to the station and then uploaded to HOBOlink® web‐based software. With HOBOlink,  you can monitor sensor readings, view graphs, set up alarms, download data, and more.  Specifications  Sensor  Temperature  RH  Measurement Range  ‐40°C to 75°C (‐40°F to 167°F)  0–100% RH at ‐40° to 75°C (‐40° to  167°F); exposure to conditions  below ‐20°C (‐4°F) or above 95%  RH may temporarily increase the  maximum RH sensor error by an  additional 1%  RXW Temperature/  Accuracy  ±0.25°C from ‐40° to 0°C (±0.45°F  ±2.5% from 10% to 90% RH  RH Sensor  from ‐40° to 32°F)  typical to a maximum of ±3.5%  including hysteresis at 25°C  ±0.20°C from 0° to 70°C (±0.36°F  Models:  (77°F); below 10% and above  from 32° to 158°F)  90% ±5% typical   RXW‐THC‐B‐900 (US)  ±0.25°C from 70° to 100°C (±0.45°F   RXW‐THC‐B‐868  from 158° to 212°F)  (Europe)  Resolution  0.02°C (0.036°F) ...
  • Page 2 RXW Temperature/RH Sensor (RXW‐THC‐B‐xxx) Manual  join (see Adding the Mote to the HOBOnet Wireless Sensor  Mote Components and Operation  Network).  Mounting  LCD Screen: The mote is equipped with an LCD screen that  Tab  displays details about the current status. This example shows all  symbols illuminated on the LCD screen followed by definitions  of each symbol in the table.  Latch  Eyelet    Ground Wire  LCD Symbol  Description  Port  The battery indicator shows the approximate battery  Sensor  charge remaining.        Sensor Mote Closed, Front  Sensor Mote Closed, Back  This is a signal strength indicator. The more bars, the    LEDs  stronger the signal between motes. If there is no x  Antenna  icon next to the signal strength indicator, then the    mote is part of a HOBOnet Wireless Sensor Network.  An empty signal strength icon plus the x icon  indicates that the mote is not currently part of a  LCD Screen  network. See Adding the Mote to the HOBOnet  Wireless Sensor Network for details on how to add a    mote to the network.  Button ...
  • Page 3 RXW Temperature/RH Sensor (RXW‐THC‐B‐xxx) Manual  the module with the manager (module 2 on RX2105 or  This process may take up to five minutes. The green LED  RX2106 stations).  blinks quickly while the mote searches for a network to join  and then blinks slowly while it completes the network  registration. Once the mote has finished joining the  network, the green LED turns off and the blue LED then  blinks indefinitely while the mote is part of the network.  Note: If the mote cannot find the network or has trouble  remaining connected during this process, make sure the  mote is in a vertical, upright position and within range of  the station.    7. Press the Search button (the magnifying glass) on the  station to stop searching for motes.  Press this button to view the module  3. Press the Search button (the magnifying glass). The  magnifying glass icon will blink while the station is in search  mode.    Press this button again to  stop searching for motes  If you added more than one more mote to the network, then    the total channel count for the module on the station LCD will  Press this button so the station is ready  represent all measurement channels plus a battery channel for  to have motes join the network  each mote in the network.  4. Open the mote door and install the batteries if you have not  Sensor measurements will be recorded at the logging interval  already done so.  specified in HOBOlink, transmitted to the station, and uploaded  5. Press the button on the mote for 3 seconds. The signal  to HOBOlink at the next connection interval (readout). Use  strength icon will flash and then cycle. ...
  • Page 4 RXW Temperature/RH Sensor (RXW‐THC‐B‐xxx) Manual   Consider using a 3/16 inch padlock to restrict access to the  3. Click the Wireless tab. This icon   appears next to the  mote. With the mote door closed, hook a padlock through  mote if there is a new version of firmware available.  the eyelet on the right side of the door and lock it.   Make sure the mote is mounted a minimum of 1.8 m (6 ft)  4. Click the firmware   upgrade link. Click Download and  save the firmware .bin file to your computer.  from the ground to help maximize distance and signal  strength.  5. Connect the mote to the computer with a USB cable (open  the mote door and use the USB port to the right of the   Place the mote so there is full line of sight with the next  LCD). The blue LED is illuminated while connected.  mote. If there is an obstruction between two sensor motes  6. The mote appears as a new storage device in the  or between the sensor mote and the manager, then use a  computer’s file storage manager. Copy the downloaded  repeater mounted on the obstruction.  firmware file to the new storage device (the mote). The   There should not be more than five motes in any direction  blue LED will blink slowly while the file is copying.  at their maximum transmission range from the manager.  7. After the file is copied to the mote, the LED will stop  Data logged by a wireless sensor must travel or “hop”  blinking and remain a steady blue. Eject the storage device  across the wireless network from one mote to the next  from the computer and disconnect the cable from the  until it ultimately reaches the manager connected to the ...
  • Page 5  Increase the separation between the equipment and receiver   Connect the equipment into an outlet on a circuit different from that to which the receiver is connected   Consult the dealer or an experienced radio/TV technician for help  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device  must accept any interference received, including interference that may cause undesired operation.  FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  Industry Canada Statements  This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and  (2) this device must accept any interference, including interference that may cause undesired operation of the device.  Avis de conformité pour l’Industrie Canada  Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)  l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le  fonctionnement.  To comply with FCC and Industry Canada RF radiation exposure limits for general population, the logger must be installed to provide a separation distance of at least 20cm from  all persons and must not be co‐located or operating in conjunction with any other antenna or transmitter.      ©  2020  Onset  Computer  Corporation.  All  rights  reserved.  Onset,  HOBO,  and  HOBOlink  are  registered  trademarks of Onset Computer Corporation. Mac is a registered trademark of Apple Inc. All other trademarks  1‐800‐LOGGERS (564‐4377) • 508‐759‐9500  are the property of their respective companies.    www.onsetcomp.com/support/contact  24501‐A   ...
