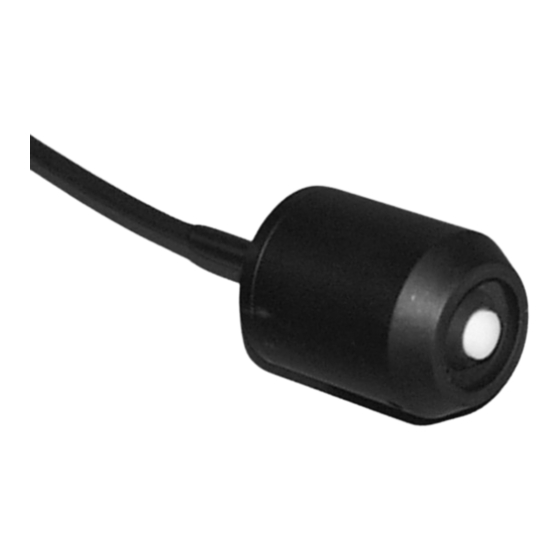

Photosynthetically Active Radiation (PAR)
Smart Sensor (Part # S-LIA-M003)
The Photosynthetically Active Radiation (PAR) smart sensor is designed
®
to work with the HOBO
Weather Station logger. The smart sensor has a
plug-in modular connector that allows it to be added easily to a HOBO
Weather Station. All calibration parameters are stored inside the smart
sensor, which automatically communicates configuration information to
the logger without any programming, calibration, or extensive user setup.
Specifications
Measurement Range
Accuracy
Angular Accuracy
Resolution
Drift
Calibration
Operating Temperature
Range
Environmental Rating
Housing
Dimensions
Weight
Bits per Sample
Number of Data Channels *
Measurement Averaging
Option
Cable Length Available
Length of Smart Sensor
Network Cable *
Part Number
Specification
*
A single HOBO Weather Station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor
cable(the digital communications portion of the sensor cables).
© 2001–2003 Onset Computer Corporation
Part #: MAN-S-LIA
Doc #: 5942-C
PAR Smart Sensor
2
0 to 2500 µmol/m
/sec, wavelengths 400 to 700 nm (see Figure 1)
2
±5 µmol/m
/sec or ± 5%, whichever is greater in sunlight.
Additional temperature induced error ±0.75 µmol/m
2
+25°C (0.42 µmol/m
/sec/˚ F from +77°F)
Cosine corrected 0 to 80 degrees from vertical; Azimuth Error < 2%
error at 45 degrees from vertical, 360 degree rotation
2
2.5 µmol/m
/sec
< ±2% per year
Factory recalibration available
-40° to +75°C (-40° to +167°F)
Weatherproof
Anodized aluminum housing with acrylic diffuser and O-ring seal
4.1 cm height x 3.2 cm diameter (1 5/8 x 1 1/4 in)
120 g (4 oz)
10
1
Yes
3.0 m (9.8 ft)
3.0 m (9.8 ft)
S-LIA-M003
This product meets CE specification EN61326 criterion C for ESD, criterion
C for Radiated Immunity, criterion B for Fast Transient, criterion A for
Conducted Immunity, and criterion A for Power Frequency Magnetic Fields.
To minimize measurement errors due to ambient RF, use the shortest
possible probe cable length and keep the probe cable as far as possible
from other cables.
Supplied in Australia by Instrument Choice
2
/sec/˚ C from
Call our scientists on 1300 737 871
www.instrumentchoice.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hobo S-LIA-M003
Summary of Contents for Hobo S-LIA-M003
- Page 1 A single HOBO Weather Station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable(the digital communications portion of the sensor cables).
- Page 2 PAR Smart Sensor Figure 1: PAR Smart Sensor Typical Quantum Response Note: The PAR smart sensor is designed to detect photons between 400-700 nm in wavelength. Ideally the sensor would count photons with equal efficiency between 400-700 nm and no photons would be counted outside this range.
- Page 3 PAR Smart Sensor 5. Mount the light sensor bracket on the mast with the two U-bolt assemblies, mounting it high enough on the mast to avoid the possibility of shading the light sensor. Note: If you mount the light sensor above eye level, it is recommended that you use a step ladder or other secure platform when leveling the sensor so that you can clearly view the light sensor level (Onset Part # M- LLA).
- Page 4 If a port is not available, use a 1-to-2 adaptor (Part # S-ADAPT), which allows you to plug two sensors into one port. The next time the HOBO Weather Station is launched it will automatically detect the new sensor. Note that the HOBO Weather Station supports a maximum of 15 data channels;...
- Page 5 Onset will examine and retest this and any other smart sensor. © 2001–2003 Onset Computer Corporation, all rights reserved. Onset and HOBO are trademarks of Onset Computer Corporation. The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
