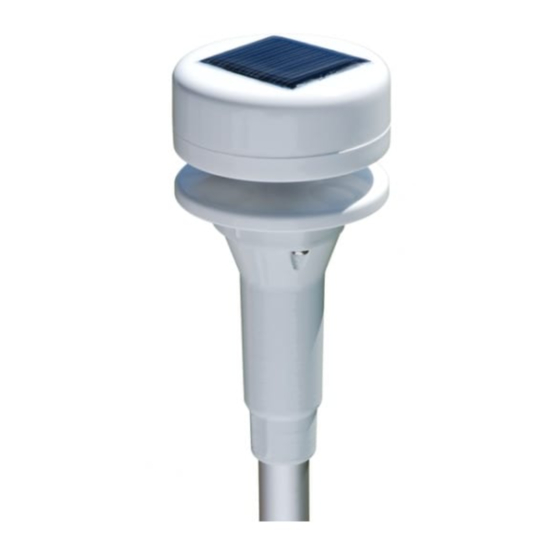

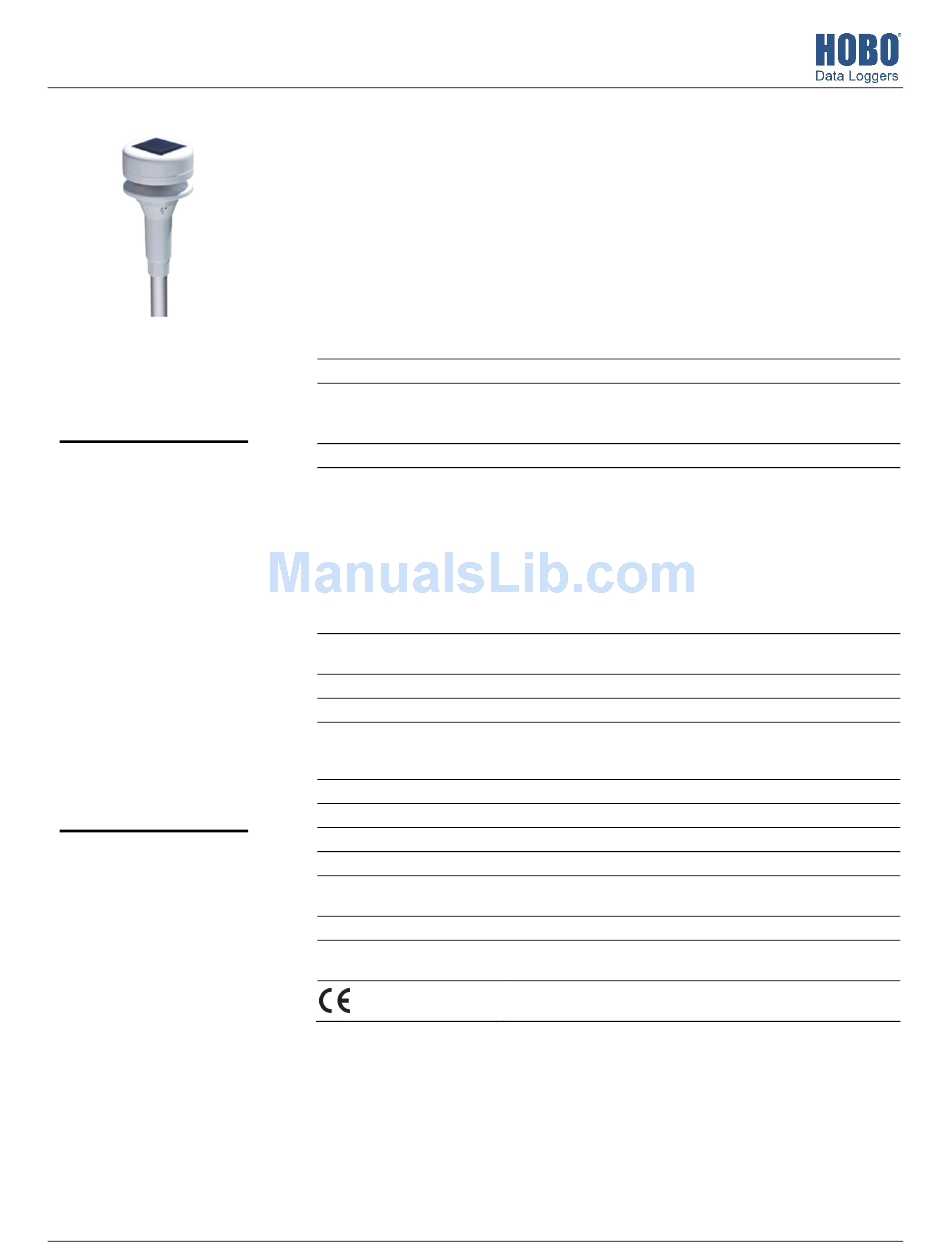

Ultrasonic Wind Speed and Direction Smart Sensor
(S-WCG-M003) Manual
Ultrasonic Wind Speed &
Direction Smart Sensor
S-WCG-M003
Items included:
• North alignment tool
• U-bolts with hex nuts,
brackets, spacers, and lock
nuts for mounting on a
mast or cross arm
Items required:
• Phillips-head screw driver
• 10 mm wrench (if
mounting on a mast or
cross arm)
• Screws and drill (if
mounting on a vertical
surface)
Accessories:
• Grounding kit (M-GKA)
22408-B
The Ultrasonic Wind Speed and Direction smart sensor is designed to work with HOBO®
stations and is powered by its own built-in solar panel. The smart sensor has a plug-in modular
connector that allows it to be added easily to a HOBO station. All sensor parameters are stored
inside the smart sensor, which automatically communicates configuration information to the
logger without the need for any programming or extensive setup. Note: This sensor has been
modified to work with Onset station loggers only.

Specifications

Measurement Range
Accuracy
Resolution
Measurement Definition
Operating Temperature Range
Without Icing
Environmental Rating
Housing
Dimensions
Weight
Power Supply
Bits per Sample
Number of Data Channels*
Measurement Averaging
Option
Cable Length Available
Length of Smart Sensor
Network Cable*
* A single HOBO station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital
communications portion of the sensor cables).
Wind Speed/Gust
0 to 41.16 m/s (0 to 92.07 mph)
±0.8 m/s (1.79 mph) or ±4% of
reading, whichever is greater
0.4 m/s (0.89 mph)
Wind speed readings are taken
every three seconds for the
duration of the logging interval
Wind speed: Average speed for
the entire logging interval
Gust speed: The highest three-
second wind recorded during
the logging interval
See Measurement Operation.
-15°C to 55°C (5°F to 131°F)
Weatherproof
Polyacetal
Sensor length: 380 mm (14.96 inches)
Sensor head diameter: 60 mm (2.36 inches)
Sensor rod diameter: 16 mm (0.63 inches)
200 g (7 oz)
Photovoltaic panel, LIFEP04 3.2 V -600 mAh battery
8 for each channel, 24 total
3
Automatic averaging (see Measurement Operation)
3 m (9.8 ft)
0.5 m (1.6 ft)
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
Wind Direction
0 to 359 degrees
0.2 to 3 m/s (0.44–6.7 mph):
±4 degrees
>3 m/s (6.7 mph): ±2 degrees
1 degrees (0 to 359 degrees)
Unit vector averaging used;
vector components for each
wind measurement are
calculated every three seconds
for duration of logging interval
(see Measurement Operation)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-WCG-M003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hobo S-WCG-M003

  • Page 1: Specifications

    The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). * A single HOBO station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital communications portion of the sensor cables).
  • Page 2: Mounting Guidelines

    Ultrasonic Wind Speed and Direction Smart Sensor (S-WCG-M003) Manual The cap should be fully seated in the sensor rod without Connecting the Sensor Battery any gaps as shown below. If there is a gap, remove the cap The smart sensor includes a factory-installed battery that has and push the battery cables further in the sensor rod to been disconnected for shipping.
  • Page 3: Mounting On A Mast

    Ultrasonic Wind Speed and Direction Smart Sensor (S-WCG-M003) Manual • Secure the sensor cable with cable clips or weather because it can generate upwards turbulence that will affect the sensor measurements. resistant cable ties to protect it from damage in the wind.
  • Page 4 Ultrasonic Wind Speed and Direction Smart Sensor (S-WCG-M003) Manual 5. Raise the sensor to the desired height on the mast. 5. Insert both bolt assemblies through the bottom of the mounting base and secure with finger-tightened lock nuts. 6. Use the wrench to tighten the hex nuts until the sensor is firmly fastened on the mast.
  • Page 5: Mounting On A Vertical Surface

    Ultrasonic Wind Speed and Direction Smart Sensor (S-WCG-M003) Manual 8. Follow the steps in North Alignment to make sure the 2. Clip the alignment tool on the sensor tube and slide it so sensor is pointed to true north. that it snaps into the dedicated slots. Do not tamper with the slots.
  • Page 6: Replacing The Battery

    Ultrasonic Wind Speed and Direction Smart Sensor (S-WCG-M003) Manual 4. Use the alignment tool to align the sensor so it is pointing Verifying Sensor Accuracy north. It is recommended that you check the accuracy of the sensor annually. The sensor cannot be calibrated. If the smart sensor is not providing accurate data, then it is damaged.
  • Page 7 Dispose of the battery according to local regulations for lithium batteries. © 2018 Onset Computer Corporation. All rights reserved. Onset, HOBO, HOBOware, and HOBOlink are 1-800-LOGGERS (564-4377) • 508-759-9500 trademarks or registered trademarks of Onset Computer Corporation. Some material reprinted with www.onsetcomp.com/support/contact...
