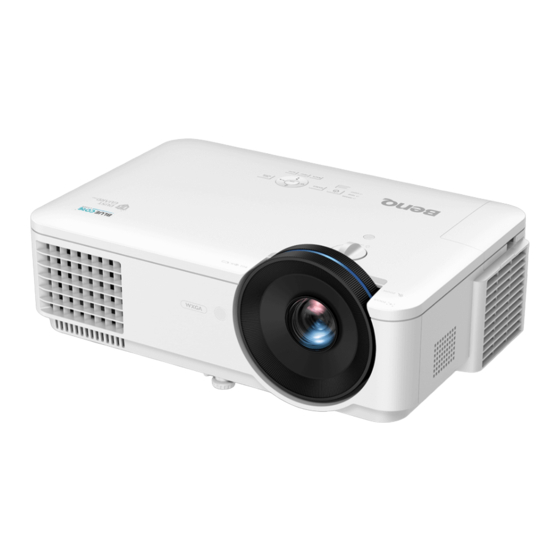

- Page 1 Digital Projector Quick Start Guide LX720 / LW720 / LH720...
-
Page 3: Cooling Notice
Notice To ensure safe use of this product, Please read the user manual for details before you operate your projector. Risk Group 2 Laser Caution According to the classification of (For China and other regions) This product belongs to CLASS 1 laser product and photobiological safety of light sources complies with IEC 60825-1 :2014. -
Page 4: Product Information
Product information Shipping contents... -
Page 5: Remote Control
Remote control VIDEO PC 1 SOURCE HDMI 1 NETWORK HDMI 2/MHL KEYSTONE / UP VOLUME - / LEFT VOLUME + / RIGHT KEYSTONE DOWN MENU BACK AUTO LASER FREEZE MUTE ECO BLANK QUICK INSTALL LIGHT MODE INFO ASPECT ZOOM+/ZOOM- PICTURE PAGE+/PAGE-... -
Page 6: Control Terminals
Control terminals... -
Page 7: Installation
Installation Projection dimensions LX720 4:3 Screen diagonal Screen Center of lens Offset Projection distance • The screen aspect ratio is 4:3 and the projected picture is in a 4:3 aspect ratio Screen size Projection distance (mm) Diagonal Min distance Max distance... - Page 8 LW720 16:10 Screen diagonal Screen Center of lens Offset Projection distance • The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio Screen size Projection distance (mm) Diagonal Min distance Max distance H (mm) W (mm) Average Inch...
- Page 9 All measurements are approximate and may vary from the actual sizes. • BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.
-
Page 10: Shifting The Projection Lens
Shifting the projection lens LX720 LW720 LH720 min. 0.15V 0.125V 0.16V max. 0.39V 0.25V 0.3V Calibrating LumiExpert When the LumiExpert is activated for the first time, follow the steps below to calibrate LumiExpert. - Page 11 Dimensions Projector dimensions 410 mm (W) x 158 mm (H) x 272 mm (D) Unit: mm Ceiling/Wall mount installation diagram Ceiling/Wall mount screw: M4 (Max L = 25 mm; Min L = 20 mm) 339.5 242.0 216.8 228.0 Unit: mm...
- Page 12 All specifications are subject to change without notice. Optical Input terminals Resolution Computer input 1024 x 768 XGA (LX720) RGB input 1280 x 800 WXGA (LW720) D-Sub 15-pin (female) x 2 1920 (H) x 1080 (V) (LH720) Video signal input...
- Page 14 BenQ.com © 2018 BenQ Corporation. All rights reserved. Rights of modification reserved. PND39-4000-00 P/N: 4J.JJF01.001...
