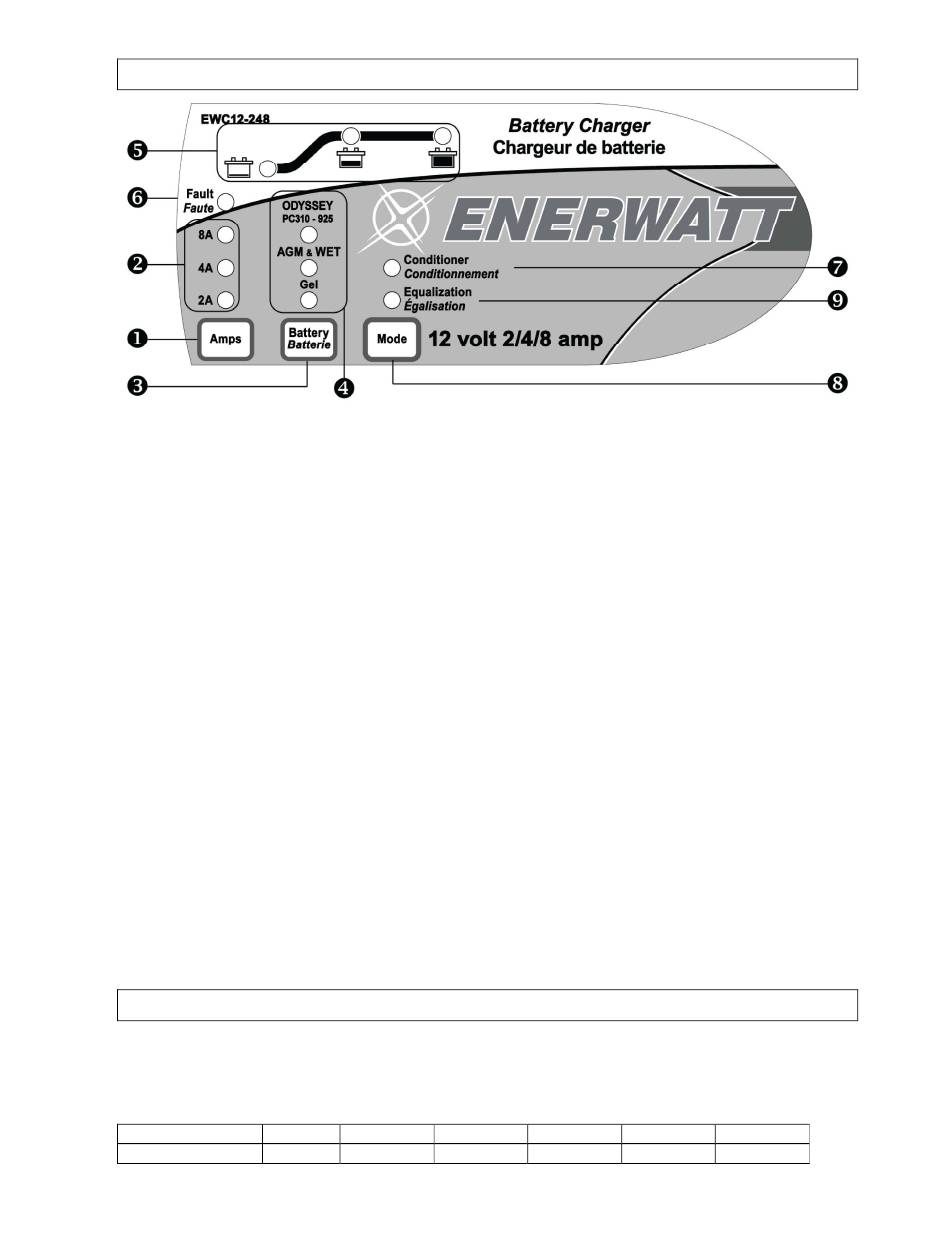

CONTROL AND INDICATORS

1. Charging Rate Selection Button
Press to Select the Current Charge Rate.
2. Charging Current LED Display
LED indicates the selected charging current (2A or 4A or 8A) (Model: EWC12-248)
LED indicates the selected charging current (2A or 10A or 21A) (Model: EWC12-21021)
3. Battery Type Selection Button
Press to select the Battery Type. (Odyssey 310-925/Pure lead, AGM/WET or GEL Batteries)
4. Battery Type LED Display
LED indicates the selected Battery Type.
5. Charging Status Display LED
Bulk LED – Blue: Indicates the charger is at a maximum charging rate.
Absorption LED – Green: Indicates that the Battery is approaching full charge.
Absorption LED – Blinking Green: Indicates equalisation stage for Odyssey 310-925/Pure lead,
AGM/WET Battery.
Full LED – Green: Indicates the Battery is fully charged.
6. Charging Fault LED Display
See trouble shooting for further details.
7. Conditioner Stage LED Display
Yellow Blinking LED Indicates the Rejuvenation Charge.
8. Equalisation / Rejuvenation Selection Button
Press this Button once to Select the Equalisation for extending the equalization time.
Press and hold this Button for 3 seconds to start the Rejuvenation Stage.
9. Equalisation Stage LED Display
Red LED on indicates the Equalisation Charge Stage

RECOMMENDED BATTERY CAPACITY

The following minimum AH capacities are to be used as a general guide only.
Some Batteries maybe able to handle a higher Charge Current;
Check with the Battery Manufacturer when charging Batteries with small capacity.
Charge Current 2A
Battery Capacity 6-40AH
702-000250-01
4A 8A
12-80AH 18-120AH
-2-
10A 16A
30-200AH 45-300AH
21A
60-400AH
