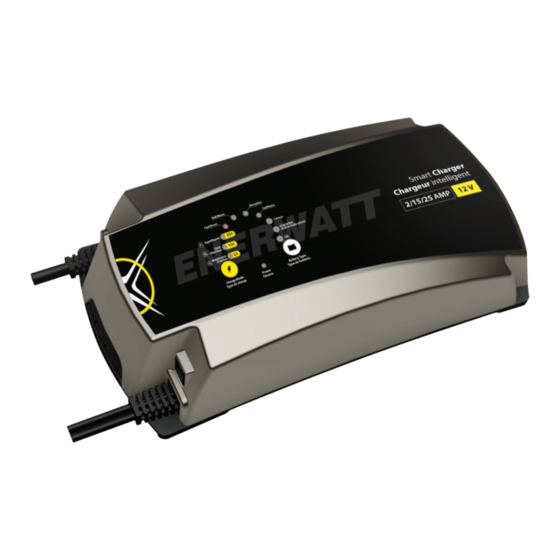

25amp 12volt battery charger plus battery maintainer and rejuvenator

Advertisement

Available languages

Available languages

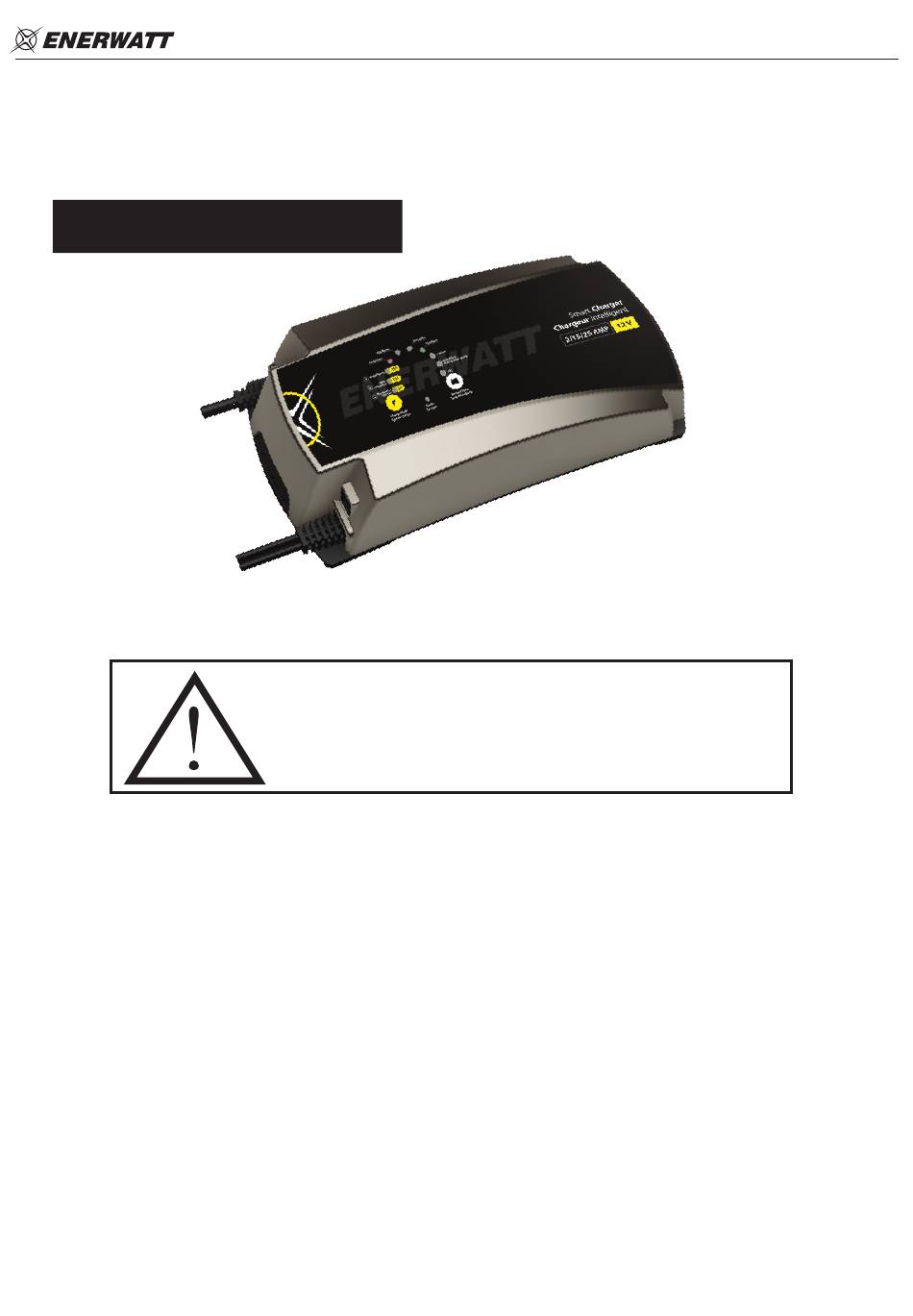

MODEL: EWC12-21525
USER'S MANUAL
OWNER'S MANUAL
25AMP 12VOLT BATTERY CHARGER
PLUS BATTERY MAINTAINER AND REJUVENATOR
Version française à la page
THIS MANUAL CONTAINS IMPORTANT SAFETY AND

OPERATING INSTRUCTIONS.

READ ENTIRE INSTRUCTIONS BEFORE USE.
WARNING
• The charger is designed to charge and maintain conventional lead-acid batteries only: (VRLA) AGM, Calcium, Gel and WET.
Not suited for Li-ion batteries.
• We always recommend that you check the battery manufacturer's specifications before using this charger.
• Explosive gases may escape from the battery during charging. Provide ventilation to prevent flames and sparks.
• For indoor use. Do not expose charger to rain, snow, or liquids.
• For charging lead-acid batteries ONLY (of the size and voltage indicated in the specifications table).
• Battery acid is corrosive. Rinse immediately with water if acid comes into contact with skin or eyes.
• The charger should be used on a flat surface.
• Never charge a frozen battery.
• Never charge a damaged battery.
• Never place the charger on the battery while charging.
• Be careful not to drop a metal tool on the battery. A spark or short circuit may cause an explosion.
• When working with a lead-acid battery, remove personal metal items such as rings, bracelets, necklaces, watches, etc.
• NEVER smoke, use an open flame, or create sparks near the battery or charger during charging operations.
• Do not charge non-rechargeable batteries.
• In order to reduce the risk of electric shock, unplug the charger from the AC outlet before doing any maintenance or cleaning.
Turning off the controls will reduce risk.
• The kit should not be used by children or by people who are not able to understand the manual, unless they are supervised
by a responsible person who ensures the proper use of the kit.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EWC12-21525 and is the answer not in the manual?

Questions and answers

Summary of Contents for Enerwatt EWC12-21525

  • Page 1: Operating Instructions

    MODEL: EWC12-21525 USER’S MANUAL OWNER’S MANUAL 25AMP 12VOLT BATTERY CHARGER PLUS BATTERY MAINTAINER AND REJUVENATOR Version française à la page THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS. READ ENTIRE INSTRUCTIONS BEFORE USE. WARNING • The charger is designed to charge and maintain conventional lead-acid batteries only: (VRLA) AGM, Calcium, Gel and WET.
  • Page 2: Temperature & Safety Protection

    MODEL: EWC12-21525 USER’S MANUAL MAIN FEATURES: Smart Charge plus Maintenance and Rejuvenation • Easy to operate and requires no technical experience • Fully microprocessor controlled • Battery condition check • Enhanced battery rejuvenation (patented technology) • Battery voltage retention analysis •...
  • Page 3: Battery Types & Capacity

    MODEL: EWC12-21525 USER’S MANUAL RAPID CHARGE / SILENT CHARGE (NIGHT MODE) AND MAINTENANCE Rapid/Rapide Rapid Charge Mode: Uses the rated maximum charging current to ensure the fastest Silent charging time. The unit’s fan will turn on to ensure a maximum charging current.
  • Page 4: Technical Specifications

    MODEL: EWC12-21525 USER’S MANUAL TECHNICAL SPECIFICATIONS Model Number EWC12-21525 Type Smart Input Voltage 100-120Vac Input Frequency 50/60Hz Output 2/15/25A @ 12V Start Voltage GEL-14.1V Charge Voltage AGM&WET-14.4V Calcium-14.7V GEL-14.3V Equalizing Voltage AGM&WET-14.6V Calcium-15.5V Float Voltage 13.2V Rejuvenation 16.0V / 0.5-1.0A Power Supply Output 13.8V...
  • Page 5: The Charging Process

    MODEL: EWC12-21525 USER’S MANUAL THE CHARGING PROCESS The charging stages and performance are as follows: ECO Mode If AC power is connected and the battery is disconnected, after 10 seconds the charger will automatically go into ECO mode. • The green LED flashes quickly to indicate ECO mode.
  • Page 6: Charging Curve

    MODEL: EWC12-21525 USER’S MANUAL THE CHARGING PROCESS (CONTINUED) Smart Charging Mode • Analysis Mode (Battery retention test mode) ƒ The charging is interrupted for a short period for a battery condition check. ƒ If the battery voltage falls too quickly, the battery is probably faulty.
  • Page 7 MODEL: EWC12-21525 USER’S MANUAL LED STATUS INDICATOR TABLE Bulk/Masse Absorption Fault/Erreur Full/Pleine Rapid/Rapide Calcium Silent AGM & Wet /Silencieux AGM et Acide-plomb Maintenance /Entretien Charge Mode Battery Type Power Type de charge Type de batterie Tension STATUS DESCRIPTIONS 1. Press to select the charge rate 2.
  • Page 8 MODÈLE : EWC12-21525 GUIDE D’UTILISATION GUIDE D'UTILISATION Chargeur de batterie 12 V - 25 A Avec fonctions de maintien de la tension et de reconditionnement CE GUIDE CONTIENT D’IMPORTANTES DIRECTIVES DE SÉCURITÉ ET DES INSTRUCTIONS D’UTILISATION. LIRE TOUTES LES INSTRUCTIONS AVANT D’UTILISER L’APPAREIL.
  • Page 9 MODÈLE : EWC12-21525 GUIDE D’UTILISATION CARACTÉRISTIQUES PRINCIPALES : Chargeur de batterie intelligent avec fonctions de maintien de la tension et de reconditionnement • Facile à utiliser sans expertise technique particulière. • Entièrement commandé par microprocesseur • Vérification de l’état de la batterie •...
  • Page 10: Caractéristiques Environnementales

    MODÈLE : EWC12-21525 GUIDE D’UTILISATION CHARGE RAPIDE / CHARGE SILENCIEUSE (MODE DE NUIT) ET CHARGE DE MAINTIEN Mode de charge rapide : Ce mode fournit l’intensité maximale de courant de charge Rapid/Rapide pour charger la batterie le plus rapidement possible. Le ventilateur de l’appareil se met en marche pour assurer l’obtention du courant de charge maximal.
  • Page 11: Caractéristiques Techniques

    MODÈLE : EWC12-21525 GUIDE D’UTILISATION CARACTÉRISTIQUES TECHNIQUES Numéro de modèle EWC12-21525 GEL : 14,3 V Type Intelligent Tension d’égalisation AGM et à l’électrolyte : 14,6 V Tension d’entrée 100 à 120 V c.a. Calcium : 15,5 V Fréquence d’entrée 50/60 Hz...
  • Page 12 MODÈLE : EWC12-21525 GUIDE D’UTILISATION Reconditionnement amélioré de la batterie Si le processus de vérification initial détermine que la batterie est en mauvais état, le processus de reconditionnement unique (breveté aux É.-U. et en Europe) s’active automatiquement. Durant la phase de reconditionnement, une charge d’égalisation à...
  • Page 13: Courbe De Charge

    MODÈLE : EWC12-21525 GUIDE D’UTILISATION PROCESSUS DE CHARGE (SUITE) ÉTAPE 4 – Déconnecter le chargeur de la batterie • Si la batterie est hors du véhicule : - Mettre le chargeur hors tension et le débrancher de la prise de courant c.a.
  • Page 14 MODÈLE : EWC12-21525 GUIDE D’UTILISATION TABLEAU DES ÉTATS INDIQUÉS PAR LES VOYANTS DEL Bulk/Masse Absorption Fault/Erreur Full/Pleine Rapid/Rapide Calcium Silent AGM & Wet /Silencieux AGM et Acide-plomb Maintenance /Entretien Charge Mode Battery Type Power Type de charge Type de batterie Tension ÉTAT...
