Enerwatt EWC12-1.5 User Manual

INPUT: 120V 50/60HZ OUTPUT: 12V 1.5A BATTERY CHARGER
IMPORTANT SAFETY INSTRUCTIONS: SAVE THESE INSTRUCTIONS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR
EWC12-1.5 - KEEP IT WITH OR NEAR CHARGER AT ALL TIMES.

1. WARNING

RISK OF EXPLOSIVE GASES WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. EXPLOSIVE GASES
DEVELOP DURING NORMAL BATTERY OPERATION. IT IS IMPORTANT THAT EACH TIME BEFORE USING YOUR
CHARGER, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
1.1 To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer
of any equipment you intend to use in vicinity of battery. Review cautionary marking on these products and on engine.
1.2 Do not expose charger to rain, snow, or liquids.
1.3 Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire,
electric shock, or injury to persons.
1.4 To reduce risk of electric shock, unplug charger from AC outlet before attempting any maintenance or cleaning.
1.5 To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charge
1.6 An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire
and electric shock. If extension cord must be used, make sure that pins on plug of extension cord are the same number, size
and shape as those of plug on charger and that the extension cord is properly wired and in good electrical condition
and that the wire size is large enough for A.C. ampere rating of charger as specified in the following table:
RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS
Length of cord (feet): 25 - 50 - 100 - 150
AWG size of cord: 16 - 16 - 16 - 14
1.7 If charger is equipped with an input power cord, do not operate charger with damaged cord or plug - replace the cord
or plug immediately.
1.8 Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way;
take it to a qualified serviceman.
1.9 Do not disassemble charger; take it to a qualified service center when service or repair is required.
Incorrect reassembly may result in a risk of electric shock or fire.
1.10 Appliances incorporating batteries which contain materials hazardous to the environment:
1.10.1 Batteries contain lead and dilute sulfuric acid. Dispose of the battery in accordance with federal, state and local regulations.
Do not dispose of the battery in a landfill, lake or other
1.10.2 Scrap and replace the VRLA battery at or before the time indicated on the battery or in the user's manual.
Usage beyond the required time of service can cause fluid leakage due to damages to the container,
or cause fire due to power leakage.
2. PERSONAL PRECAUTIONS
2.1 The kit is not supposed to be used by children or by people who are not able to understand the manual,
unless they are supervised by a responsible person who ensures the proper use of the kit.

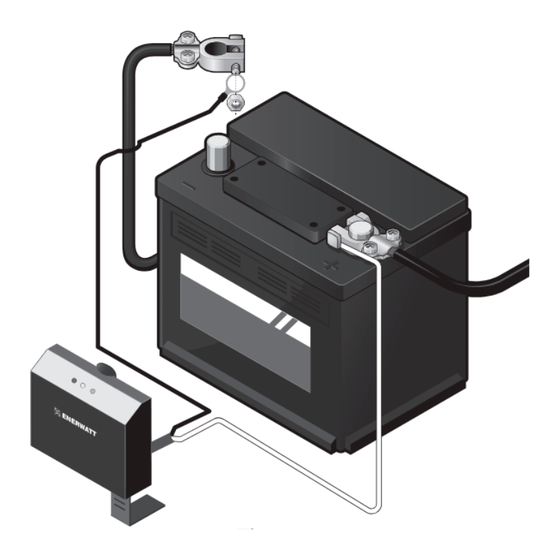

2.2 When the battery charger is charging for automobile batteries, the following steps should be done:
2.2.1 The battery terminal which is not connected to the chassis has to be connected first. The other connection is to be made
to the chassis, remote from the battery and fuel line. The battery charger is then to be connected to the supply mains.
2.2.2 After charging, disconnect the battery charger from supply mains, and then remove the chassis connection and the battery
connection, in this order.
2.3 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person
in order to avoid a hazard.
2.4 Someone should be within range of your voice or close enough to come to your aid when you work near a lead-acid battery.
Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing or eyes.
Wear complete eye and clothing protection. Avoid touching eyes while working near batteries.
2.5 If battery acid contacts skin or clothing, wash immediately with soap and water.
If acid enters eye, immediately flush eye with running cold water for at least 10 minutes
and get medical attention immediately.
2.6 NEVER smoke or allow a spark or flame in vicinity of battery or engine.
2.7 Be extra cautious to reduce risk of dropping a metal tool onto battery.
It might spark or short-circuit battery or other electrical part that may cause explosion.
Version française à la page
MODEL: EWC12-1.5
USER'S MANUAL
Lead-
AGM
Acid
1
