Enerwatt EWC612-1 User Manual

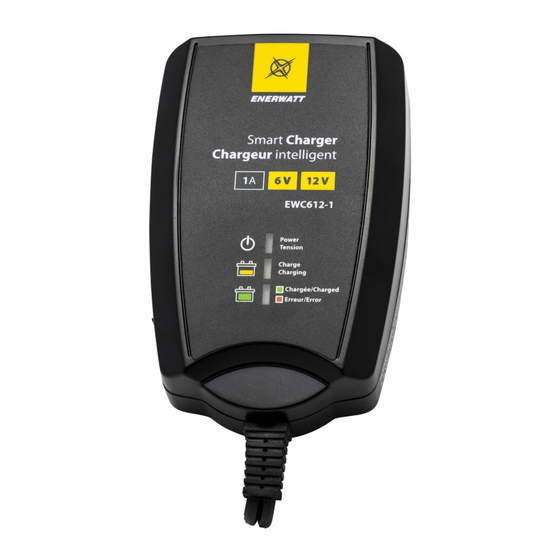

Plus battery maintainer and rejuvenator, for 6/12 volt lead-acid batteries
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

IMPORTANT SAFETY INSTRUCTION
1. WARNING
EXPLOSIVE GAS RISK. WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. EXPLOSIVE GASES DEVELOP DURING
NORMAL BATTERY OPERATION. IT IS IMPORTANT THAT YOU READ THIS MANUAL BEFORE USING YOUR CHARGER AND FOLLOW
THE INSTRUCTIONS EXACTLY EACH TIME YOU USE IT.
1.1 This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they are supervised or have been given instruction concerning the use of the
appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with
the appliance.
1.2 To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer
of any equipment you intend to use in vicinity of battery. Review cautionary marking on these products and on the engine.
1.3 Do not expose the charger to rain, snow, or liquids.
1.4 Use of an attachment not recommended or sold by the battery charger manufacturer may result in fire, electric shock
or personal injury.
1.5 To reduce the risk of electric shock, unplug the charger from the AC outlet before attempting any maintenance or cleaning.
1.6 To reduce the risk of damage to the electric plug and cord, pull at the plug rather than the cord when disconnecting the charger.
1.7 An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could result in fire
and electric shock. If an extension cord must be used, make sure that the pins on the plug of the extension cord are the same
number, size and shape as those of the plug on the charger. Also ensure that the extension cord is properly wired and in good
electrical condition and that the wire size is large enough for the AC ampere rating of the charger as specified in the following
table:
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS
Length of cord (feet):
AWG cord size:
USER MANUAL -
PLUS BATTERY MAINTAINER AND REJUVENATOR
25
16
SAVE THESE INSTRUCTIONS – THIS MANUAL CONTAINS
IMPORTANT SAFETY AND OPERATING INSTRUCTIONS
READ ENTIRE USER MANUAL BEFORE USE
BATTERY CHARGER
Version française à la page
BATTERY CHARGER
FOR 6/12 VOLT LEAD-ACID BATTERIES
MODEL NO.: 612-1
50
100
150
16
16
14
FOR BATTERY CHARGER 612-1
MODEL: EWC612-1
USER'S MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EWC612-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Enerwatt EWC612-1

Summary of Contents for Enerwatt EWC612-1

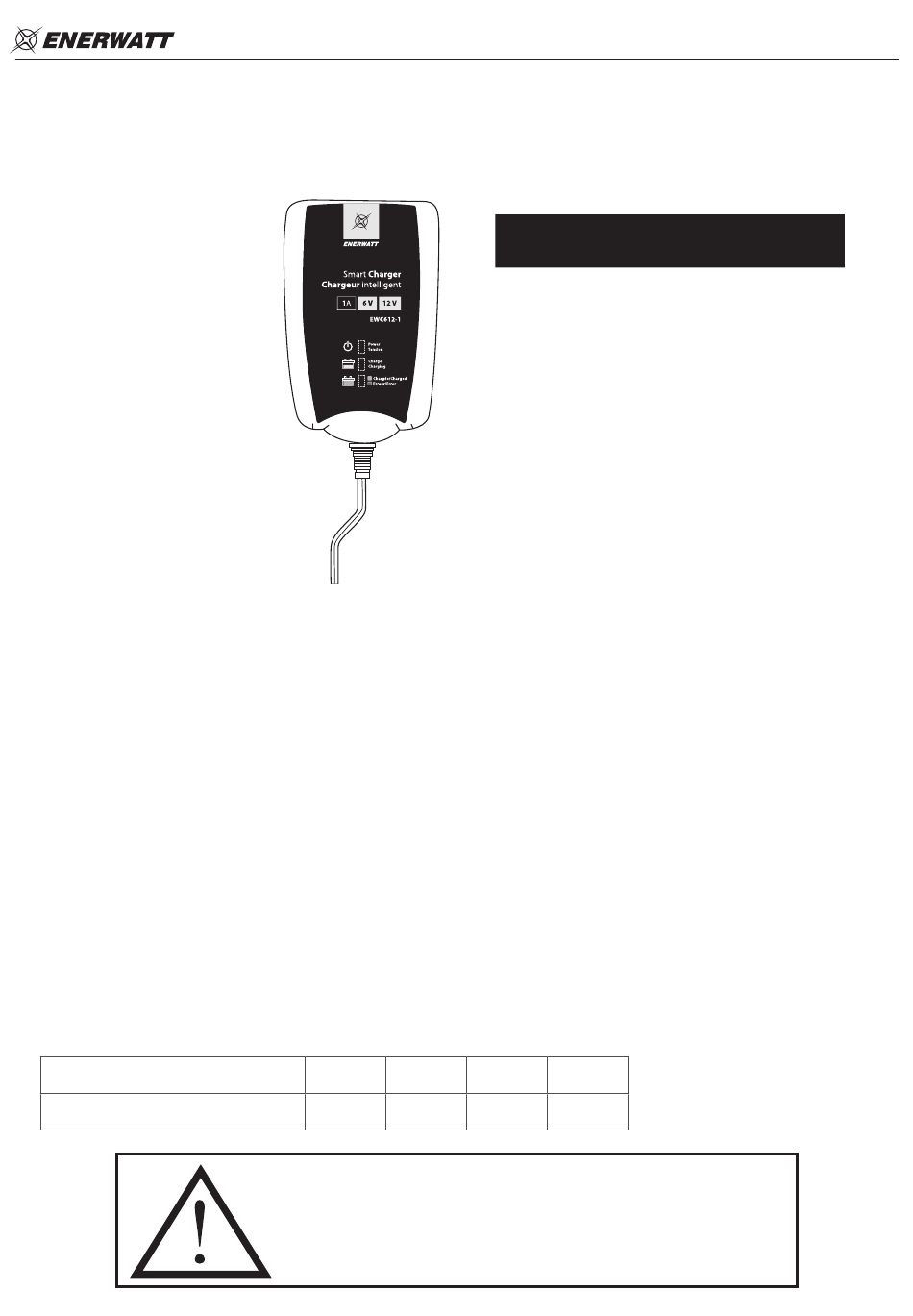

  • Page 1 MODEL: EWC612-1 USER’S MANUAL IMPORTANT SAFETY INSTRUCTION USER MANUAL - BATTERY CHARGER PLUS BATTERY MAINTAINER AND REJUVENATOR Version française à la page BATTERY CHARGER FOR 6/12 VOLT LEAD-ACID BATTERIES MODEL NO.: 612-1 1. WARNING EXPLOSIVE GAS RISK. WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. EXPLOSIVE GASES DEVELOP DURING NORMAL BATTERY OPERATION.

  • Page 2: Personal Precautions

    MODEL: EWC612-1 USER’S MANUAL 1. 1. WARNING (SUITE) 1.8 If the charger is equipped with an input power cord, do not operate the centercharger with a damaged cord or plug. Replace the cord or plug immediately. 1.9 Do not operate the charger if it has been sharply hit, dropped or otherwise damaged in any way.

  • Page 3: Charger Location

    MODEL: EWC612-1 USER’S MANUAL 4. CHARGER LOCATION 4.1 Place the charger as far away from the battery as the DC cables permit. 4.2 Never place the charger directly above the battery being charged. Gases from the battery will corrode and damage the charger.
  • Page 4 MODEL: EWC612-1 USER’S MANUAL 8. MAIN FEATURES: Automatic Switching Mode Battery Charger and Maintainer 8.1 Easy to use: The Battery Charger is easy to operate and requires no technical experience. 8.2 Charge and maintain – automatic charge: On power-up, the charger will automatically go to the charging system.

  • Page 5: Environmental Characteristics

    MODEL: EWC612-1 USER’S MANUAL 11. ENVIRONMENTAL CHARACTERISTICS: 11.1 Operating temperature: –10 to 45 °C 11.2 Storage temperature: –25 to 85 °C 11.3 Operating humidity range: 0% to 90% RH 11.4 Cooling: passive/natural Part number 612-1 12. TECHNICAL SPECIFICATIONS: Type Automatic...

  • Page 6: The Charging Process

    MODEL: EWC612-1 USER’S MANUAL 13. OPERATING INSTRUCTIONS (CONTINUED) b) If positively earthed, FIRST connect the black (-) battery charger lead to the negative (-) battery post and then connect the red (+) battery charger lead to the vehicle’s chassis and far away from the fuel line.

  • Page 7: Charging Curve

    MODEL: EWC612-1 USER’S MANUAL 16. LED STATUS INDICATOR TABLE STATUS DESCRIPTION Power LED Indicates AC power is ON Flashing Indicates AS power is ON and no Battery has been detected. ECO Mode. STATUS DESCRIPTION Charge LED Orange Flashing Fast Qualification and battery condition check...

  • Page 8: Troubleshooting

    MODEL: EWC612-1 USER’S MANUAL 18. TROUBLESHOOTING PROBLEM INDICATION POSSIBLE CAUSES SUGGESTED SOLUTION • Check AC connections ans make sure the AC Power No Indicator Point is seitched ON. Charger does not work? No AC power lights on • Try a different AC Power Point which you know is working.

  • Page 9: Importantes Directives De Sécurité

    MODÈLE : EWC612-1 GUIDE D’UTILISATION IMPORTANTES DIRECTIVES DE SÉCURITÉ GUIDE D’UTILISATION - CHARGEUR DE BATTERIE AVEC FONCTIONS DE MAINTIEN DE LA TENSION ET DE RECONDITIONNEMENT CHARGEUR DE BATTERIE POUR BATTERIES D’ACCUMULATEURS AU PLOMB DE 6/12 V MODÈLE Nº : 612-1 1.

  • Page 10: Mesures De Sécurité Personnelle

    MODÈLE : EWC612-1 GUIDE D’UTILISATION 1. AVERTISSEMENT (SUITE) 1.8 Si le chargeur est muni d’un cordon d’alimentation, ne pas utiliser le chargeur si la fiche ou le cordon sont endommagés. Remplacer le cordon ou la fiche immédiatement. 1.9 Ne pas utiliser le chargeur s’il a reçu un coup brusque, s’il est tombé au sol ou s’il a été endommagé de quelque façon que ce soit.

  • Page 11: Emplacement Du Chargeur

    MODÈLE : EWC612-1 GUIDE D’UTILISATION 4. EMPLACEMENT DU CHARGEUR 4.1 Positionner le chargeur aussi loin de la batterie que le cordon d’alimentation c.c. le permet. 4.2 Ne jamais placer le chargeur directement au-dessus d’une batterie pendant son chargement. Les gaz émanant de la batterie corroderont et endommageront le chargeur.

  • Page 12: Caractéristiques Principales

    MODÈLE : EWC612-1 GUIDE D’UTILISATION 8. CARACTÉRISTIQUES PRINCIPALES : Chargeur avec mode de maintien et système de commutation automatique 8.1 Facile à utiliser : Le chargeur de batterie est facile à utiliser et ne requiert pas d’expertise technique. 8.2 Charge et maintien – charge automatisée : Lorsqu’il est mis sous tension, le chargeur passe automatiquement en mode de charge.

  • Page 13: Caractéristiques Environnementales

    MODÈLE : EWC612-1 GUIDE D’UTILISATION 11. CARACTÉRISTIQUES ENVIRONNEMENTALES : 11.1 Température de fonctionnement : -10 à 45 °C 11.2 Température d’entreposage : -25 à 85 °C 11.3 Plage d’humidité de fonctionnement : Humidité relative de 0 à 90 % 11.4 Refroidissement : passif/naturel Numéro de pièce...

  • Page 14: Processus De Charge

    MODÈLE : EWC612-1 GUIDE D’UTILISATION 13. INSTRUCTIONS D’UTILISATION (SUITE) b) Mise à la masse positive – COMMENCER par connecter le câble noir (-) du chargeur à la borne de batterie négative (-), puis connecter le câble de charge rouge (+) au châssis du véhicule,...

  • Page 15: Courbe De Charge

    MODÈLE : EWC612-1 GUIDE D’UTILISATION 16. TABLEAU DES ÉTATS INDIQUÉS PAR LES VOYANTS DEL VOYANT ÉTAT DESCRIPTIONS Voyant Sous tension Rouge Allumé Indique que le chargeur est sous tension Rouge Clignote Indique que le chargeur est sous tension et qu’aucune batterie n’a été détectée. Mode ECO.

  • Page 16: Dépannage

    MODÈLE : EWC612-1 GUIDE D’UTILISATION 18. DÉPANNAGE CAUSES TYPES DE PROBLÈMES INDICATION SOLUTION SUGGÉRÉE POSSIBLES • Vérifier le branchement sur l’alimentation électrique Aucun voyant Pas d’alimentation et s’assurer que l’appareil est sous tension. Le chargeur ne fonctionne pas? allumé. électrique •...
