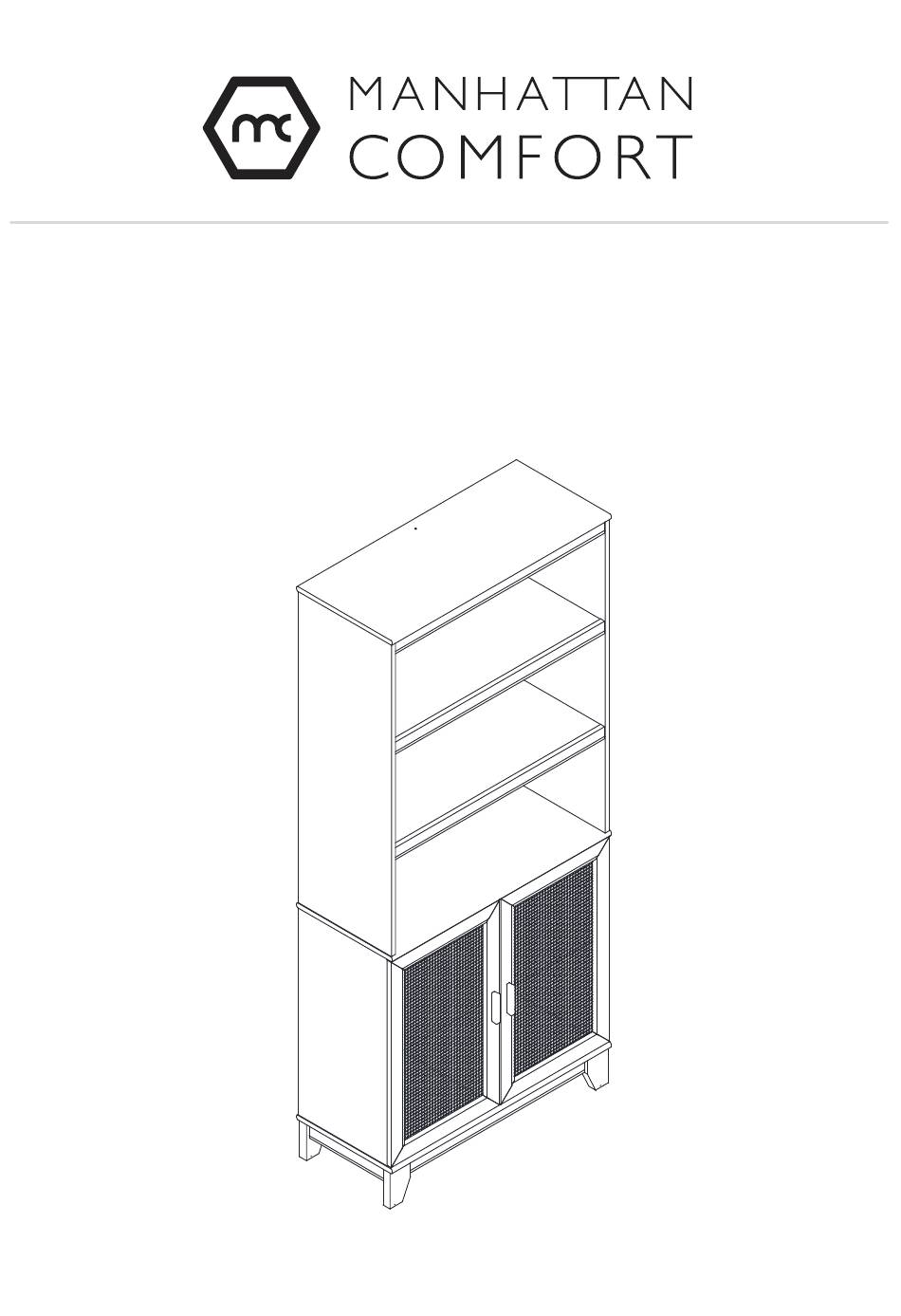

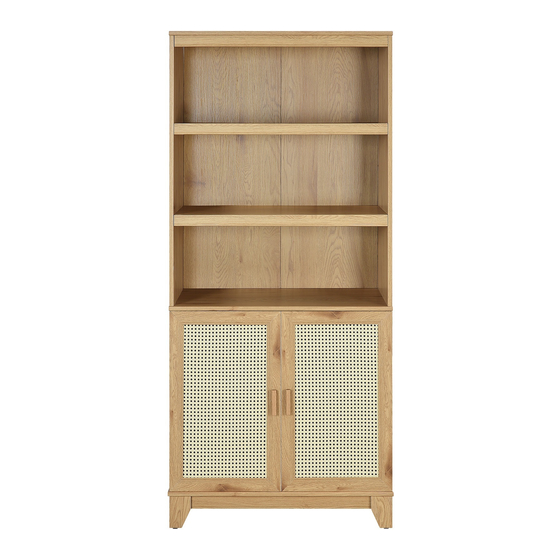

  • Page 1 Sheridan Bookcase Cabinet BC-6GLF V.11292022...

  • Page 2: For Best Results

    STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •...

  • Page 3: Included In This Package

    Included in this package: A. TOP(1) B. LARGE SHELF(1) C. UPPER LEFT END(1) D. UPPER RIGHT END(1) E. SHELF(2) F. UPPER LEFT BACK(1) G. UPPER RIGHT BACK(1) H. TOP MOLDING(1) J. SHELF MOLDING(2) K. LONG BRACE(2) L. SHORT BRACE(2) O. FOOT1(2) Y.

  • Page 4: Hardware Identification

    Hardware Identifi cation Page 4 BC-6GLF...

  • Page 5: Warranty Policy

    WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada.
  • Page 6 Step 1 Turn fifty CAM SCREWS (1) into the TOP (A), LARGE SHELF (B), ◆ ENDS (C, D, R and S), SHELF MOLDING (J), and the FEET (O and Y). Page 6 BC-6GLF...
  • Page 7 Step 2 ◆ Push fourteen HIDDEN CAMS (2) into the ENDS (C and D) and BACK (G and F). Page 7 BC-6GLF...
  • Page 8 Step 3 Push twelve HIDDEN CAMS (2) into the ENDS (R and S) and BACK (V and X). ◆ Page 8 BC-6GLF...
  • Page 9 Step 4 ◆ Push twenty-four HIDDEN CAMS (2) into the SHELF (E), UPRIGHT (T), TOP MOLDING (H) and SHORT BRACE (L) Page 9 BC-6GLF...
  • Page 10 Step 5 Fasten the UPPER LEFT BACK (F) to the UPPER LEFT END (C). Tighten two HIDDEN CAMS. ◆ Page 10 BC-6GLF...
  • Page 11 Step 6 Insert the WOOD DOWEL (8) into the SHELF (E). ◆ Fasten the SHELF MOLDING (J) to the SHELF (E). Tighten four HIDDEN CAMS. ◆ Page 11 BC-6GLF...
  • Page 12 Step 7 ◆ Fasten the SHELVES (E) to the UPPER LEFT END (C). Tighten four HIDDEN CAMS Page 12 BC-6GLF...
  • Page 13 Step 8 Insert three WOOD DOWELS (8) into the UPPER LEFT BACK. ◆ Attached the UPPER RIGHT BACK (G) to the UPPER LEFT BACK (F). ◆ Page 13 BC-6GLF...
  • Page 14 Step 9 Fasten the UPPER RIGHT END (D) to the SHELVES (E) and the UPPER RIGHT BACK (G). ◆ Tighten six HIDDEN CAMS. Page 14 BC-6GLF...
  • Page 15 Step 10 Insert four WOOD DOWELS (8) into the UPPER BACKS (G and F) and the UPPER ENDS (C and D). ◆ Fasten the LARGE SHELF (B) to the UPPER BACKS (G and F) and the UPPER ENDS (C and D). ◆...
  • Page 16 Step 11 Insert one WOOD DOWEL (8) into the TOP (A). ◆ Fasten the TOP MOLDING (H) to the TOP (A). Tighten two HIDDEN CAMS. ◆ Page 16 BC-6GLF...
  • Page 17 Step 12 Fasten the TOP (A) to the UPPER ENDS (C and D) and the UPPER BACK (F and G). ◆ Tighten eight HIDDEN CAMS. Page 17 BC-6GLF...
  • Page 18 Step 13 ◆ Fasten two LOWER LEFT BACK (V) to the LOWER LEFT END (R). Tighten two HIDDEN CAMS. Page 18 BC-6GLF...
  • Page 19 Step 14 ◆ Fasten the LOWER RIGHT BACK to the LOWER RIGHT END (S). Tighten two HIDDEN CAMS. Page 19 BC-6GLF...
  • Page 20 Step 15 ◆ Fasten the LOWER LEFT END (R) and the LOWER LEFT BACK (V) to the LARGE SHELF (B). Tighten two HIDDEN CAMS. NOTE : Please tighten two HIDDEN CAMS in the LOWER LEFT BACK (V) after yout stand your unit upright on step 23. Page 20 BC-6GLF...
  • Page 21 Step 16 Fasten the LOWER RIGHT END (S) and the LOWER RIHGHT BACK (X) to the LARGE SHELF (B). ◆ Tighten four HIDDEN CAMS. NOTE : Please tighten two HIDDEN CAMS in the LOWER RIGHT BACK (X) after yout stand your unit upright on step 23. Page 21 BC-6GLF...
  • Page 22 Step 17 ◆ Fasten the UPRIGHT (T) to the LARGE SHELF (B). Tighten two HIDDEN CAMS. BC-6GLF Page 22...
  • Page 23 Step 18 Insert five WOOD DOWELS (8) into the LOWER BACKS (V and X), LOWER ENDS (R and S) and the UPRIGHT (T). ◆ Fasten the BOTTOM (Q) to the LOWER BACKS (V and X), LOWER ENDS (R and S) and the UPRIGHT (T). ◆...
  • Page 24 Step 19 Fasten four METAL PLATES (4) to the FEET (O and Y) and the LONG BRACES (K). ◆ Use sixteen PAN HEAD SCREWS (16) BC-6GLF Page 24...
  • Page 25 Step 20 Fasten eight BRACKETS (7) to the LONG BRACES (K) and the SHORT BRACES (L). ◆ Use eight PAN HEAD SCREWS (16) Page 25 BC-6GLF...
  • Page 26 Step 21 ◆ Faten two SHORT BRACES (L) to the FEET (Y and O). Tighten eight HIDDEN CAMS BC-6GLF Page 26...
  • Page 27 Step 22 ◆ Fasten the BASE to the BOTTOM (Q). Use eight PAN HEAD SCREWS (16). Page 27 BC-6GLF...
  • Page 28 Step 23 Carefully stand your unit upright. ◆ Tighten four HIDDEN CAMS in the LOWER BACKS (X and V). ◆ BC-6GLF Page 28...
  • Page 29 Step 24 Insert eight METAL PINS (5) into the hole locations of your choice in the ENDS (R and S) and UPRIGHT (T). ◆ Set the ADJUSTABLE SHELVES (U) onto the METAL PINS (5) ◆ Page 29 BC-6GLF...
  • Page 30 Step 25 ◆ Fasten the HINGE (11) to the DOORS (AA and Z). Use eight FLAT HEAD SCREWS (15). Fasten the PULLS (6) to the DOORS (AA and Z). Use four PAN HEAD SCREWS (14) ◆ BC-6GLF Page 30...
  • Page 31 Step 26 Fasten the DOOR (AA and Z) to the ENDS (R and S). Use sixteen FLAT ◆ HEAD SCREWS (15) through the round holes in each HINGE. Peel the BUMPERS from the BUMPER CARDS (10) and ◆ stick them onto the edges of the SHELVES (U) Page 31 BC-6GLF...
  • Page 32 Step 27 Place your unit in its final location. ◆ The following instructions show your unit being fastened to a wall stud. If you are fastening your unit to a wall stud, go to the next step now. 1st- With your pencil, strike a mark through the center of the hole in the SAFETY STRAP. ◆...
  • Page 33 Step 28 Place your unit in its final location. ◆ 1st - Locate the center of a stud in your wall near your unit and mark it with a pencil just below the top surface of your unit so the SAFETY STRAP will not be visible. 2nd- Drill a 1/8"...
  • Page 34 Step 29 ◆ Peel APPLIQUES from the APPLIQUE CARDS (3) and stick them onto each visible HIDDEN CAM. BC-6GLF Page 34...
  • Page 35 Step 30 Page 35 BC-6GLF...
