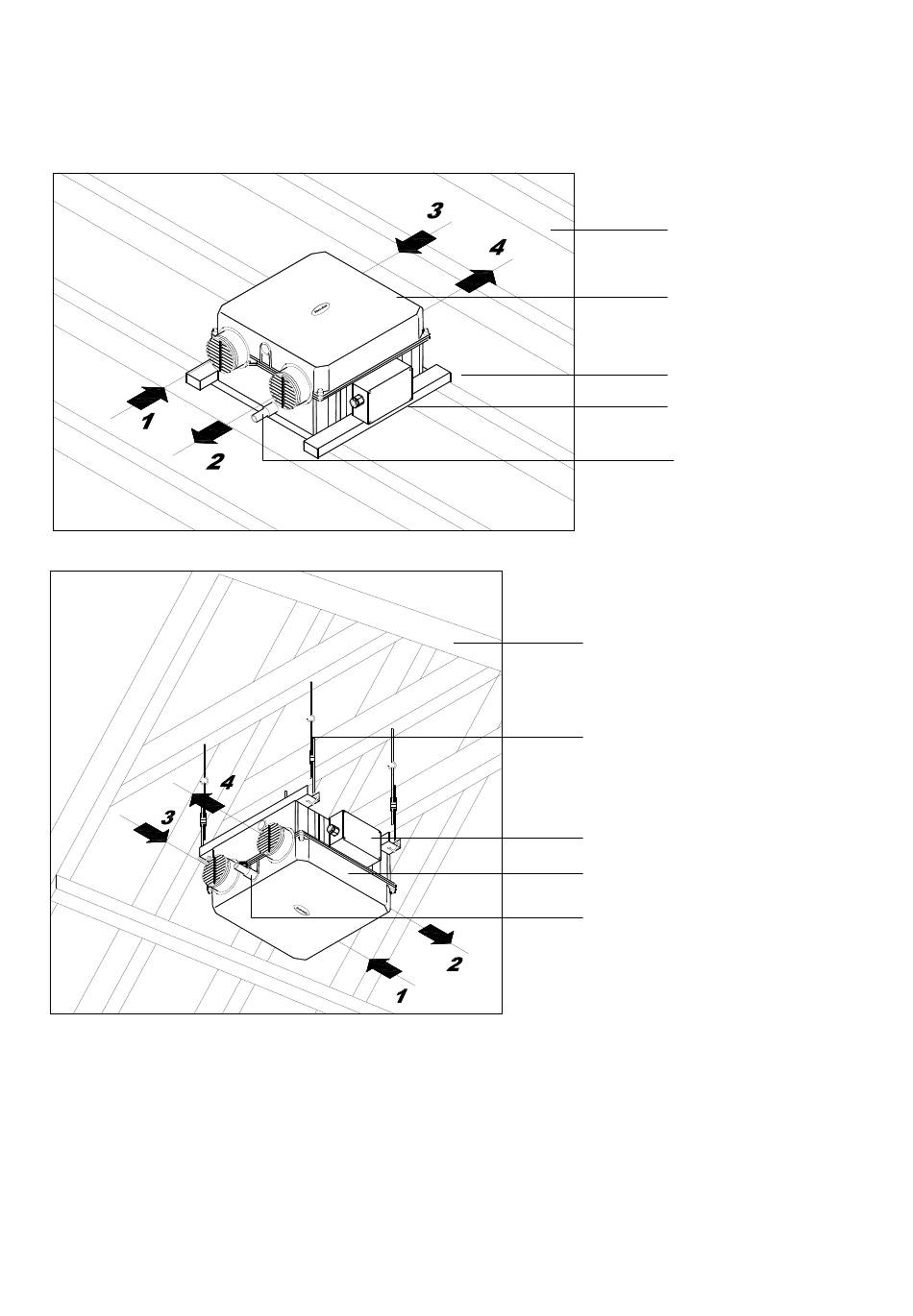

MOUNTING OPTIONS
Fig. 1a.
MOUNTED ON JOISTS
Fig. 1b.
SUSPENDED FROM RAFTERS
RAFTERS
STRAP-HANGERS
MAINS TERMINAL BOX
INTEGRA
CONDENSATION DRAIN
(THE UNIT SHOULD SLOPE
DOWNWARDS BY 2° TOWARDS
THE CONDENSATE DRAIN)
4
JOIST
INTEGRA
.
50 x 25 BATTEN
MAINS TERMINAL BOX
CONDENSATION DRAIN
(THE UNIT SHOULD SLOPE
DOWNWARDS BY 2° TOWARDS
THE CONDENSATE DRAIN)
