© Air ow
1.09.600E
17.6.2013
1

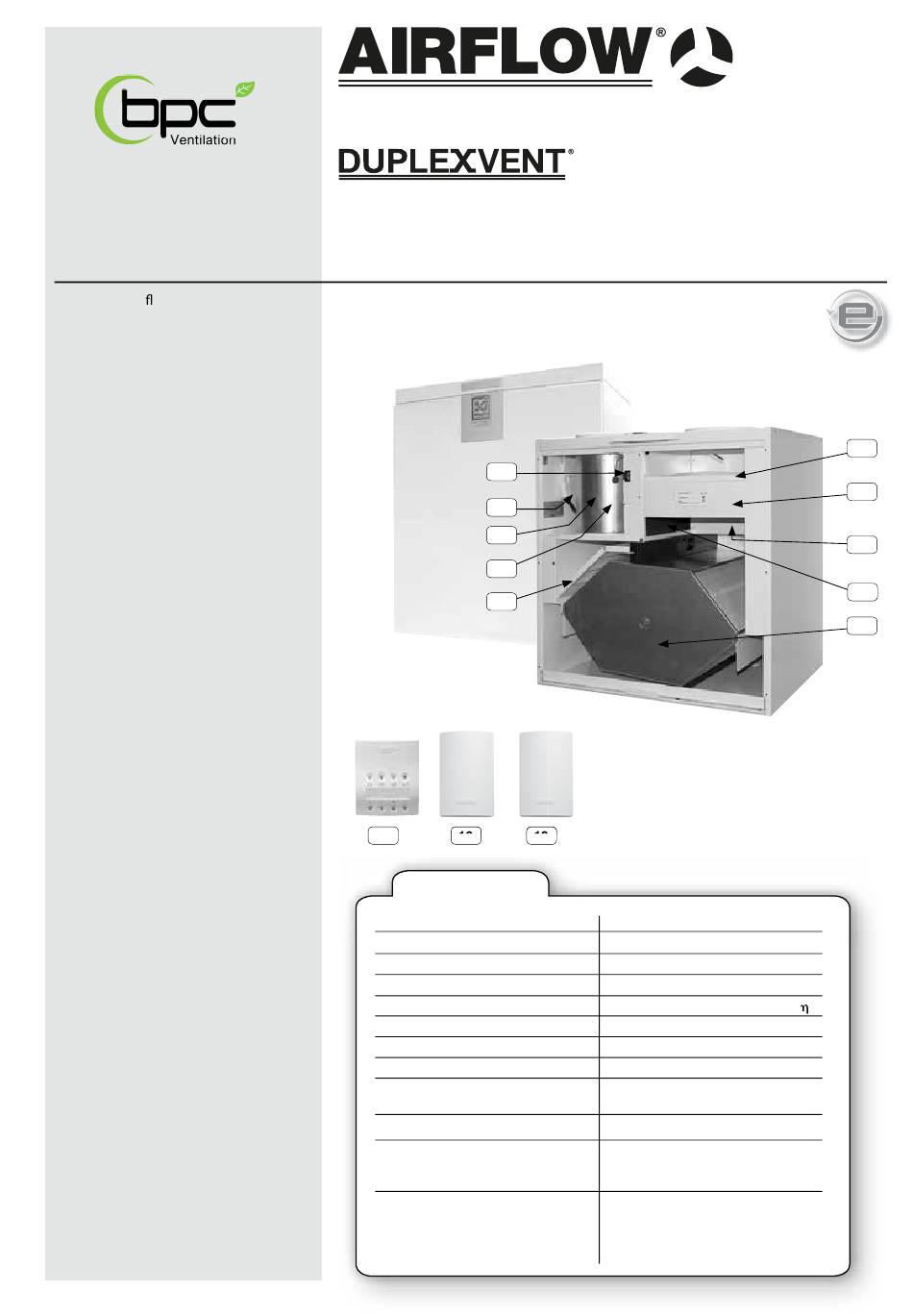

Extract air fan
(behind protective cover)
2
Supply air fan
(behind extract air duct)
3
Outdoor air fi lter F7
4
Heat recovery cell
5
Summer/winter damper
6
Outdoor air fi lter G4
7
Extract air fi lter G4
8
Post-heating radiator
(behind extract air duct)
9
Safety switch
10 Additional heating radiator
(behind extract air duct)
11 Control panel DIGIT SED
12 Carbon dioxide sensor
13 Humidity sensor
Low-energy ventilation unit with heat recovery
and demand-controlled automatic melting
Operating, maintenance and
technical instructions
9
8
2
10
7
11
12
13
TECHNICAL DATA
Electrical connection
Degree of protection provided by enclosures
Fans
Extract air
direct current (DC)
Supply air
Heat recovery
Heat recovery bypass
Electric post-heating unit (standard)
Additional heater
Fans
Supply air
Extract air
Weight (with packaging)
Ventilation power adjustment
Options
DV145SE
The fi gure shows the R model
230 V, 50 Hz,
11.9 A (plug)
≈
IP34
150 dm
/s 100 Pa
3
140 dm
/s 100 Pa
3
Cross-counter flow heat recovery cell, > 80%
Automatic
900 W, 3.9 A
1500 W, 6.5 A
G4 and F7
G4
88 kg
- control panel control
CO
and %RH control
-
2
- remote monitoring control (voltage signal)
- CO
sensor
2
- %RH sensor
- Insulated attic fl oor penetration plate
Base
-
6
3
1
5
4
