ASSEMBLY TEMPLATE

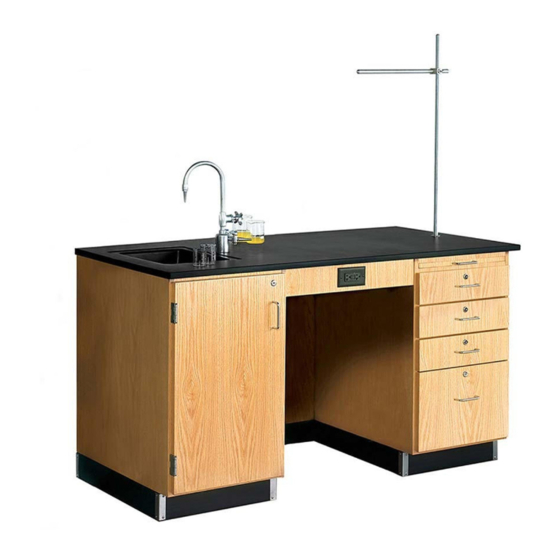

5' INSTRUCTOR DESK
1214K-L, 1214K-R, 1214KF-L, 1214KF-R, 1216K-L, 1216K-R, 1216KF-L & 1216KF-R SERIES
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\DIVERSIFIED\ASSEMBLY INSTRUCTIONS\ACAD\1214K & KF, 1216K & KF SERIES.dwg, 12/2/2016 11:42:13 AM,
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
11/9/16
REV.
DESCRIPTION
DATE
NAME
REVISION LEVEL
DWN
DWN
11/9/16
EMK
BY:
DATE:
APR
DATE
BY:
APR:
APR
DATE
BY:
APR:
UNLESS OTHERWISE SPECIFIED
DIMENSION ARE IN INCHES
TITLE:
5' INSTRUCTOR DESK
ASSEMBLY INSTRUCTIONS
EMK
-
THIS DRAWING IS THE SOLE PROPERTY OF
DRAWING NUMBER:
DIVERSIFIED WOOD CRAFTS. IT MAY NOT
ECN NO.
BE ALTERED OR CHANGED WITHOUT
1214K & KF, 1216K & KF
PERMISSION
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 7
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS 1214K-L Series
Summary of Contents for DIVERSIFIED WOODCRAFTS 1214K-L Series
- Page 1 ASSEMBLY TEMPLATE 5' INSTRUCTOR DESK 1214K-L, 1214K-R, 1214KF-L, 1214KF-R, 1216K-L, 1216K-R, 1216KF-L & 1216KF-R SERIES ASSEMBLY INSTRUCTIONS 11/9/16 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE:...
-
Page 2: Tools Required
ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION CONTACT CEMENT TOP, (STYLE VARIES), 1.00X30X60,BLK, VARIES SCREW DRIVER (EITHER FIXTURE OR FLAT) C-CLAMPS CABINET B98 OR B97 - 18"W X 35"H X 26.25"D SHIM STOCK (IF NEEDED) CABINET B26 - 18"W X 35"H X 26.25"D BACK PANEL... - Page 3 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART DESCRIPTION **ROD SOCKET** 206505 ROD SOCKET ASSY,SOCKET,WASHER,NUT **CROSSBAR** 100005 ROD,CROSSBAR DIA.X18 L **UPRIGHT** 100004 ROD,UPRIGHT DIA.X36 L **CLAMP** 100002 ROD CLAMP ASSY NOTE: 11/9/16 DATE: 300 South Krueger Street DATE APR: Suring, WI 54174 TOPS ARE EITHER PHENOLIC OR EPOXY.
- Page 4 ASSEMBLY TEMPLATE B97 OR B98 CABINET TOP MOUNTING CLEAT - TYPICAL ATTACH BACK PANEL TO TOP AND BOTTOM MOUNTING CLEATS FROM INSIDE OF BOTH CABINETS APRON (BOTTOM MOUNTING CLEATS NOT SHOWN) B26 CABINET BACK PANEL ATTACH L BRACKETS TO APRON FIRST THEN ATTACH TO SIDES OF CABINETS IN DESIRED LOCATION 22.00"...
- Page 5 ASSEMBLY TEMPLATE MULTI-SERVICE FIXTURE APPLY SILICONE ADHESIVE TO APPLY SILICONE ADHESIVE TOP EDGES OF CABINETS HERE FOR SINK AND APRON SOCKET APPLY RUBBER MOLDING HERE TOP VIEW OF INSTRUCTOR'S DESK SHOWN TOP VIEW OF INSTRUCTOR'S DESK SHOWN COMPLETE UNIT SHOWN STEP 6: STEP 5: STEP 4:...
- Page 6 ASSEMBLY TEMPLATE CROSSBAR CROSSBAR THUMB SCREW UPRIGHT UPRIGHT CLAMP ROD SOCKET CLOSE UP OF UPRIGHT COMPLETE UNIT SHOWN STEP 1: STEP 2: STEP 3: INSERT TAPERED END OF THE UPRIGHT INTO ROD SLIDE ROD CLAMP OVER THE SLIDE CROSSBAR THROUGH THE CLAMP. SOCKET ON THE TOP.
- Page 7 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
