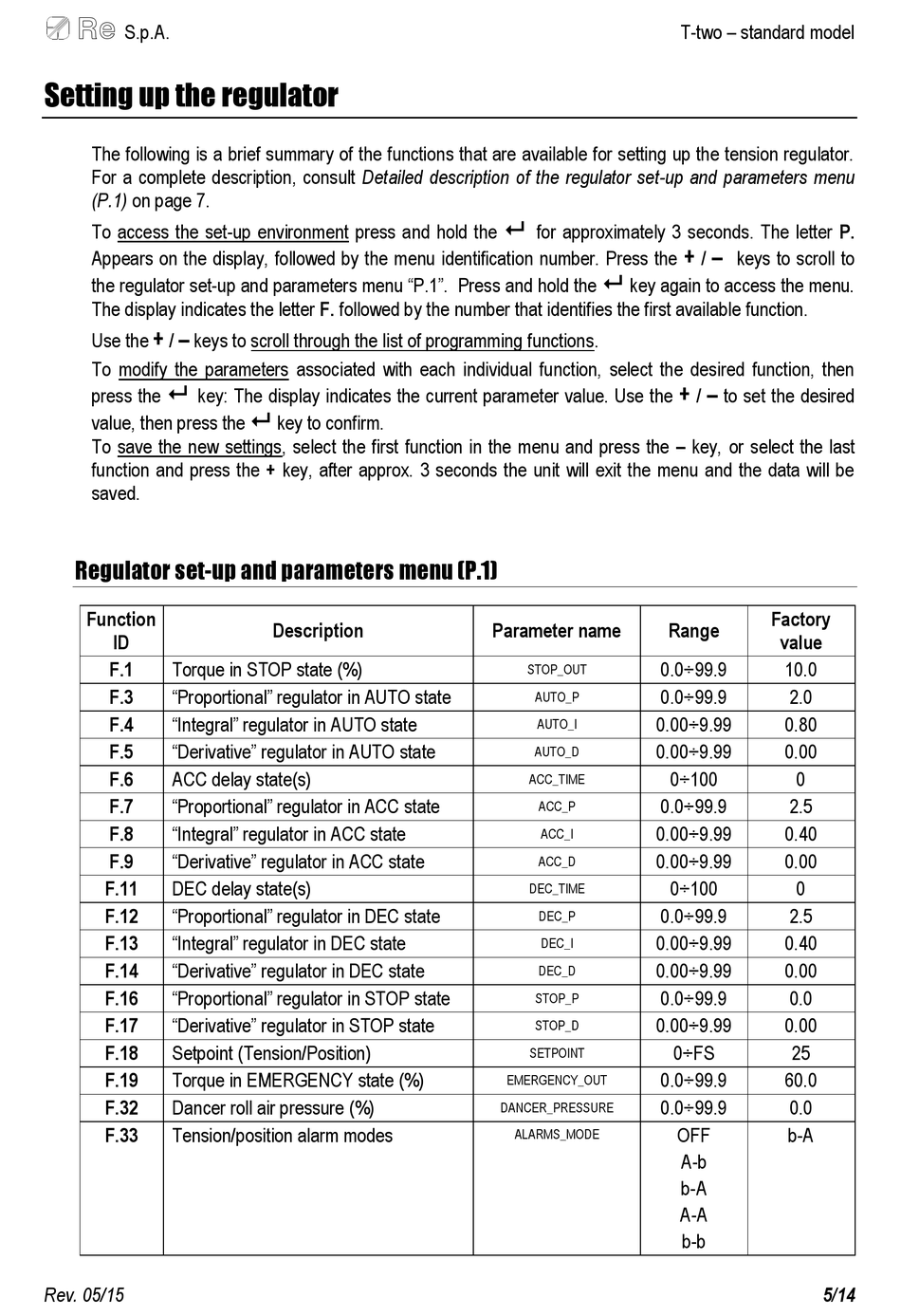

Setting up the regulator

The following is a brief summary of the functions that are available for setting up the tension regulator.
For a complete description, consult Detailed description of the regulator set-up and parameters menu
(P.1) on page 7.
To access the set-up environment press and hold the
Appears on the display, followed by the menu identification number. Press the
the regulator set-up and parameters menu "P.1". Press and hold the
The display indicates the letter F. followed by the number that identifies the first available function.
+ –
Use the / keys to scroll through the list of programming functions.
To modify the parameters associated with each individual function, select the desired function, then

press the key: The display indicates the current parameter value. Use the
value, then press the
To save the new settings, select the first function in the menu and press the – key, or select the last
function and press the + key, after approx. 3 seconds the unit will exit the menu and the data will be
saved.
Regulator set-up and parameters menu (P.1)
Function
ID
F.1 Torque in STOP state (%)
F.3 "Proportional" regulator in AUTO state
F.4 "Integral" regulator in AUTO state
F.5 "Derivative" regulator in AUTO state
F.6 ACC delay state(s)
F.7 "Proportional" regulator in ACC state
F.8 "Integral" regulator in ACC state
F.9 "Derivative" regulator in ACC state
F.11 DEC delay state(s)
F.12 "Proportional" regulator in DEC state
F.13 "Integral" regulator in DEC state
F.14 "Derivative" regulator in DEC state
F.16 "Proportional" regulator in STOP state
F.17 "Derivative" regulator in STOP state
F.18 Setpoint (Tension/Position)
F.19 Torque in EMERGENCY state (%)
F.32 Dancer roll air pressure (%)
F.33 Tension/position alarm modes
Rev. 05/15

key to confirm.
Description

for approximately 3 seconds. The letter P.

key again to access the menu.
Parameter name
0.0÷99.9
STOP_OUT
0.0÷99.9
AUTO_P
0.00÷9.99
AUTO_I
0.00÷9.99
AUTO_D
ACC_TIME
0.0÷99.9
ACC_P
0.00÷9.99
ACC_I
0.00÷9.99
ACC_D
DEC_TIME
0.0÷99.9
DEC_P
0.00÷9.99
DEC_I
0.00÷9.99
DEC_D
0.0÷99.9
STOP_P
0.00÷9.99
STOP_D
SETPOINT
0.0÷99.9
EMERGENCY_OUT
0.0÷99.9
DANCER_PRESSURE
ALARMS_MODE
T-two – standard model
+ –
/ keys to scroll to
+ –
/ to set the desired
Factory
Range
value
10.0
2.0
0.80
0.00
0÷100 0
2.5
0.40
0.00
0÷100 0
2.5
0.40
0.00
0.0
0.00
0÷FS 25
60.0
0.0
OFF b-A
A-b
b-A
A-A
b-b
