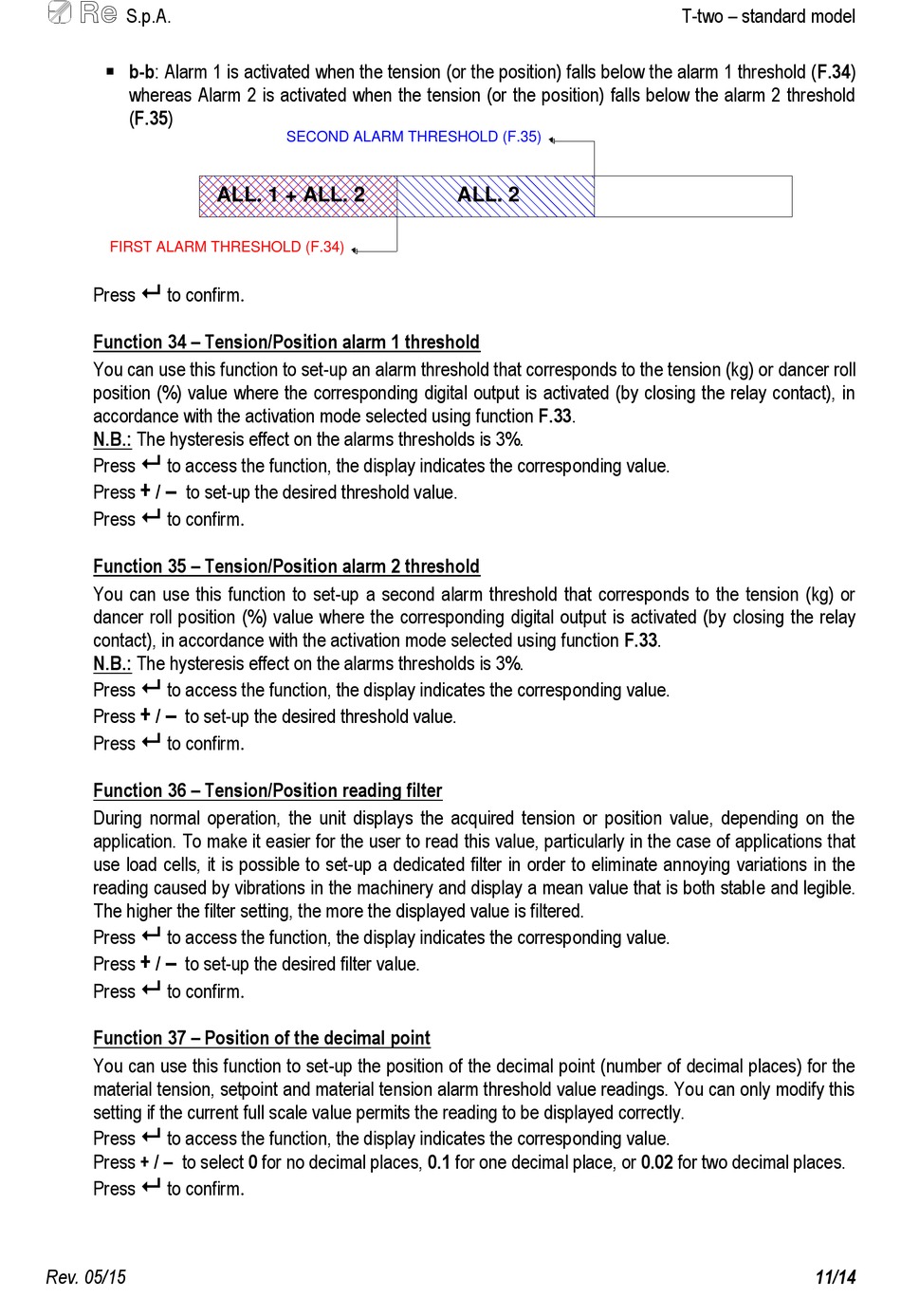

Function 34 - Tension/Position Alarm 1 Threshold; Function 35 - Tension/Position Alarm 2 Threshold; Function 36 - Tension/Position Reading Filter; Function 37 - Position Of The Decimal Point - Re T-two User Manual

Re
S.p.A.
 b-b: Alarm 1 is activated when the tension (or the position) falls below the alarm 1 threshold (F.34)
whereas Alarm 2 is activated when the tension (or the position) falls below the alarm 2 threshold
(F.35)
FIRST ALARM THRESHOLD (F.34)

Press to confirm.
Function 34 – Tension/Position alarm 1 threshold
You can use this function to set-up an alarm threshold that corresponds to the tension (kg) or dancer roll
position (%) value where the corresponding digital output is activated (by closing the relay contact), in
accordance with the activation mode selected using function F.33.
N.B.: The hysteresis effect on the alarms thresholds is 3%.

Press to access the function, the display indicates the corresponding value.
+ –
Press / to set-up the desired threshold value.

Press to confirm.
Function 35 – Tension/Position alarm 2 threshold
You can use this function to set-up a second alarm threshold that corresponds to the tension (kg) or
dancer roll position (%) value where the corresponding digital output is activated (by closing the relay
contact), in accordance with the activation mode selected using function F.33.
N.B.: The hysteresis effect on the alarms thresholds is 3%.

Press to access the function, the display indicates the corresponding value.
+ –
Press / to set-up the desired threshold value.

Press to confirm.
Function 36 – Tension/Position reading filter
During normal operation, the unit displays the acquired tension or position value, depending on the
application. To make it easier for the user to read this value, particularly in the case of applications that
use load cells, it is possible to set-up a dedicated filter in order to eliminate annoying variations in the
reading caused by vibrations in the machinery and display a mean value that is both stable and legible.
The higher the filter setting, the more the displayed value is filtered.

Press to access the function, the display indicates the corresponding value.
+ –
Press / to set-up the desired filter value.

Press to confirm.
Function 37 – Position of the decimal point
You can use this function to set-up the position of the decimal point (number of decimal places) for the
material tension, setpoint and material tension alarm threshold value readings. You can only modify this
setting if the current full scale value permits the reading to be displayed correctly.

Press to access the function, the display indicates the corresponding value.
Press + / – to select 0 for no decimal places, 0.1 for one decimal place, or 0.02 for two decimal places.

Press to confirm.
Rev. 05/15
SECOND ALARM THRESHOLD (F.35)
ALL. 1 + ALL. 2
ALL. 1 ALL. 1 + ALL. 2
FIRST ALARM THRESHOLD (F.34)
ALL. 2
T-two – standard model
11/14
