dedicated remote command as described in Remote control of the states by PLC on page 4.



Press

to access the function, the display indicates the corresponding value.

Press + / – to set-up the desired torque value, expressed as a percentage.



Press

to confirm.

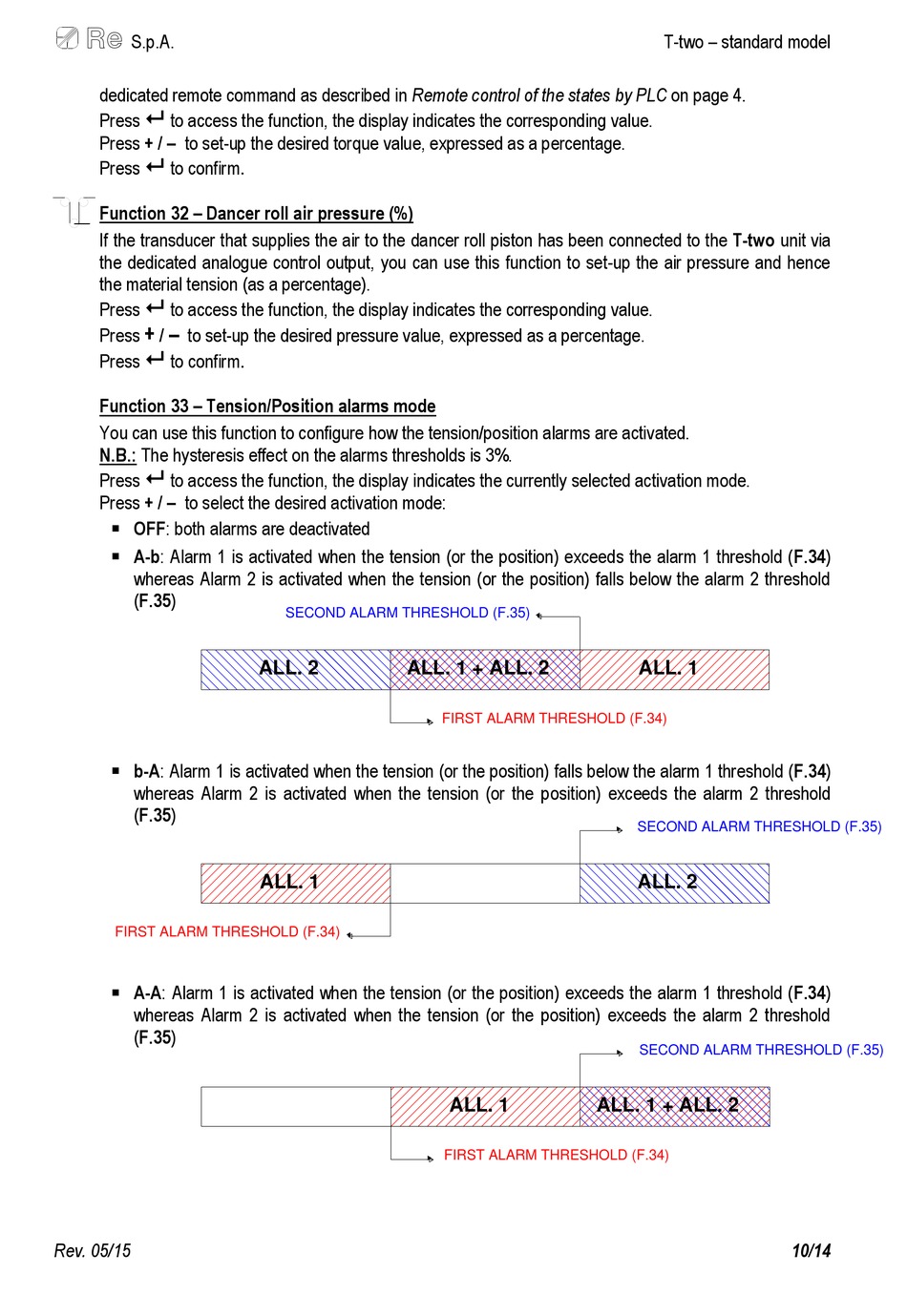

Function 32 – Dancer roll air pressure (%)

If the transducer that supplies the air to the dancer roll piston has been connected to the T-two unit via

the dedicated analogue control output, you can use this function to set-up the air pressure and hence

the material tension (as a percentage).



Press

to access the function, the display indicates the corresponding value.

–

Press

to set-up the desired pressure value, expressed as a percentage.



Press

to confirm.

Function 33 – Tension/Position alarms mode

You can use this function to configure how the tension/position alarms are activated.

N.B.: The hysteresis effect on the alarms thresholds is 3%.



Press

to access the function, the display indicates the currently selected activation mode.

Press + / – to select the desired activation mode:

 OFF: both alarms are deactivated

 A-b: Alarm 1 is activated when the tension (or the position) exceeds the alarm 1 threshold (F.34)

whereas Alarm 2 is activated when the tension (or the position) falls below the alarm 2 threshold

(F.35)

 b-A: Alarm 1 is activated when the tension (or the position) falls below the alarm 1 threshold (F.34)

whereas Alarm 2 is activated when the tension (or the position) exceeds the alarm 2 threshold

(F.35)

FIRST ALARM THRESHOLD (F.34)

 A-A: Alarm 1 is activated when the tension (or the position) exceeds the alarm 1 threshold (F.34)

whereas Alarm 2 is activated when the tension (or the position) exceeds the alarm 2 threshold

(F.35)

Rev. 05/15

ALL. 1 + ALL. 2

FIRST ALARM THRESHOLD (F.34)

SECOND ALARM THRESHOLD (F.35)

ALL. 2

ALL. 1 + ALL. 2

SECOND ALARM THRESHOLD (F.35)

ALL. 2

ALL. 1 + ALL. 2

ALL. 2

ALL. 1 + ALL. 2

ALL. 1

SECOND ALARM THRESHOLD (F.35)

FIRST ALARM THRESHOLD (F.34)

ALL. 1

ALL. 1 + ALL. 2

ALL. 1

ALL. 1 + ALL. 2

FIRST ALARM THRESHOLD (F.34)

ALL. 1

ALL. 1 + ALL. 2

FIRST ALARM THRESHOLD (F.34)

ALL. 2

T-two – standard model

ALL. 1

SECOND ALARM THRESHOLD (F.35)

ALL. 2

SECOND ALARM THRESHOLD (F.35)

ALL. 2

SECOND ALARM THRESHOLD (F.35)
