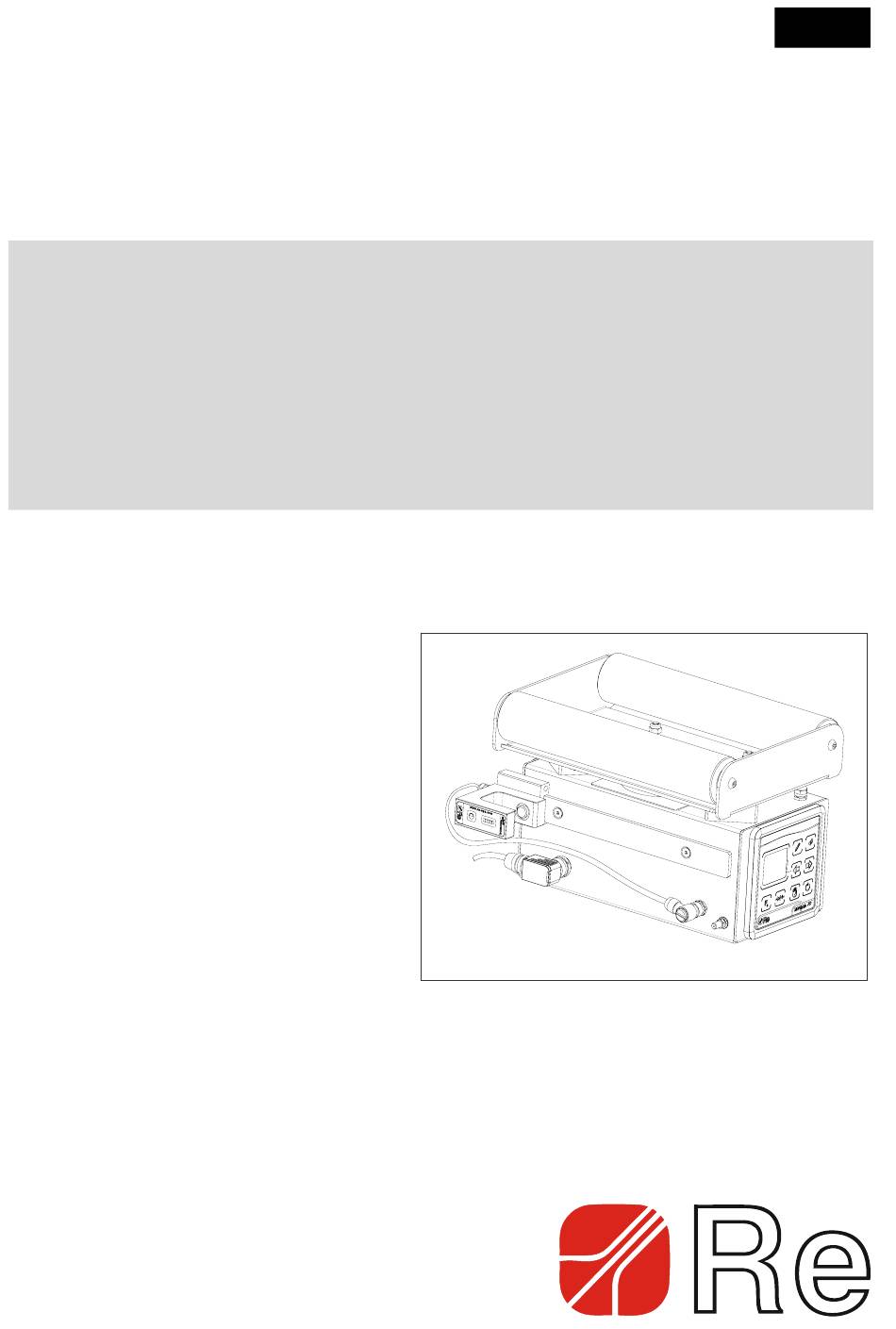

- Page 1 .E N G WG251 SKB-C RESMART Webguide system for MWG10 INSTALLATION, USE AND MAINTENANCE MANUAL Original instructions...
-
Page 3: Table Of Contents
Handling instructions........................1 Safety notes ..........................1 Assembling the webguide on the end machine ................2 Electrical connections........................5 Sensor positioning ........................7 What is WG251 SKB-C RESMART ....................8 Device functioning........................9 General..............................9 Fast start up ............................14 Calibration .............................. 15 Programming and calibration funcions ....................16 F.1 - Motor speed ............................ -
Page 4: Warnings
The plant builder may include the present manual in the documentation for plant use. Re S.p.A. reserves the right to update its production and/or manuals without updating products already sold and previous manuals. -
Page 5: Assembling The Webguide On The End Machine
S.p.A. WG251 SKB-C RESMART Assembling the webguide on the end machine To assemble the webguide wear safety gloves and boots and observe all the safety norms required for the environment in which it is installed. 1) Fit the SU m-25 sensor on the webguide sensor holder bar:... - Page 6 S.p.A. WG251 SKB-C RESMART Application without a micrometer bar Fit the slide onto the sensor holder bar so that the sensor is in the required position according to where the material will run. Tighten the knob located under the sensor.
- Page 7 S.p.A. WG251 SKB-C RESMART WG251 SKB-C RESMART right 27.5 The material flow direction is from left to right, as indicated by the arrow on the frame of the webguide WG251 SKB-C RESMART left 27.5 The material flow direction is from right to left, as...
-
Page 8: Electrical Connections
S.p.A. WG251 SKB-C RESMART Electrical connections Sensor connector Power supply connector + remote contacts Connector Description Electrical characteristics Wire colour POWER SUPPLY + 24Vdc, 2,5A POWER SUPPLY - 0Vdc Black ALARM F.C. 24Vdc Open Collector Violet 22/11/12 5/25... - Page 9 S.p.A. WG251 SKB-C RESMART Attention! To ensure this instrument functions correctly, wait for at least 5 seconds between switching it off and switching it on again. Important! Use shielded power supply cables only, and connect the shield to the earth point located on the MWG10 unit.
-
Page 10: Sensor Positioning
S.p.A. WG251 SKB-C RESMART Sensor positioning Caution! When calibrating or using the webguide, if you need to adjust the position of the sensor we strongly advise you to make the adjustment when the webguide and the material are NOT moving! A pplication with a micrometer bar Move the sensor by turning the micrometer bar knob until the required position is reached. -
Page 11: What Is Wg251 Skb-C Resmart
WG251 SKB-C RESMART What is WG251 SKB-C RESMART WG251 SKB-C RESMART is a webguide edge regulation system, consisting of a driver MWG10 and an ultrasound sensor SU m-25. The MWG10 control interface, with its simple, easy-to-use graphic display, enables the user to execute the regulation procedure and set up the webguide system operating parameters. -
Page 12: Device Functioning
S.p.A. WG251 SKB-C RESMART Device functioning General The front panel is fitted with a colour graphic display, that displays information on the operating status of the instrument. Name Function Direct access to a menu function. servo center Enables and disables the actuator Servo Center . - Page 13 S.p.A. WG251 SKB-C RESMART OPERATING WINDOW (GREEN): the window is normally displayed; it displays the parameters managed during the adjustment and the operating status of the web guide system. It is used to change the set point and to move the actuator manually.
- Page 14 S.p.A. WG251 SKB-C RESMART Press the write key to confirm the value set on the set point and go back to the operating window. Attention! After about a minute of inactivity the set point change is disabled automatically, and it goes back to the operating window.
- Page 15 S.p.A. WG251 SKB-C RESMART FUNCTIONS MENU WINDOW (ORANGE): this window is used to access the functions and set the operating parameters, perform the calibration and reset the system. Enables/disables the Selected function Value of the selected function change to the function...
- Page 16 S.p.A. WG251 SKB-C RESMART ACCESS PASSWORD If the password has been set in the F.90, as soon as you access the functions menu window you must enter the password (the display shows the white padlock icon). Press the + or – keys to increase or decrease the value of the password that you want to enter.
-
Page 17: Fast Start Up
More explanations on the functioning of the single functions are detailed in the following part of the manual. Note: Re spa furnishes the instrument already calibrated, ready for the start up procedure. 1. Mount the SU m-25 sensor on the webguide and secure mechanically the webguide to the machinery, as described on pages 2-3. -
Page 18: Calibration
S.p.A. WG251 SKB-C RESMART Calibration Keep the enter key pressed for a few seconds to access the functions menu window. Scroll the functions with the + key, until you reach the F.50. Press the write key to enter the F.50 function and start the calibration. -
Page 19: Programming And Calibration Funcions
S.p.A. WG251 SKB-C RESMART Programming and calibration funcions This section describes the programming and calibration functions available for the WG251 SKB-C RESMART regulator Funct. Description Range of values Default settings Motor speed 1÷95 if F.32=0 1÷120 if F.32=1 Dead zone 0÷Z... - Page 20 S.p.A. WG251 SKB-C RESMART Keep the enter key pressed for a few seconds to access the functions menu window (the function number will be displayed in white, now you can scroll the functions with the + or – keys). Use the enter key to exit the menu.
- Page 21 S.p.A. WG251 SKB-C RESMART F.1 - Motor speed This function is used to increase or decrease the actuator motor speed when the device is in AUTO mode. Range: 1÷95 if F.32=0, 1÷120 if F.32=1 If the set value is from 1 to 95, the motor works at 1/16 of step. If the set value is from 96 to 120, the motor works at 1/4 of step.
- Page 22 S.p.A. WG251 SKB-C RESMART (Functions that can be associated to the F key: all except F.50, F.51, F.52 and F.90) Range: 0=Off: F key is not active, 1=On: F key is active. Default value: 1=On F.10 - Servo Center offset This function is enabled only if the system is in MAN status and it is used to change the stop position of the Servo Center.
-
Page 23: Enable Complete
S.p.A. WG251 SKB-C RESMART Range: 1= enable sensor 1 enable sensor 2 enable both sensors (centre guide) Default value: 1=Sensor 1 ( F.21 - Sensor 1 field of view This function is used to set the sensor 1 field of view. -
Page 24: Complete Servo Center
S.p.A. WG251 SKB-C RESMART Calibrate the sensor: remove the material from the sensor and wait for the display to show the maximum value (acceptable maximum value: between 4.5 and 5.0); insert the material in the sensor and wait for the display to show the minimum value (acceptable minimum value: at least 1V less than the maximum value). -
Page 25: Reset Mwg10
S.p.A. WG251 SKB-C RESMART F.91 - Reset MWG10 This function resets all the adjustment parameters of the MWG10 device to the default values. It also cancels the custom calibration of the device. Access the F.91 function: Keep the enter key pressed for a few seconds to access the functions menu window. -
Page 26: Technical Specifications
Response time of the sensor: 3,5msec Maintenance Caution! Before performing any operation on the WG251 SKB-C RESMART whatsoever, turn the voltage supply off. To ensure that the webguid WG251 SKB-C RESMART operates efficiently: check the condition of the cables regularly;... -
Page 27: Information About Device Recovery
For correct waste management, the relevant authorities promote the reduction of final waste disposal by means of re-use, recycling and other forms of recovery to obtain raw materials from waste. In the event of illegal disposal of WEEE, offenders will be punished in accordance with the sanctions established by the member state in which it was installed. -
Page 28: Guarantee
WG251 SKB-C RESMART Guarantee Re S.p.A. guarantees this device against all defects relative to the materials and manufacturing for a period of 12 months from the date of delivery. Should your device develop operating faults during the guarantee period, please contact the Company’s agent in your country, or, if this is not possible, contact Re S.p.A. - Page 32 Re S.p.A. Controlli Industriali Via Firenze, 3 – 20060 BUSSERO (MI) ITALY Fax (+39) 02 95 03 89 86 Technical support: Tel. (+39) 02 95 24 30.300 - E-mail: support@re-spa.com Sales support: Tel. (+39) 02 95 24 30.200 - E-mail: sales@re-spa.com www.re-spa.com...
