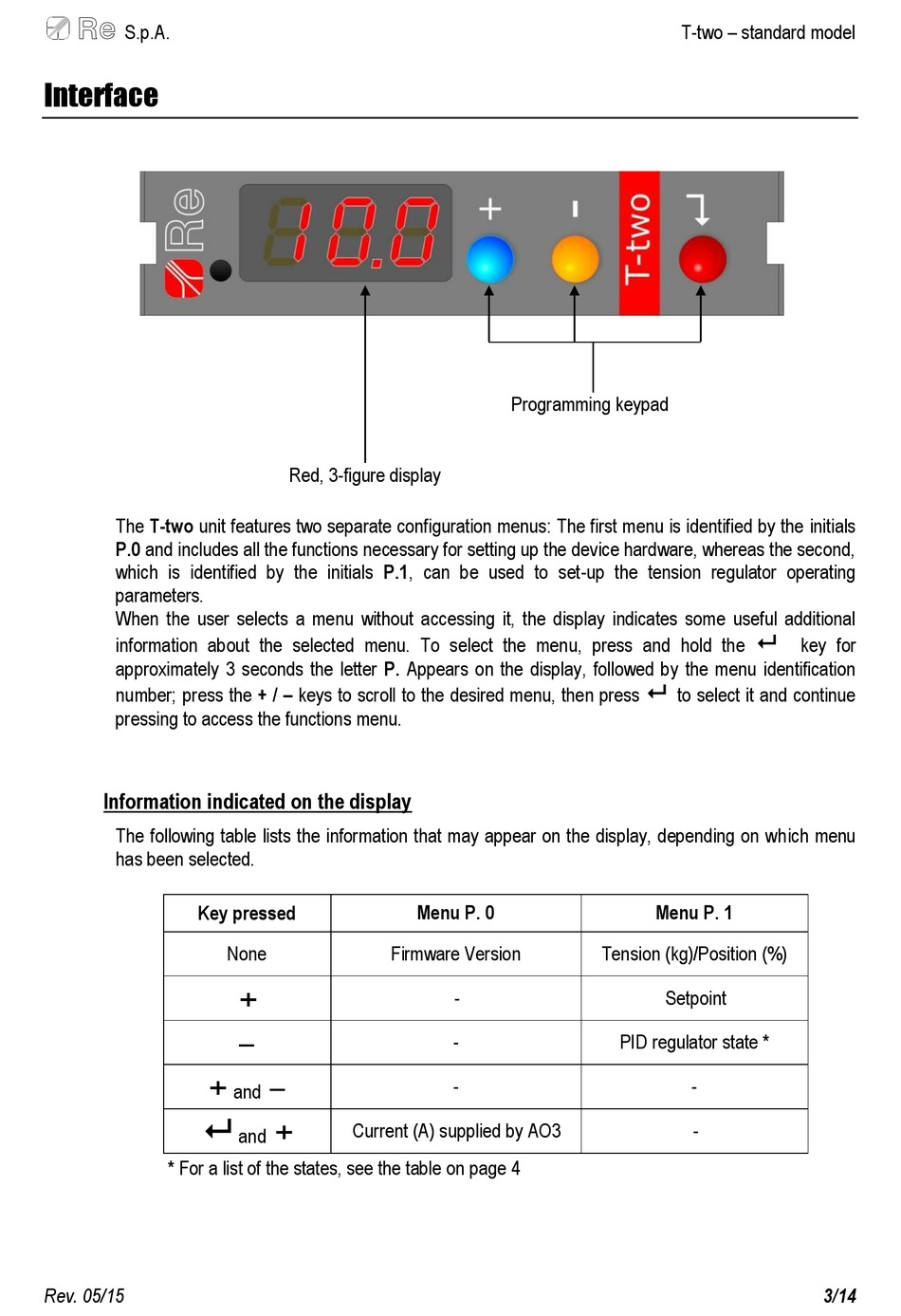

Interface

The T-two unit features two separate configuration menus: The first menu is identified by the initials
P.0 and includes all the functions necessary for setting up the device hardware, whereas the second,
which is identified by the initials P.1, can be used to set-up the tension regulator operating
parameters.
When the user selects a menu without accessing it, the display indicates some useful additional
information about the selected menu. To select the menu, press and hold the
approximately 3 seconds the letter P. Appears on the display, followed by the menu identification
number; press the + / – keys to scroll to the desired menu, then press
pressing to access the functions menu.
Information indicated on the display
The following table lists the information that may appear on the display, depending on which menu
has been selected.
Key pressed
+

* For a list of the states, see the table on page 4
Rev. 05/15
Red, 3-figure display
None Firmware Version
+
–
–
and
+
Current (A) supplied by AO3
and
Programming keypad
Menu P. 0
-
-
-
T-two – standard model


to select it and continue
Menu P. 1
Tension (kg)/Position (%)
Setpoint
PID regulator state *
-
-
key for
3/14
