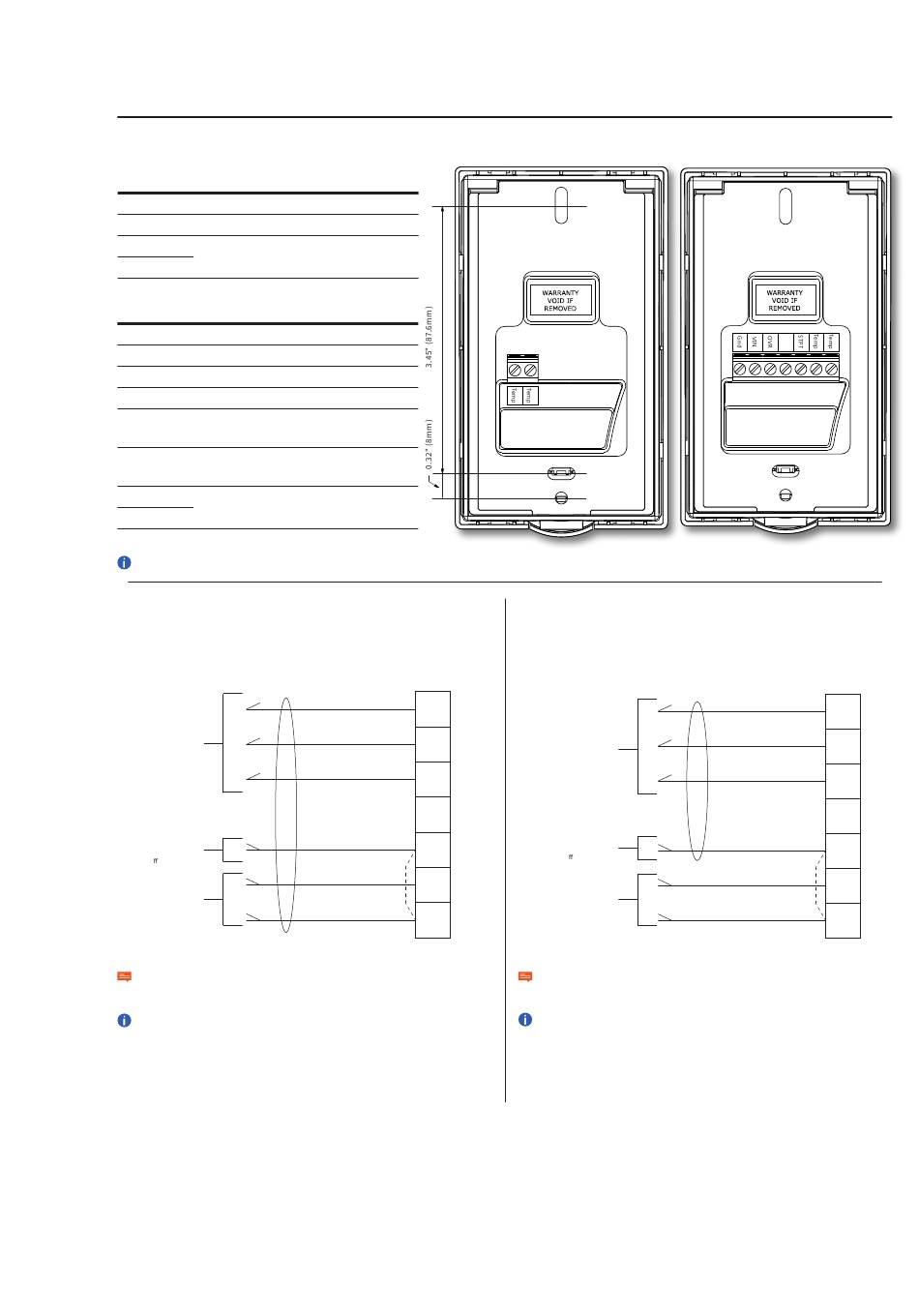

Innotech SENW51 Manual page 5

SENW51 Detector
CONNECTOR INFORMATION
Connector Description
Temp
Temperature Sensor (Isolated)
Temp
SENW58x Detector
CONNECTOR INFORMATION
Connector Description
Gnd Power Common / Neutral
VIN + Power 24VDC or 24VAC ±10%
Override Input
OVR
(10VDC = Occupied, 0VDC = Unoccupied)
Setpoint Output
STPT
0 to 10VDC (Ref. to GND Common)
Temp
Temperature Sensor (Isolated)
Temp
Maximum terminal cable entry is 2.5mm² (stranded conductor).
SENW58x Connection Diagram - 24VDC
To Controller
Inputs
From Controller
Output
(0VDC=o , 10VDC=on)
From
Power Supply
Polarity MUST be observed when connecting power.
Earth screens at controller only.
• When using 24VDC to power the device, a single shielded cable
may be used for power and control signals.
• Link is required if override is not used.
• Maximum terminal cable entry is 2.5mm² (stranded conductor).
FCC Class A Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Note – This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Modifications to this
device, may void the authority granted to the user by the FCC to operate this equipment.
SENW5x Detector Connection Identification
SENW58x
Thermistor (Temp -)
Temp
Thermistor (Temp +)
Temp
0 to 10VDC Output
STPT
10VDC / 0V Input
OVR
24VDC
VIN
0V / GND
GND
© MASS ELECTRONICS Pty Ltd 2014
DS 1.29 - SENW5x - Wall Mounted Temperature Detector
SENW51
SENW58x Connection Diagram - 24VAC
To Controller
Inputs
From Controller
Output
(0VDC=o , 10VDC=on)
From
Power Supply
Polarity MUST be observed when connecting power.
Earth screens at controller only.
• When using 24VAC to power the device, separate cables must be
used for power and control signals.
• Link is required if override is not used.
• Maximum terminal cable entry is 2.5mm² (stranded conductor).
Page 5
December 2015
SENW58x
SENW58x
Thermistor (Temp -)
Temp
Thermistor (Temp +)
Temp
0 to 10VDC Output
STPT
10VDC / 0V Input
OVR
24VAC
VIN
0V / GND
GND
