DS 1.29 - SENW5x - Wall Mounted Temperature Detector
December 2015

Specifications

POWER SUPPLY REQUIREMENTS (SENW58 Only)
Power Input
Power Consumption
Polarity MUST be observed when connecting power.
If using 24VAC, the data and power cabling should be segregated and
data run in screened cable (as shown on page 5).
ENVIRONMENTAL
Operating Temperature
Storage Temperature
ENCLOSURE
Housing is moulded from flame retardant plastics recognised by UL
as UL94-V0. The housing is designed to maximise airflow to the onboard
sensors. It should be mounted with a standard vertical C-Clip, or on a
standard wall enclosure.
Colour
Dimensions(Maximum)
APPROVALS
EN61326-1:2013 for CE Marking and RCM Labelling
Title 47 CFR, Part 15, Subpart B, Class A for FCC Verification
Onboard Sensor
TEMPERATURE SENSOR
Resistance
Accuracy

Inputs and Outputs

AVAILABLE OUTPUTS
Temperature
Setpoint (STPT)
OCCUPIED INPUT
Occupancy (OVR)
24VDC or 24VAC ±10% @ 50/60Hz
10mA @24VDC (80mA w/ backlight on)
32°F to 104°F (0 to 40°C)
non-condensing
32°F to 122°F (0 to 50°C)
non-condensing
Grey / White
(W)2.76" x (H)4.76" x (D)1.6"
[70mm x 121mm x 41mm]
NTC 10,000Ω thermistor (10K-2)
±0.36°F (0.2°C)
from 32 to 158°F (0 to 70°C)
Temperature (Temp) Resistance,
10K-2 thermistor (Isolated)
0 to 10VDC = configurable setpoint
signal (ref. to power GND)
Occupied = 10VDC ("Man" displayed)
Unoccupied = 0VDC
("Man" not displayed)
(ref. to power GND)
© MASS ELECTRONICS Pty Ltd 2014

Controls and Display

CONTROLS (SENW58 Only)
Setpoint Up and Down Buttons
Override / Select Single Button
DISPLAY (SENW58 Only)
Backlit LCD for Temperature, Setpoint and Override
Four Numeric Digits 0.75" (19mm) high
Primary Display
with one selectable decimal
Four Numeric Digits 0.5" (12.7mm) high
Secondary Display
with one selectable decimal
SET
Icons
Display Size (Width x Height) 1.6" x 1.2" (40mm x 30mm)
Digit Resolution 0.1, 0.5 or 1
Units °F, °C
Temperature Offset Range ±10
2.76" (70mm)

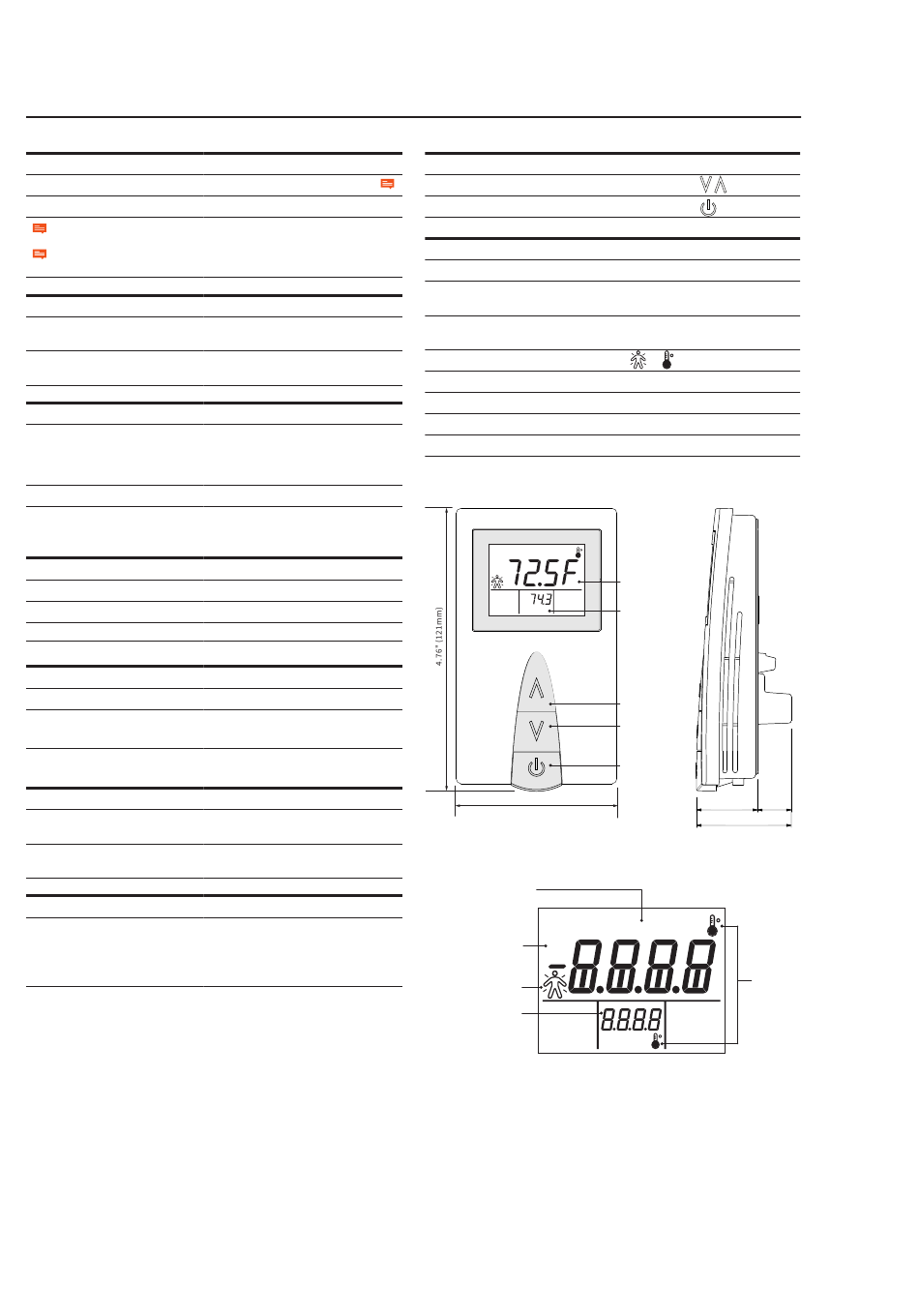

SENW5x Dimensions and Identification
(SENW58F Shown)
Setpoint Indicator
ON START STOP
DAY
Numeric / Text
Primary Display
Override Status
Numeric / Text
Secondary Display
ppm
SENW58 LCD Display
/ /
Primary
Display
Secondary
Display
Up
Down
Override /
Select
0.6"
1"
1" 0.6"
(26mm) (15mm)
(26mm) (15mm)
1.6" (41mm)
1.6" (41mm)
kWh
SET MONTH
Temperature
Indicators
