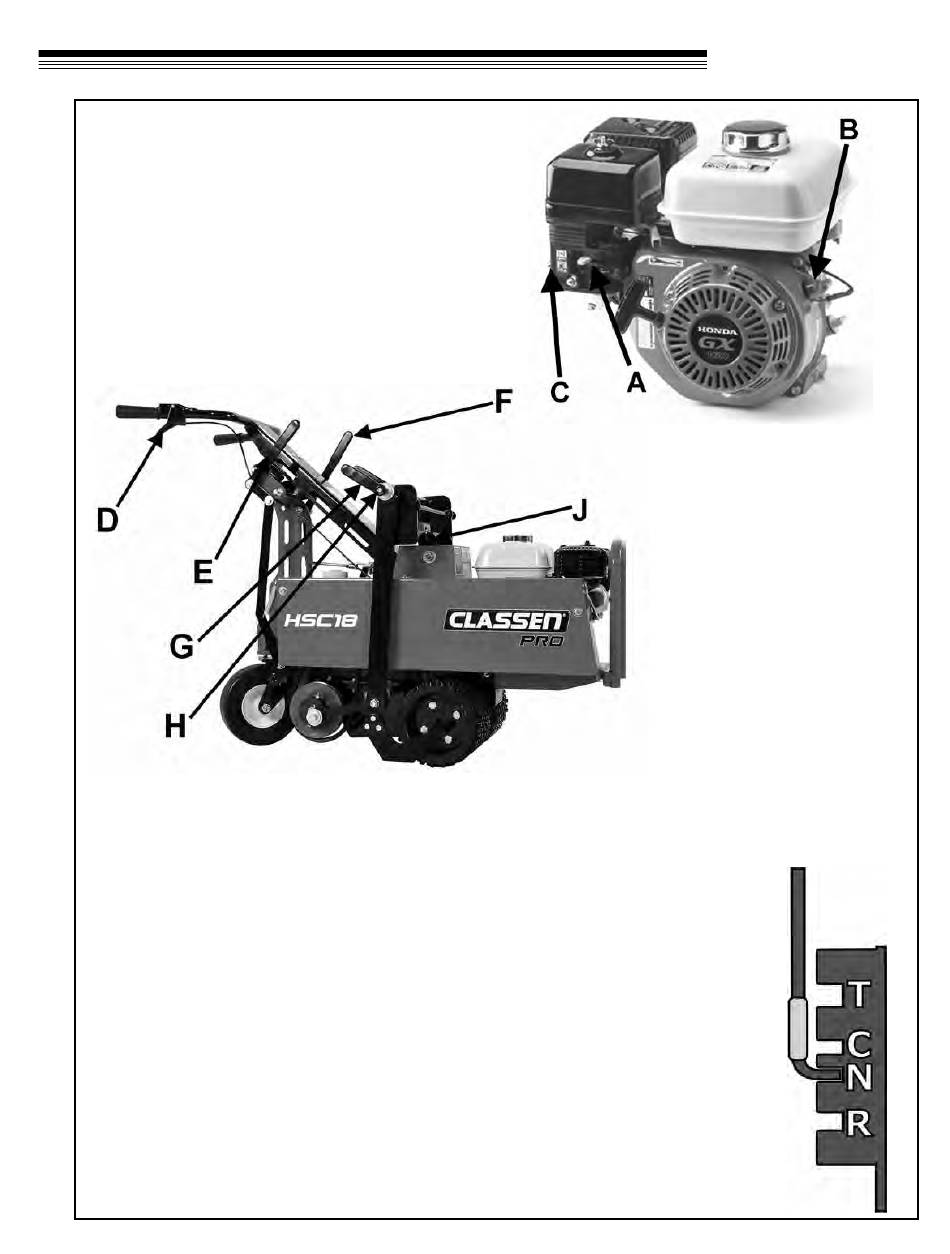

CONTROLS

FUEL SHUT OFF (A)
position to shut off the fuel whenever transporting the
machine by trailer, truck or during storage. Move to
the "ON" position before starting the engine.
SWITCH (B)
-
Move to the "OFF" position to stop the engine.
Move to the "ON" position before starting engine.
CHOKE (C) -
Move to the "CHOKE" position to apply the choke.
Move to the "RUN" position to remove the choke.
THROTTLE (D)
to increase the engine rpm. Squeezing the throttle
control to increase the engine rpm also engages the
centrifugal clutch powering the blades and wheels
when the blades and/or wheel drives are engaged.
CUTTER BLADE HANDLE (E)
Move the Cutter Blade handle forward to engage the
blade drive.
Move the Cutter Blade handle back to disengage the
blade drive.
HEIGHT ADJUSTMENT NUT (G)
Loose the Height adjustment nut to allow raising or
lowering the cutter blade.
HEIGHT ADJUSTMENT BAR (H) -
Use the Height Adjustment Bar to raise or lower the
cutter blade and to get the desired sod cutting depth.
10
- Move to the "OFF"
- Squeeze the throttle control
-
-
DEPTH GAUGE(J) -
Use the Depth Gauge to set the desired sod cutting
depth. This acts as a positive stop for the Height
Adjustment Bar H.
WHEEL DRIVE HANDLE
(F)
- Move the Wheel Drive Handle
forward from the neutral position N
to C (cut) or T (transport) to put the
transmission into forward. Transport
is faster than Cut and should not be
used when blade is in the soil.
Move the Wheel Drive Handle rear
ward from the neutral position N to
R to put the transmission into
reverse.
PRO
SOD CUTTER
