Summary of Contents for Classen HSC185

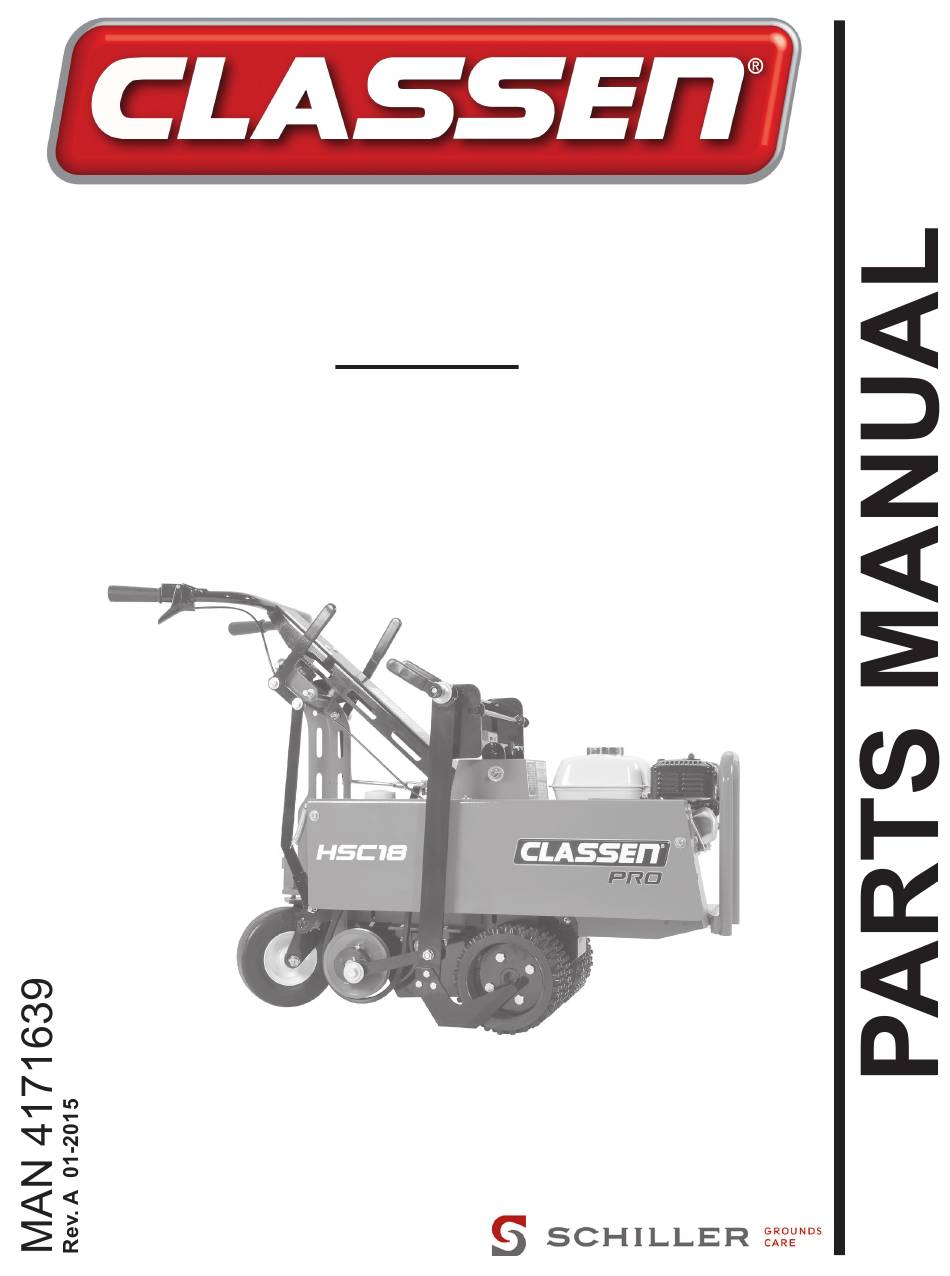

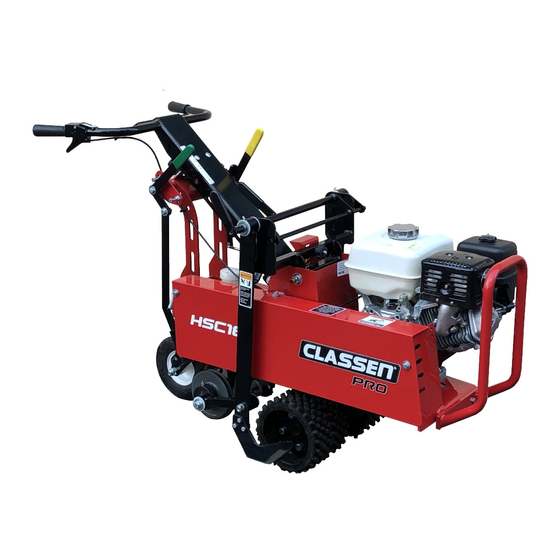

- Page 1 PRO SOD CUTTER MODELS: HSC185 HSC188 OPERATORS MANUAL 4171640...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some of its The engine exhaust from this product constituents are known to the State of contains chemicals known to the State California to cause cancer, birth defects of California to cause cancer, birth and other reproductive harm.
-
Page 3: Table Of Contents
Classen designs and builds its equipment to serve many years in a safe and productive manner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety warnings and instruc- tions. -
Page 4: Safety
These words appear in this Any Classen product that is altered, modified or manual and on the safety labels attached to Classen changed in any manner not specifically authorized machines. For your safety and the safety of others, after original manufacture–including the addition of... - Page 5 SAFETY SOD CUTTER MAINTENANCE SAFETY In general • Store only in containers specifically designed for • Maintain machine according to manufacturer's fuel. schedule and instructions for maximum safety • When refueling or checking fuel level: and best results. • Stop the engine and allow to cool; •...
-
Page 6: Set-Up, Maintenance
SET UP/ MAINTENANCE SOD CUTTER SET UP INSTRUCTIONS • Engine (refer to manufacturer's owner’s manual). To prevent injury, wear appropriate eye protection and Engine Oil Level Check stand clear when cutting banding. Banding is under 1. BEFORE CHECKING OIL: tension and may snap back when cut. •... -
Page 7: Storage
When replacement parts are required, use genuine To prevent possible explosion or ignition of vapor- Classen parts or parts with equivalent characteris- ized fuel, do not store equipment with fuel in tank or tics, including type, strength and material. Failure to... - Page 8 ADJUSTMENTS SOD CUTTER NEUTRAL ADJUSTMENT 1. Put shift lever in Neutral Position (N). Figure 1 2. Loosen lcoking nut A on clevis, them remove bolt B and turn the clevis one way or the other to adjust neutral. Figure 2. 3.
- Page 9 ADJUSTMENTS SOD CUTTER BELT DISENGAGEMENT 1. Remove belt cover for access. 2. Move blade engagement lever until idler is about 1/8” to 1/4” away from the back plate Fig- ure 6 3. Adjust stop bolt E to the lever with idle 1/8”to 1/4”...
-
Page 10: Specifications
Transmission (Gearbox) .........10W30 Cutting depth .........up to 2-1/2” Blade speed ..1200 RPM @ 3400 engine RPM DIMENSIONS Wheel Base ............22” HSC185 ........52"L x 38"H x 24.5"W HSC188 ........55"L x 38"H x 24.5"W WEIGHT Dry Weights HSC185 ............336 Ibs. HSC188 ............359 Ibs. -
Page 11: Parts Section
PARTS SECTION SOD CUTTER PARTS SECTION... - Page 12 MAIN FRAME ASSEMBLY SOD CUTTER FIGURE 1 24 41 18 21...
-
Page 13: Main Frame Assembly
30 C500016 PIN, 5/32" X 1-1/4" COTTER (INCLUDES ITEM 44) 31 4173099.7 CHAIN GUARD SCHV 32 C500219 BOLT, 5/16 X 5 4172383.7 GUARD, FINGER HSC185 33 C500101 NUT, 5/16-18 4171193.7 FORK-SWIVEL WHEEL 34 C500001 GREASE FITTING, 1/4 X 28 C100017 TIRE &... - Page 14 HANDLE ASSEMBLY SOD CUTTER FIGURE 2...
- Page 15 HANDLE ASSEMBLY SOD CUTTER FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4172000 S-MAIN BODY HSC18 4172003 S-MAIN HANDLE HSC18 (INCLUDES ITEMS 34-36) 4171190.7 WLDMNT-HANDLE, ENGAGEMENT 1 4171914.7 LINKAGE-ENGAGEMENT RH 4171191.7 WLDMNT-HANDLE, CONTROL 4171192 WLDMNT-HYDRO LINK 4171228.7 ARM-SHIFTER 4171229.7 DAMPENER-ISOLATION 4171230.7...
- Page 16 CUTTER ASSEMBLY SOD CUTTER FIGURE 3 5 20...
- Page 17 CUTTER ASSEMBLY SOD CUTTER FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175303 BLT-HEX 5/16-24X1 FL THD C500001 GREASE FITTING, 1/4 x 28 64025-51 NUT, 5/16-24 C500115 WASHER, 5/16 LOCK C100003 BEARING C100001 WASHER, 3/4 NYLON C100002 SEAL C100007 GRIP, RUBBER C100016.7...
- Page 18 POWER TRAIN ASSEMBLY SOD CUTTER FIGURE 4 38 9...
-
Page 19: Power Train Assembly
POWER TRAIN ASSEMBLY SOD CUTTER FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION C100493 SPROCKET, #40x54 w/ HUB C500147 BOLT, 5/16-18 x 1-1/2 4175021 S-WHEEL, MOLDED C500034 WASHER, 1/2 FLAT C100005 ENGINE HONDA 5.5HP C500174 BOLT, 1/2-13 x 1-3/4 C100114 ENGINE-HONDA 8HP C500006... -
Page 20: Kits
OPTIONAL KITS SOD CUTTER BLADE CONVERSION KITS: KITS: C900007 20" BLADE CONVERSION KIT C900014 12" BLADE CONVERSION KIT C900019 24" BLADE CONVERSION KIT C900037 16" BLADE CONVERSION KIT ITEM PART NO. DESCRIPTION 1 C500115 WASHER, 5/16 LOCK 2 C500101 NUT, 5/16-18 3 C400011 12”... - Page 21 OPTIONAL KITS SOD CUTTER NOTE: THIS TRAILER HITCH IS FOR CLASSEN AST AERATOR/SODCUTTER TRAILER TRAILER HITCH KIT (970544) Item Description 4172014.7 WLDMNT-HSC18 TRAILER HITCH 33148-01 SPACER-.379X.75X.25 C500134 BLT-3/8-16 X 1-1/4 C500042 WSHR-3/8" FLAT C500041 NUT-3/8-16 LOCK...
- Page 22 EffectiveJanuary 1, 2015 For the period of two years from the date of purchase, CLASSEN will repair or replace for the original purchaser free of charge, any part or parts found upon the examination of our factory authorized service station, or by the factory in Southampton, PA to be defective in material or workmanship.
