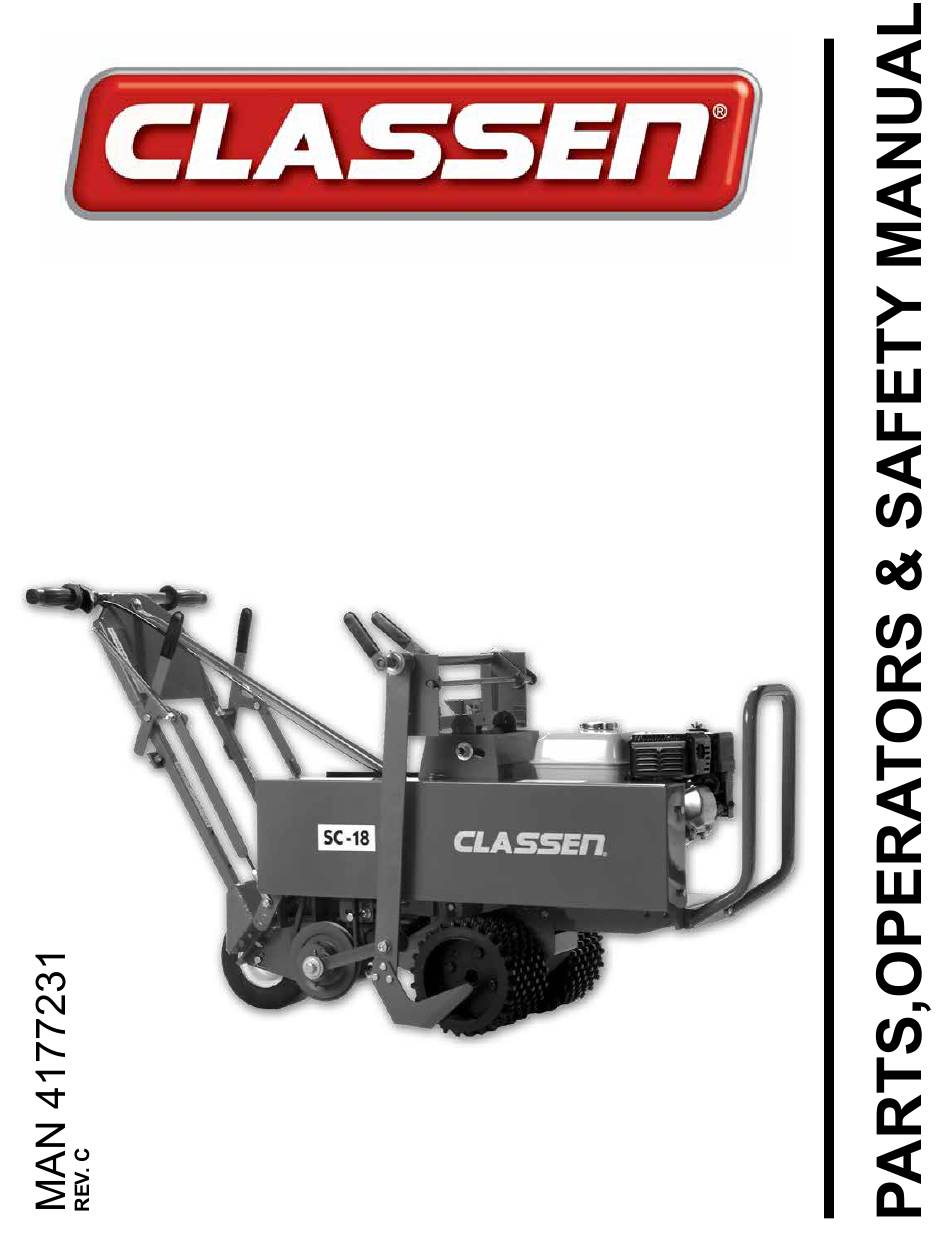

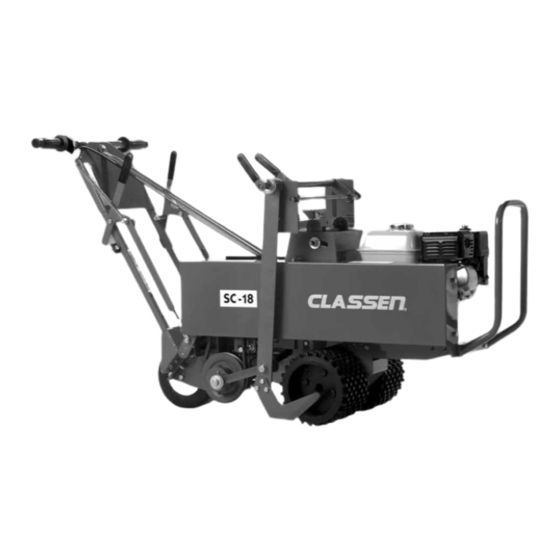

- Page 1 SOD CUTTER ORIGINAL LANGUAGE INSTRUCTIONS SC-18A/5.5 SC-18A/8.0 SC-18A/5.5K SC-18A/9K...
- Page 2 CALIFORNIA PROPOSITION 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. ADVERTENCIA: Cáncer y Dãno Reproductivo - www.65Warnings.ca.gov. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. ADVERTENCIA El estado de California hace saber que los gases de escape de este producto con-...
-
Page 3: Table Of Contents
Your safe use of this Classen product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation. - Page 4 SC-18A NOTICE !!! This symbol means: ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. strongly warns against, rejects and disclaims any modifications, add-on Signal word definitions: accessories or product alterations that are not de-...
-
Page 5: Introduction / Set-Up Instructions
Changing oil after break-in period. ter section of the frame. Servicing the sod cutter regularly and correctly. Classen parts and service. Directions “Right Hand” and “Left Hand” sides of the sod cutter Give the customer the operators manual and are determined by facing the back of the sod cutter encourage customer to read it. -
Page 6: Safety
SAFETY SC-18A Machine Preparation Machine Preparation Operator preparation and • Do not tamper with or defeat safety devices. Keep training guards, shields and interlock safety devices in place and in proper working condition. They are Read the Operation & Safety for your protection. - Page 7 SAFETY SC-18A Starting — except for repairs or adjustments as specifically noted, such as for carburetor adjustment, where • Start according to instructions in this manual or on the engine must be running. Keep hands and the machine. feet clear of moving parts in these circumstanc- •...
- Page 8 SAFETY SC-18A Blades Storage Safety WARNING The sod cutter blade is sharp and • Stop the engine and allow to cool before storing. can cut. Use extra caution when • Drain the fuel tank outdoors only. handling. Remove obstructions • Store fuel in an approved container in a cool, dry with care.
-
Page 9: Labels
LABELS SC-18A WARNING Operation of This Equipment May Create Sparks That Can Start Fires Around Dry Vegetation. A Spark Arrestor May be Required. The Operator Should Contact Local Fire Agencies For Laws or Regulations Relating to Fire Prevention Requirements. --This label meets California 4442.6 100504 WARNING - ROTATING PARTS. -
Page 10: Controls
CONTROLS SC-18A FUEL SHUT OFF (A) - Move to the “OFF” position to shut off the fuel whenever transporting the machine by trailer, truck or during storage. Move to the “ON” position before starting the engine. SWITCH (B) Move to the “OFF” position to stop the engine. Move to the “ON”... -
Page 11: Operation
SC-18A OPERATION FUEL PRE-OPERATION CHECK LIST Petrol (gasoline) is extremely (Operator’s responsibility) flammable and highly explo- • Review and follow all safety rules and safety sive under certain conditions. decal instructions. BE SURE to install fuel cap • Check that all safety decals are installed and after refueling. - Page 12 OPERATION SC-18A ENGINE STARTING PROCEDURES OPERATING THE SOD CUTTER NOTICE: There are two locations on this engine Preparation that require oil, both the crankcase and the gearbox. 1. Evaluate the lawn area and identify obstacles and Running the engine or gearbox with a low oil level debris (i.e.
-
Page 13: Maintenance
MAINTENANCE SC-18A GENERAL MAINTENANCE WARNING To keep the sod cutter in good operating condition, perform the following: When replacement • Keep blade sharp; a sharp blade cuts cleaner, parts are required, use faster and more uniformly and places less load on genuine Schiller Grounds the machine. -
Page 14: Storage
STORAGE SC-18A Storage Instructions Extended Storage WARNING Before the equipment is put into storage for any To prevent possible explosion or ignition of vapor- period exceeding 30 days: ized fuel, do not store equipment with fuel in tank or 1. Follow the storage instructions included in the carburetor in enclosure with open flame (for example, engine manufacturer's owner manual a furnace or water heater pilot light). -
Page 15: Troubleshooting
TROUBLESHOOTING SC-18A PROBLEM CAUSE REMEDY Blade will not stay in ground a. Bottom of blade is rounded off a. Blade should be sharpened or replaced Belts jump off a. Wrong type of belt a. Use only the special factory belt b. -
Page 16: Specifications
SPECIFICATIONS SC-18A SC-18A ENGINE 4 cycle 5.5 HP Honda Model SC-18A/5.5....Model GX160 9.9 cu-in (163 cc) 4 cycle 5.5 HP Kohler Model SC-18A/5.5K... Model CH255 10.8 cu-in (177 cc) 4 cycle 8 HP Honda Model SC-18A/8.0....Model GX270 16.5 cu-in (270 cc) 4 cycle 9.5 HP Kohler... -
Page 17: Parts Section
PARTS SECTION SC-18A PARTS SECTION... -
Page 18: Main Frame Assembly
MAIN FRAME ASSEMBLY SC-18A FIGURE 1 24 18... - Page 19 PULLEY, IDLER 31 C500091 BOLT, 3/8-16 x 2 32 C500106 NUT, 1/2-13 33 C500006 WASHER, 1/2 LOCK 34 4170316 DECAL, CLASSEN 35 2000577 DECAL, DANGER 36 C500142 5/16” x 2” BOLT (SC-16, SC-20, SC-24) 37 C100131 DECAL , “SC-18” 38 C100504...
-
Page 20: Handle Assembly
HANDLE ASSEMBLY SC-18A FIGURE 2 23 24 22 21 34 52... - Page 21 HANDLE ASSEMBLY SC-18A FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4176911-02 GRIP-1x.125x4 YELLOW C300039.17 PLATE, DEPTH GAUGE C100018 GRIP, L.H. HANDLE C400001.7 BAR, HIEGHT ADJUSTMENT C100132 DECAL, CUTTER BLADE C400238.7 PITCH ADJUSTMENT BAR C100133 DECAL, SLOW / FAST 4172692 KNOB-PLASTIC C100134...
-
Page 22: Power Train Assembly
POWER TRAIN ASSEMBLY SC-18A FIGURE 3 HARDWARE FOR MOUNTING 8HP ENGINE 48 19 33 4 30 38 54 54 4 30... - Page 23 POWER TRAIN ASSEMBLY SC-18A FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION C100004 BEARING 1” PILLOW BLOCK C500136 NUT, 1/4-20 C100005 ENGINE, 5.5 H.P. HONDA C500146 BOLT, 3/8-16 x 1-1/2 C100114 ENGINE, 8 H.P. HONDA C500147 BOLT, 5/16-18 x 1-1/2 C500154 BOLT, 3/8-16 x 2-1/2 102-0003-00 ENGINE, 5.5 H.P.
-
Page 24: Warranty
2-Year Limited Warranty This Classen Product is warranted against defects in materials and workmanship for a period of two (2) years from the date of purchase from an authorized dealer under the following terms and conditions. Schiller Grounds Care’s responsibility under this limited warranty is restricted to repairing or replacing, at its option, any covered part found to be defective in material or workmanship during the warranty period. - Page 25 Classen Warranty Statement Improper Use - This limited warranty does not cover any Classen Product, part, or accessory that (i) has been subject to misuse, abuse, neglect, negligence, or accident, or that has not been assembled, operated, or maintained in accordance with the operating or maintenance instructions specified in the Operator’s Manual;...
