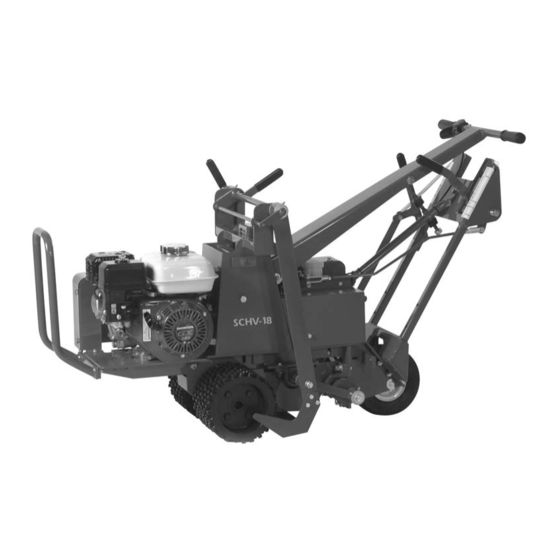

- Page 1 HYDRO-DRIVE SOD CUTTER MODELS: SCHV-18/5.5E SCHV-18/8.0E OPERATORS MANUAL C100579...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some of its The engine exhaust from this product constituents are known to the State of contains chemicals known to the State California to cause cancer, birth defects of California to cause cancer, birth and other reproductive harm.
- Page 3 Classen designs and builds its equipment to serve many years in a safe and productive manner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety warnings and instruc- tions.
- Page 4 These words appear in this Any Classen product that is altered, modified or manual and on the safety labels attached to Classen changed in any manner not specifically authorized machines. For your safety and the safety of others, after original manufacture–including the addition of...
- Page 5 SAFETY HYDRO SOD CUTTER MAINTENANCE SAFETY In general • Store only in containers specifically designed for • Maintain machine according to manufacturer's fuel. schedule and instructions for maximum safety • When refueling or checking fuel level: and best results. • Stop the engine and allow to cool; •...
- Page 6 SET UP/ MAINTENANCE HYDRO SOD CUTTER SET UP INSTRUCTIONS Engine Oil Level Check To prevent injury, wear appropriate eye protection and 1. BEFORE CHECKING OIL: stand clear when cutting banding. Banding is under • make certain the engine is level tension and may snap back when cut.
- Page 7 When replacement parts are required, use genuine To prevent possible explosion or ignition of vapor- Classen parts or parts with equivalent characteris- ized fuel, do not store equipment with fuel in tank or tics, including type, strength and material. Failure to...
- Page 8 SPECIFICATIONS HYDRO SOD CUTTER SCHV-18/8.0E - S/N: SV188E000101 & UP ENGINE Model ........4cycle 8 H. P. Honda ............Model GX240 ..........14.8 cu. in. (242 cc) Starter ............Recoil Governor..3400 RPM ± 200 RPM, no load Clutch .....spring loaded belt tightener type REDUCTION Engine to blade........3.03 to1 Engine to drive wheels ......57.2 to 1...
- Page 9 PARTS SECTION HYDRO SOD CUTTER PARTS SECTION...
- Page 10 MAIN FRAME ASSEMBLY HYDRO SOD CUTTER FIGURE 1...
- Page 11 PULLEY, IDLER 31 C500091 BOLT, 3/8-16 x 2 32 C400251 NUETRAL HANDLE 33 C500041 NUT, 3/8-16 LOCK 34 4170118 DECAL, CLASSEN 35 C100607 DECAL, 12º WARNING 36 C100096 DECAL, ALL GUARDS ETC. 37 C100556 DECAL, “SCHV-18” 38* C100504 SPRK ARRSTR DECAL...
- Page 12 HANDLE ASSEMBLY HYDRO SOD CUTTER FIGURE 2 15 21...
- Page 13 HANDLE ASSEMBLY HYDRO SOD CUTTER FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION C400008 HANDLE, ENGAGEMENT C100635 RUBBER BUSHING, TAPERED C400007 ARM, CUTTING BLADE ADJUST 1 C400382 SCHV MAIN CONTROL MOUNT 1 C100546 RUBBER BUSHING C400383 RUBBER MOUNTING BRCKT C400380 SCHV MAIN HANDLE C400384...
- Page 14 CUTTER ASSEMBLY HYDRO SOD CUTTER FIGURE 3 5 20...
- Page 15 CUTTER ASSEMBLY HYDRO SOD CUTTER FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION C500133 BOLT, 5/16-18 x 1 C500001 GREASE FITTING, 1/4 x 28 C500101 NUT, 5/16-18 C500115 WASHER, 5/16 LOCK C100003 BEARING C100001 WASHER, 3/4 NYLON C100002 SEAL C100007 GRIP, RUBBER...
- Page 16 POWER TRAIN ASSEMBLY HYDRO SOD CUTTER FIGURE 4 38 9...
- Page 17 POWER TRAIN ASSEMBLY HYDRO SOD CUTTER FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION C100493 SPROCKET, #40x54 w/ HUB C100433 RING, 1/2" SNAP C700024 S-WHEEL, 8-5/8 DRIVE C200054 S-SHEAVE, 2BK62H BUSHING C100005 ENGINE HONDA 5.5HP C100311 HYDROSTAT C100114 ENGINE-HONDA 8HP C500168 BOLT, 5-16-18 x 4-1/2...
- Page 18 KITS HYDRO SOD CUTTER OPTIONAL KITS (NOT SHOWN ON PARTS ILLUSTRATIONS) KIT P/N DESCRIPTION C100076 ELECTRICAL SHUT-OFF SWITCH & HARDWARE C400037 SET OF 2 SIDE BUMPERS & HARDWARE...
- Page 19 NOTES HYDRO SOD CUTTER...
- Page 20 Schiller Grounds Care, Inc. 1028 Street Road • Southampton, PA 18966 Telephone: 1-800-366-6268 TWO YEAR LIMITED WARRANTY Effective April 1, 2007 For the period of two years from the date of purchase, SCHILLER GROUNDS CARE, INC. will repair or replace for the original purchaser free of charge, any part or parts found upon the examination of our factory authorized service station, or by the factory in Norfolk, Nebraska, to be defective in material or workmanship.
