Aigis Mechtronics HS9386 Series Installation And Operating Instructions Manual

Extra large outdoor housings

Advertisement

Quick Links

E
L
O
H
XTRA
ARGE
UTDOOR
OUSINGS
Rail Assembly
M4 Screws
Camera
Mounting Holes
Heater
Spacer
Rails
Bushing
Screw
Ground Wire
Power Cable
Terminal Lug
HS9386 S
ERIES
I
O
I
N S T A L L A T I O N A N D
M4 Captive Screws
P E R A T I N G
N S T R U C T I O N S
.
.
W W W
A I G I S M E C H
C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS9386 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aigis Mechtronics HS9386 Series

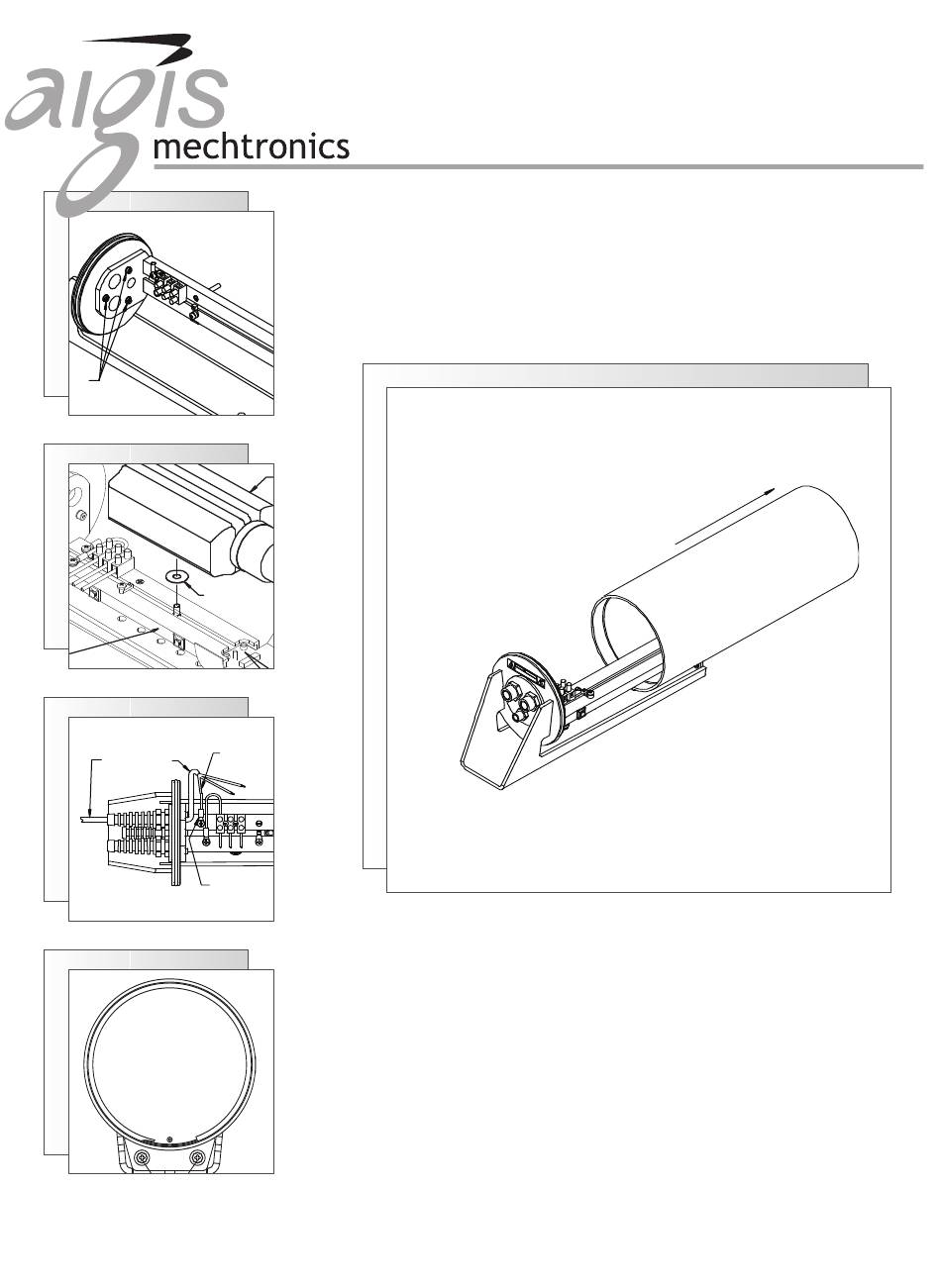

  • Page 1 XTRA ARGE UTDOOR OUSINGS Rail Assembly M4 Screws Camera Mounting Holes Heater Spacer Rails Bushing Screw Ground Wire Power Cable Terminal Lug HS9386 S ERIES N S T A L L A T I O N A N D M4 Captive Screws P E R A T I N G N S T R U C T I O N S W W W...
  • Page 2: Important Safeguards

    Important Safeguards 1. Read, Follow, and Retain Instructions - All safety 10. Power Sources - Operate the unit only from the type and operating instructions should be read and of power source indicated on the label. If unsure of followed before operating the unit. Retain instructions the type of power supply to use, contact your dealer for future reference.
  • Page 3: Safety Precautions

    UNPACKING 4.1.1 NEMA-3R and IP54 This electronic equipment should be unpacked and The HS9386 Series housings include a breather hole in handled carefully. the front face plate. The breather hole prevents the accumulation of moisture inside the housing when Check for the following items: installed in areas of high humidity.
  • Page 4: Installation

    INSTALLATION 5.4 Cable Requirements This installation should be made by a Video Transmission (Coaxial) qualified service person and conform to all Cable Type RG-59/U (Runs < 1000ft) local codes. RG-11/U (Runs < 2000ft) Cable Size Outside diameter between 4.6mm Model Designation and 7.9mm (0.181in.
  • Page 5: Disassembly And Mounting

    Lens Control Cable Cable Type Jacketed Multiconductor Cable Cable Size Outside diameter between 4.3mm and 11.9mm (0.170in. and 0.470in.) Cable Shape Round Shield Overall shielding Conductors Stranded 20 to 16 AWG wire No. of Conductors 4 and 8 Conductor Insulation Color coded Sources Belden 9552...
  • Page 6: Camera/Lens Installation

    5.6 Camera/Lens Installation Camera/Lens Wiring Place the camera/lens combination onto the rail WARNING: Only use the cables specified under assembly. INSTALLATION, Cable Requirements for wiring of all cameras and lenses. Fixed Lens Cameras: Position the camera/lens so that the lens is positioned over the heater but not past it. 5.7.1 Liquid-Tight Fittings Secure the camera to the rail assembly with the...
  • Page 7 Ground Wire Power Cable 5.8.1 Supply Power Connections The HS9386 Series housings offer the user one of three voltage configurations. The suffix to the housing model number will determine the supply voltage required. Any camera installed in the HS9386 Series housings must Terminal Lug be of the same voltage type as the housing.
  • Page 8: Video Coax Connection

    5.8.2 Camera Power Connections Video Coax Connection HS9386-6 Housings WARNING: Only use the cables specified under These housings are to be connected to 115VAC, and INSTALLATION, Cable Requirements for wiring of the are designed for use where site power is 115volts. The video coax connection.
  • Page 9: Camera/Lens Orientation

    Wire the functions as described above, or as needed. 5.11 Camera/Lens Orientation Small Fitting A unique feature of the HS9386 Series housing is Video Coax Cable CCD Camera BNC Connector the ability to rotate the mounting base 360 … around the rail assembly.
  • Page 10: Final Assembly

    5.13 Final Assembly 3. Insert the long end of the pull seal into the breather hole starting from the front side of the 5.13.1 Pull Seal Installation face plate. See FIGURE 17. If the breather hole is open, do NOT mount the housing in a position where the front face plate is pointed upward.
  • Page 11 3. Align the cover holes with the base assembly 5.13.2 Housing Assembly holes and tighten the captive M4 screws. This 1. The lens support screw is provided to support secures the cover onto the rest of the housing. the rail assembly. Adjustment will only be necessary if the rail assembly is rotated at angle other than horizontal.
  • Page 12 ' 2 0 0 7 Aigis Mechtronics 100 0203 001 AIG 10/07Printed 1124 Louise Road, Winston-Salem, NC 27107-5450 in U.S.A. Tel: 336.785.7740 Fax: 336.785.7744 Data subject to change without notice.

This manual is also suitable for:

Hs9386-6Hs9386-2Hs9386-5
