SCD-2010F Series
PREFACE
SCD-2010F Series is designed for installing on a ceiling.

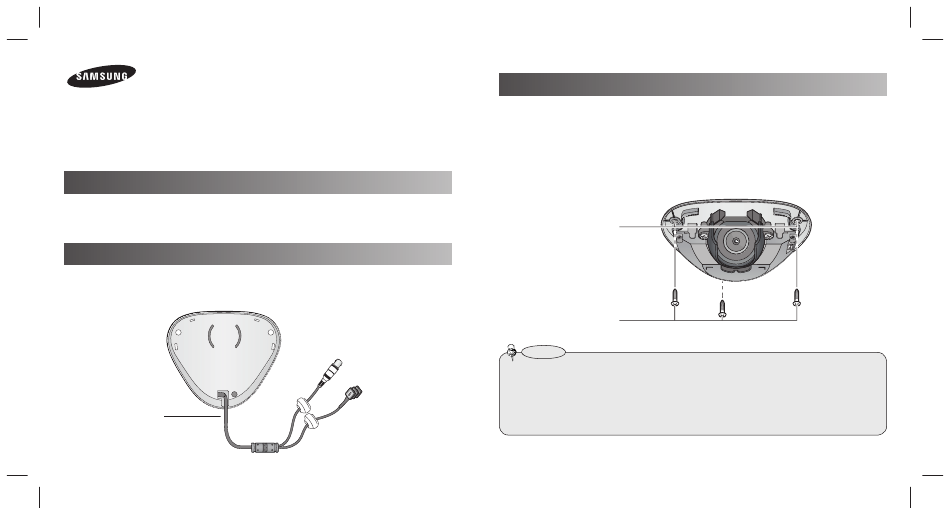

PRE-INSTALLING THE CAMERA BEFORE MOUNTING A CEILING
• To facilitate the installation work, arrange the BNC-POWER cable through the wiring hole.
BNC-Power Cable
Quick Install Guide
INSTALLING THE CAMERA
1. Remove the shield case from the body.
2. Install the camera in a desired position and use the screwdriver to tighten up the screws.
3. When done, insert the shield case back into the body.
Hole
Screw
Notes
· The recommended screws are 4mm Tapping screws.
· The screws should not be larger than 4mm.
· When fastening the two screws, be careful not to damage the dome components.
· Arrange the cables properly lest that they be stuck between or peeled off. Otherwise, it may cause
damage to the camera or a fire.
