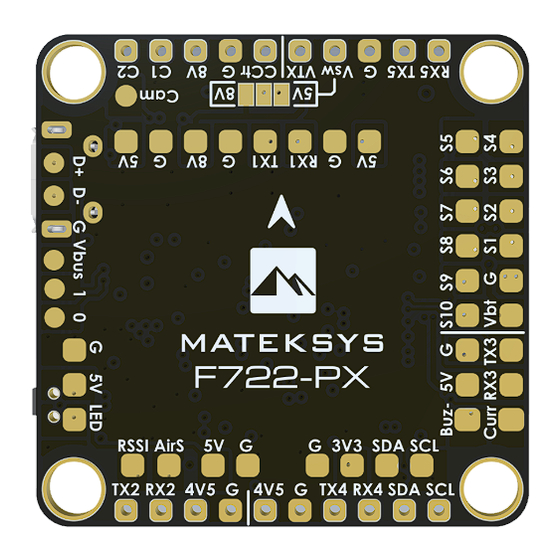

FLIGHT CONTROLLER F722-PX
QUICK START GUIDE
MCU: 216MHz STM32F722RET6
IMU: MPU6000 (SPI)
Baro: BMP280 (I2C)
OSD: Pixel OSD/FrskyOSD (Uart6)
Blackbox: 32M-byte Flash (SPI)
6x Uarts with built-in inversion
1x Softserial_Tx option
10x Dshot/PWM outputs
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
1x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1/S2/S3/S4)
Switchable Dual Camera Inputs
Switchable 5V/8V for VTX
PWM Camera control
9~36V DC IN (3~8S LiPo)
BEC: 5V 2A cont. (Max.3A)
BEC: 8V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
Battery Voltage Sensor: 1:10 (Scale 110)
Current Sensor: No
INAV target MATEKF722PX
BetaFlight unified target MATEKF722HD
Jan.2020 Rev 1.0
www.mateksys.com
