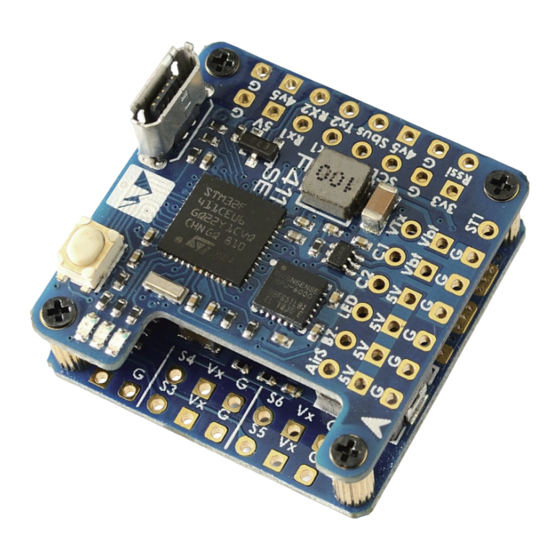

FLIGHT CONTROLLER F411-WSE
QUICK START GUIDE
MCU: 100MHz STM32F411CEU6
IMU: MPU6000 (SPI)
Baro: BMP280 (I2C)
OSD: AT7456E (SPI)
Blackbox: No
2x Uarts
2x Softserial_Tx
2x Motors & 4x Servos outputs
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
Switchable Dual Camera Inputs
6~30V DC IN (2~6S LiPo)
Current Sense 78A, Scale 423
BEC 5V 2A cont. 3A Max. for FC
BEC Vx 3.5A cont. 5A Max. for servos, 6V option
LDO 3.3V 200mA
Vbat filtered output power
Target: INAV MATEKF411SE
Jun.2019 Rev 1.0
www.mateksys.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mateksys F411-WSE
Summary of Contents for Mateksys F411-WSE
- Page 1 FLIGHT CONTROLLER F411-WSE QUICK START GUIDE MCU: 100MHz STM32F411CEU6 IMU: MPU6000 (SPI) Baro: BMP280 (I2C) OSD: AT7456E (SPI) Blackbox: No 2x Uarts 2x Softserial_Tx 2x Motors & 4x Servos outputs 1x I2C 4x ADC (VBAT, Current, RSSI, AirSpeed) Switchable Dual Camera Inputs...
- Page 2 G: ESC signal ground S3/S4/S5/S6: Servo signal Vx: onboard BEC for servos, Default is 5V Vx Reg 3.5A cont. Max.5A 5V: onboard BEC 5V 2A cont. Max.3A Curr VBat Size: 28x28x14mm Weight: 8.5g Holes: Φ2mm, 24mm mounting 24mm Jun.2019 Rev 1.0 www.mateksys.com...
- Page 3 *** If using CRSF receiver, Do not enable any functions on SOFTSERIAL2 Target INAV MATEKF411SE *** CLI defaults after reflashing Camera switcher C1 ON & C2 OFF C2 ON & C1 OFF No USER1 definition C1 (Camera-1) ON by default Jun.2019 Rev 1.0 www.mateksys.com...
