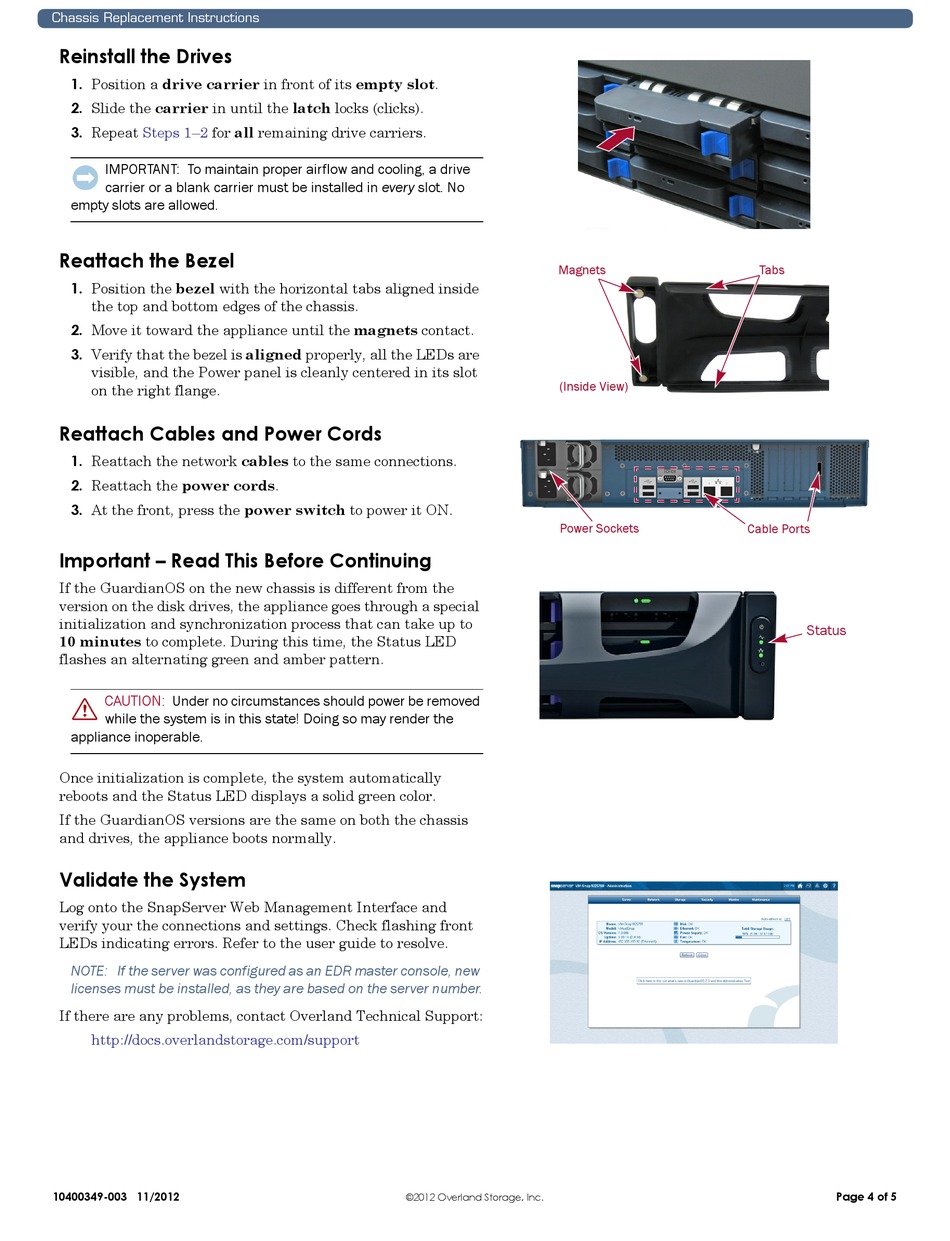

Chassis Replacement Instructions

Reinstall the Drives

1. Position a drive carrier in front of its empty slot.
2. Slide the carrier in until the latch locks (clicks).
3. Repeat Steps 1–2 for all remaining drive carriers.
IMPORTANT: To maintain proper airflow and cooling, a drive
carrier or a blank carrier must be installed in every slot. No
empty slots are allowed.

Reattach the Bezel

1. Position the bezel with the horizontal tabs aligned inside
the top and bottom edges of the chassis.
2. Move it toward the appliance until the magnets contact.
3. Verify that the bezel is aligned properly, all the LEDs are
visible, and the Power panel is cleanly centered in its slot
on the right flange.

Reattach Cables and Power Cords

1. Reattach the network cables to the same connections.
2. Reattach the power cords.
3. At the front, press the power switch to power it ON.
Important – Read This Before Continuing
If the GuardianOS on the new chassis is different from the
version on the disk drives, the appliance goes through a special
initialization and synchronization process that can take up to
10 minutes to complete. During this time, the Status LED
flashes an alternating green and amber pattern.
CAUTION:
Under no circumstances should power be removed
while the system is in this state! Doing so may render the
appliance inoperable.
Once initialization is complete, the system automatically
reboots and the Status LED displays a solid green color.
If the GuardianOS versions are the same on both the chassis
and drives, the appliance boots normally.

Validate the System

Log onto the SnapServer Web Management Interface and
verify your the connections and settings. Check flashing front
LEDs indicating errors. Refer to the user guide to resolve.
NOTE: If the server was configured as an EDR master console, new
licenses must be installed, as they are based on the server number.
If there are any problems, contact Overland Technical Support:
http://docs.overlandstorage.com/support
10400349-003 11/2012
Magnets
(Inside View)
Power Sockets
©2012 Overland Storage, Inc.
Tabs
Cable Ports
Status
