Profelmnet 3029 Quick Start Manual

3029

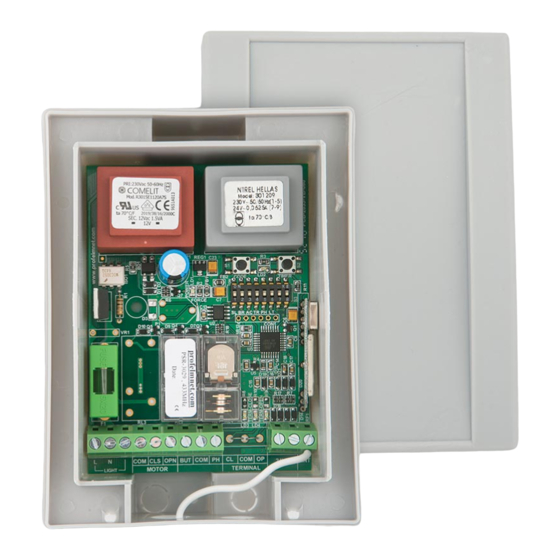

Control panel for rolling shutters up to 1200watt
Code Frequency
PSR/PTR - 3029 433,92/868,3
PS-3029 433,92
PN-3029 433,92
Check all connections. Check the terminal switches of the motor. The BLUE/GREY (common) motor wire is connected in terminal 4. Earth motor wire is not
connected in the control panel.
Covering distance: from 30 – 100 μ. depends on external conditions.
TRANSFORM ER
12 V - 1,5VA
230V
FLASH
1 2 3 4 5 6 7
M
230VAC
Terminal
Codification
Switches
Keeloq Rolling YES
Standard YES
Profelmnet
YES
Rolling
TRANSFORM ER
24V - 1,5VA
ΧΡΟΝ ΟΣ
CODE
PROGRAM M S
ON
1 2 3 4 5 6 7 8
PHOTOCELL
8 9 10 11 12 13 14 15
24VAC
60mA
Photocells Ext.Button Auto close
YES YES YES
YES YES YES
YES YES YES
Function description
Νο
Not used
1
Not used
2
AUTO-CLOSE FUNCTION
OFF: No auto close
ON: Auto-close. Embedded auto close function. Works with the photocell.
When the gate opens and there is no access (no obstacle detection from the
photocell), the A/C time is 120 seconds (the gate will close after 120
3
seconds). If there is access and obstacle detection from the photocell, then
the A/C time is 10 seconds (the A/C timer counts 10 seconds after the
photocell is free and then the gate will automatically close). The second time
of A/C can be changed (follow the below instructions).
Not used.
4
PHOTOCELLS
OFF: NO photocells.
5
ON: Photocells. The power supply of the photocell 24VAC in terminals
13&14 and COM & NC of the photocell in terminals 8 & 9.
Not used
6
MOTOR REVERSION
OFF/ON: The first move of the motor needs to be opening, after the power
7
of control panel. When the first move is closure, switch the dipswitch 7 to
the opposite position.
Not used
8
ANTE NNA
Ag.Dimitriou 286A ,173 42 Agios Dimitrios
Τηλ. Κέντρο: 210 9850 244, Fax: 210 9823 264
www.profelmnet.com
Light Motor
Slow move
230V torque
YES NO NO
YES NO NO
YES NO NO
Reverse
Memory
move
YES
300
YES
300
YES
300
