Profelmnet 3033 Manual

3033

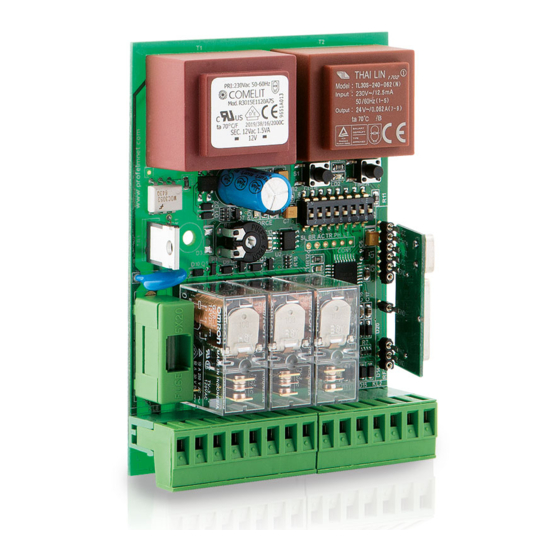

Control panel for sliding gate motor– single swing gate motor- barrier up to 1200watt
Code Frequency
PSR - 3033 433,92
PS-3033 433,92
PN-3033 433,92
Terminal Photocel
Codification
Switches
Keeloq
YES YES
Rolling
Standard YES YES
Profelmnet
YES YES
Rolling
Call center: 210 9850 244, Fax: 210 9823 264
Auto
Ext.Button
ls close
YES YES
YES YES
YES YES
Function description
Νο
DECELORATION FUNCTION
OFF: NO deceleration
ON: With deceleration, that starts 2SEC before the end-route of the
1
gate and continues for 40SEC or until the terminal switches is
blocked. If there are not terminal switches, the deceleration
continues for 15 seconds.
MOTOR BRAKE
OFF: No motor brake
2
ON: Brake when the gate reaches the end of the route. This
function works only with the deceleration function.
AUTO-CLOSE FUNCTION
OFF: No auto close
ON: Auto-close. Embedded auto close function. Works with the
photocell. When the gate opens and there is no access (no obstacle
detection from the photocell), the A/C time is 120 seconds (the gate
3 will close after 120 seconds). If there is access and obstacle
detection from the photocell, then the A/C time is 10 seconds (the
A/C timer counts 10 seconds after the photocell is free and then
the gate will automatically close). The second time of A/C can be
changed (follow the below instructions).
TERMINAL SWITCHES
OFF: NO terminal switches. In case of single swing gate or rolling
4 shutter.
ON: Terminal switches. In case of sliding gate or barrier.
PHOTOCELL
OFF: NO photocells.
5 ON: Photocells. The power supply of the photocell 24VAC in
terminal 13&14 and COM & NC of the photocell in terminal 8 & 9
ADJUSTABLE DECELERATION
6 OFF: motors up to 800kg
ON: motors above 800kg
MOTOR REVERSION
OFF/ON: The first move of the motor needs to be opening, after the
7 power of control panel. When the first move is closure, switch the
dipswitch 7 to the opposite position.
BLINKER LIGHT (FLASH) - LIGHT
OFF: FLASH. The terminals 1 & 3 give 230VAC/5A for how long the
8 gate is working.
ON: LIGHT. The terminals 1 & 3 give constant power 230VAC for 2
minutes after the latest command in the control panel.
