Profelmnet 3033 Quick Start Manual

3033

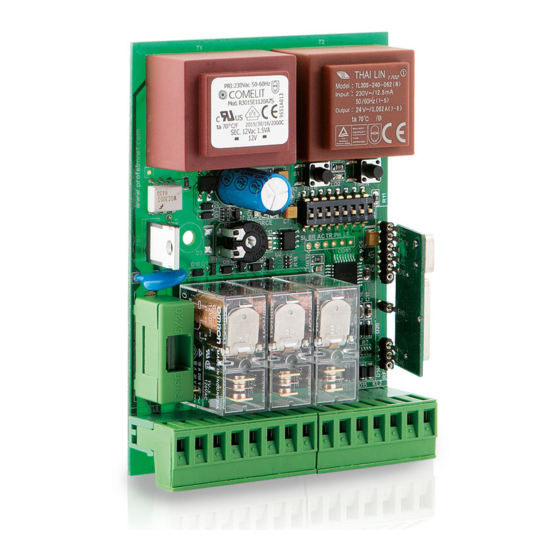

Control panel for sliding gate – single swing gate- barrier
Code Frequency
PSR/PTR - 2033 433,92/868,3
PS-3033 433,92
PSR/PTR-3033P 433,92/868,3

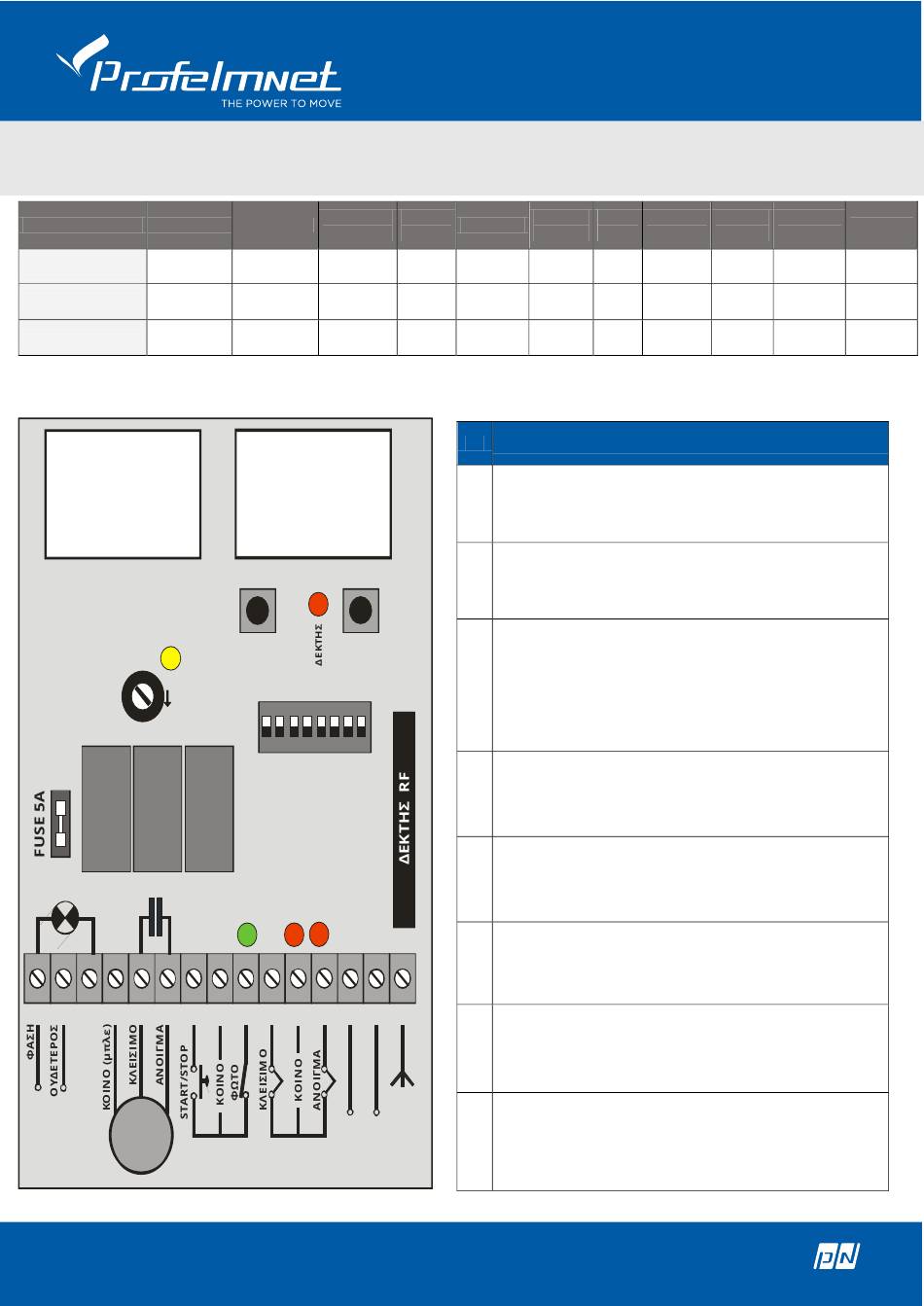

Check all connections. Check the terminal switches of the motor. The BLUE/GREY motor wire is connected in terminal 4.
Μετασχηματιστής
12V - 1,5VA
230V
ΡΥΘΜΙΣΗ
ΔΥΝΑΜΗΣ
ΜΟΤΕΡ
+
ΠΥΚΝΩΤΗΣ
ΦΑΡΟΣ
1 2 3 4 5 6 7
M
230VAC
Terminal
Codification
Switches
Keeloq
YES
Rolling
Standard YES
Profelmnet
YES
Rolling
Μετασχηματιστής
24V - 1,5VA
ΚΩΔΙΚΟΣ ΧΡΟΝΟΣ
ΠΡΟΓΡΑΜΜΑΤΑ
ON
1 2 3 4 5 6 7 8
Τερματικοί
Φώτο
8 9 10 11 12 13 14 15
Κεραία
24VAC
60mA
Τερματικοί
διακόπτες
Photoce Auto
Ext.Button
lls close
YES YES YES
YES YES YES
YES YES YES
Function description
Νο
OFF: NO slow move
ON: With slow move, that starts 2SEC before the end-route of the
1
door and continues for 40SEC or until the terminal switches is
blocked.
OFF: No motor brake
ON: Brake when the gate reaches the end of the route. This
2
function works with the function the slow move.
OFF: No auto close
ON: Auto-close. There is a double counter in the A/C function.
The first one is 120 seconds and is applied when the door stops
3
after an open function. During this counting time of 120 sec., if
the photocell beam is disturbed, then after the beam is free, the
A/C counting time becomes 10 sec. until the fully closed position.
OFF: NO terminal switches. In case of single swing gate or rolling
shutter.
4
ON: Terminal switches. In case of sliding gate or barrier.
OFF: NO photocells.
ON: Photocells. The power supply of the photocell 24VAC in
5
terminal 13&14 and COM & NC of the photocell in terminal 8 & 9
OFF: Adjust motor torque during the whole route of the gate.
ON: Adjust motor torque during the slow move only. It is
6
recommended for heavy motors.
OFF/ON: The first move of the motor needs to be opening, after
the power of control panel. When the first move is closure, switch
7
the dipswitch 7 to the other position.
OFF: FLASH. The terminals 1 & 3 give 230VAC/5A for how long the
gate is working.
8
ON: LIGHT. The terminals 1 & 3 give constant power 230VAC for 2
minutes every time that gate changes direction.
Ag.Dimitriou 286A ,173 42 Agios Dimitrios
Call center: 210 9850 244, Fax: 210 9823 264
www.profelmnet.com
Light Motor Slow
230V torque move
YES YES YES
YES YES YES
YES YES YES
Reverse
Memory
move
YES
300
YES
300
YES
300
