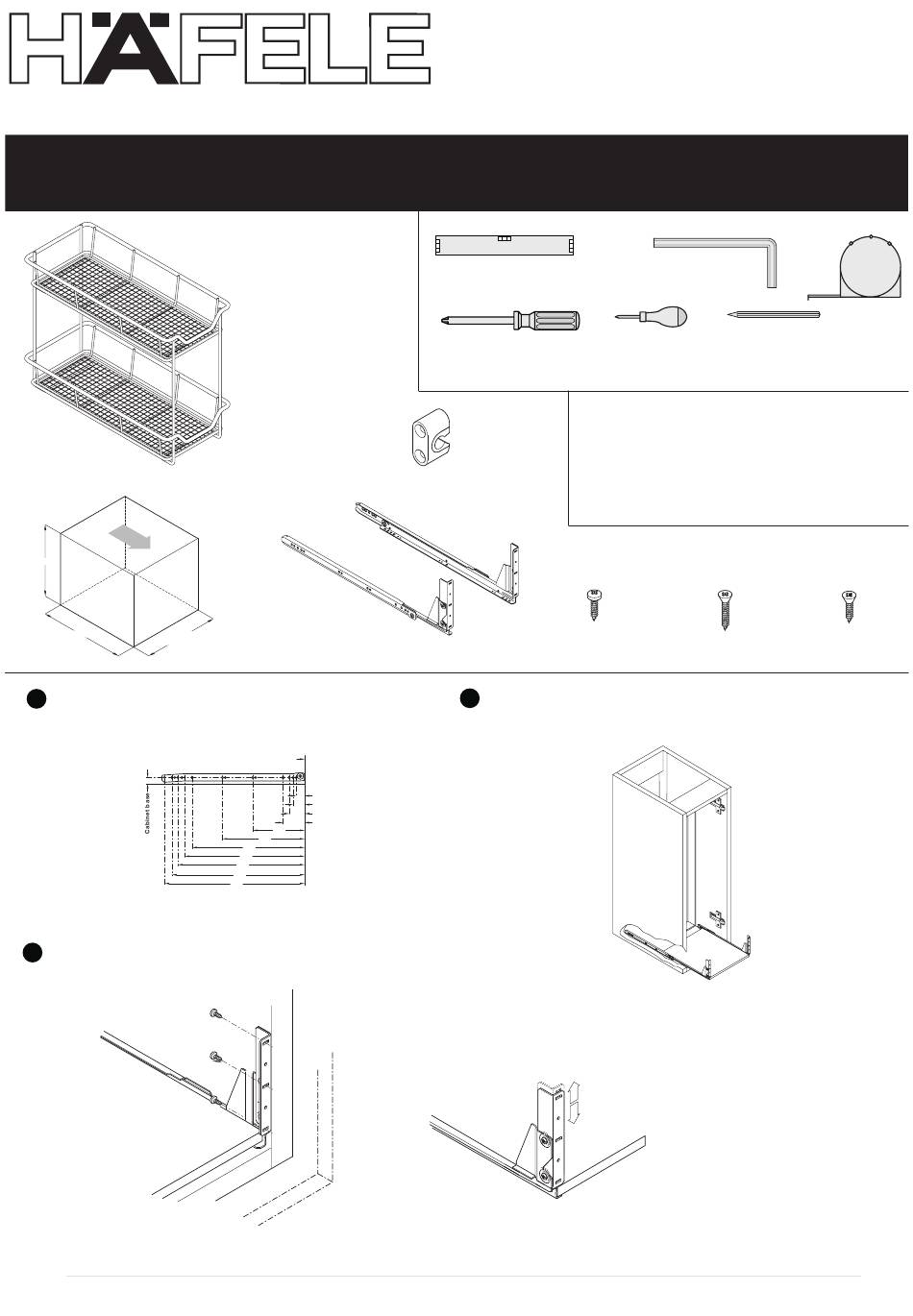

Hafele Cupboard Pull Out-Basket Assembly Manual

Assembly guide
Component parts
1 x Basket (A)
385
450
300/500 mm
cabinet width
Using the runner drilling pattern shown in digram 1, fix
1
cabinet member of the runners (B) to the inside face of
the cabinet, using 7 x 3.5 x 13.0 mm counter sunk
screws (D) per cabinet member.
Diagram 1
20
Fit drawer font (not included) to runner brackets using
3
3 x 4.0 x 13.0 mm pan head screws (C) per bracket
and adjust brackets as necessary, see diagram 3.
2 x Runners (B)
Front edge of carcase
27
36
49
68
164
260
356
379
401
420
443
Digram 3
Tel: 01788 542020, Fax: 01788 544440, E-Mail: info@hafele.co.uk
Cupboard Pull Out-Basket:
Tools Required (Not supplied)
Spirit Level
Cross Head Screwdriver
Did you know Häfele also supply tools to the trade and industry?
See www.hafele.co.uk for more information.
•
2 x Support
•
bracket (F)
•
•
•
•
•
16 x 4.0 x 13.0 mm
Pan head screw
2
Fit pre made base board (not included) to drawer member of
runners (B) using 7 x 3.5 x 13.0 mm counter sunk screws (D)
per drawer member, see diagram 2.
Sales and Technical Support -
SW4 Allen key
Bradawl Pencil
Make sure all the components are included before
you start.
The number for technical support is at the bottom
Of the page.
Dont rush!
Read the instructions first.
Assemble in the stages shown.
Keep the fittings together to avoid loss.
Have fun.
28 x 3.5 x 13.0 mm
Counter sunk screw
(C) (D)
Digram 2
FITT_10088
Issue - 01
Tape measure
4 x 3.5 x 25.0 mm
Counter sunk screw
(E)
Size of base board =
450 mm deep x
internal width - 24 mm
