Hafele 800 RH Assembly Manual

Assembly guide
Component parts
*Please note:
Runner (P) has a 3/4 extension, Runner
T
(I) has a full length extension.
P*
Q
N
G&H
W
M
V
Before you start...
also fixings page 8, if not call the Helpline on 01788 548800 and our team will get things sorted. When you are ready
to start make sure you have the right tools to hand, plenty of space and a clean dry area for building. Don't rush, read
the instructions first and run through the sequence before you begin. Assembly should be done in the stages shown in the
following diagrams, keeping fittings together to avoid loss.
Cleaning - Use mild soap and water only. Do not use abrasive cleaners.
A. Using a tape measure and pencil mark out 5 x 5 mm
1
holes for the top plate (B) at a height of 510 mm, height
from hole centre to cabinet base as shown above. Pre drill
using a 5 mm drill bit. Do not fix the top plate at this point.
B. Locate base plate (A) inline with the front edge of the
cabinet. Pre drill 4 x 5 mm holes and secure with 4 x
Euro screws.
S
O
J
E&F
I
R
D
L
K
X
Check the pack and make sure all the components and fixings are included – see
5 mm
A
B
Tel: 0800 171 2908, Fax: 01788 544440, E-Mail: info@hafele.co.uk, www.hafele.co.uk
Soft close 800 RH

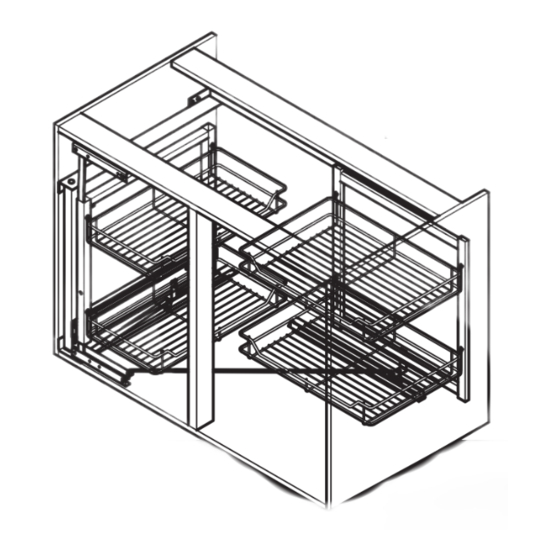

Pull & Swing Corner Unit
Tools required (Not Supplied)
Spirit level
B
Allen key (supplied)
Did you know Häfele also supply tools to the trade and industry?
See www.hafele.co.uk for more information.
C
•
•
•
•
•
A
•
U
•
FRAME C ASSMEBLY
2
Take frame (C) and runner (I) extend the runner to
its full extension and and secure the runner to frame
(C) with 3 x M4 x 10 mm allen bolts as shown above.
Attach damper (W) to bracket (V) with 2 x M4 x 10
mm allen bolts and 2 x nyloc nuts (fig. 1). Attach (W)
and (V) to frame (C) with 2 x M4 allen bolts (fig. 2).
Sales and Technical Support -
Cross Head Screwdriver
Bradawl
Make sure all the components are included before
you start.
The number for technical support is at the bottom
of the page.
Don't rush!
Read the instructions first.
Assemble in the stages shown.
Keep the fittings together to avoid loss.
Have fun.
1
2
FITT-10255
Issue - 01
Tape measure
Pencil
