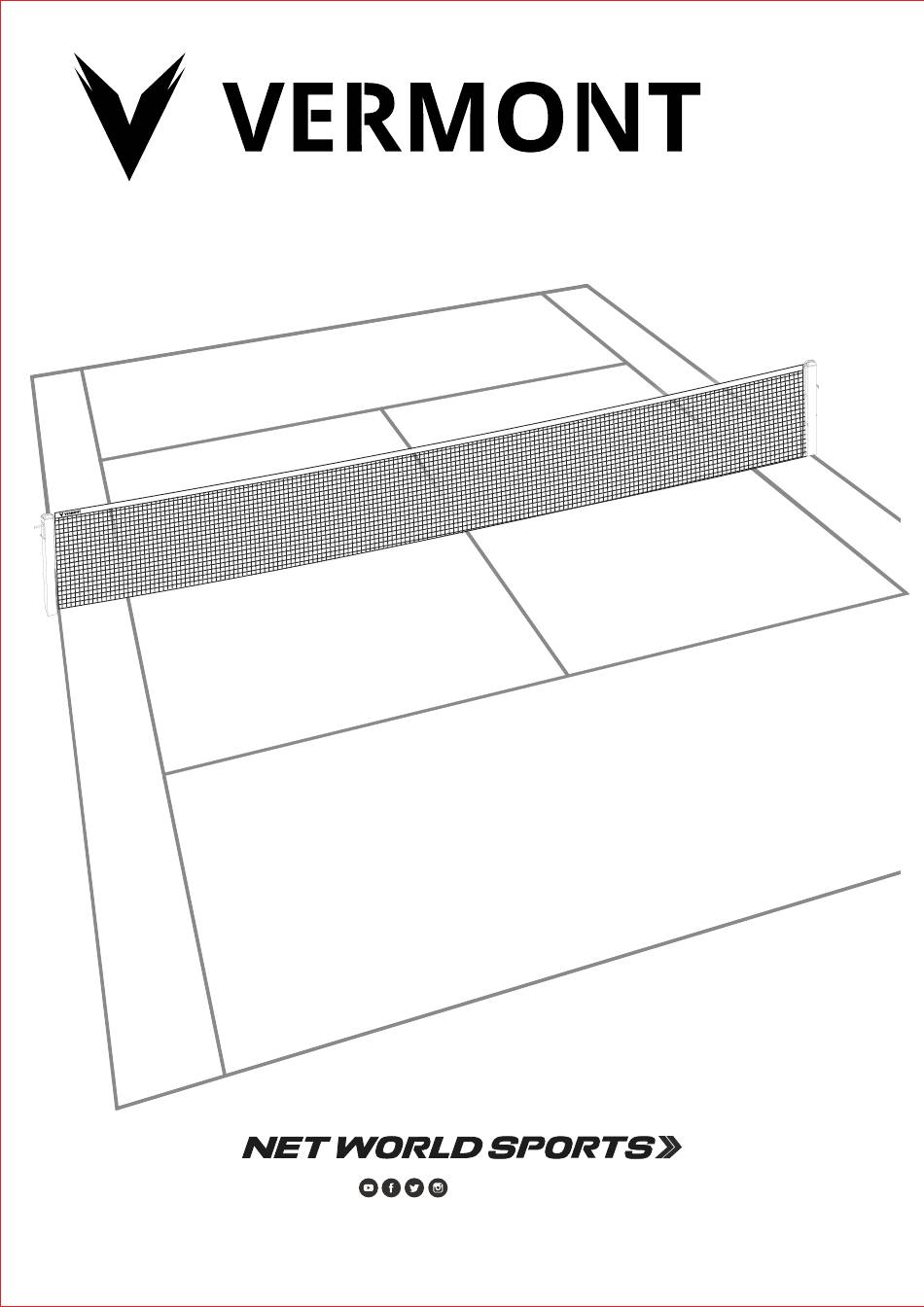

Page 1
TENNIS POST AND NET INSTALLATION @NetWorldSports www.networldsports.co.uk / / +44 (0) 1691 683 807 / / cs@networldsports.co.uk www.networldsports.com / / 1-866-861-9095 / / cs@networldsports.com...
Page 2
*IMPORTANT* 1. Please read through the instructions thoroughly before installation 2. Installation, movement and use of equipment should be carried out under the supervision of a competent person using due diligence and risk assessment. 3. Take extreme care when installing, moving and lifting components. 4.
Page 3
STEP 1 - Installing sockets. Tennis post ground sockets should be set 42ft (12.80m) apart centre to centre for a doubles net set up or 33ft (10.06m) for a singles net set up. If a centre ground socket (for attaching the centre strap) has been purchased then this needs to be set exactly in the centre of the 42ft or 33ft set up.
Page 4
A concrete block 70cm x 70cm x 70cm minimum is recommended to hold the tennis post ground sockets in place. The concrete block should be set slightly below ground level to allow for the sports surface. For example if you were using 30mm thick artificial carpet for the sports surface then the blocks of concrete will need to be set 30mm below ground level.
Page 5
STEP 1 - Setting up tennis posts and net. Before installing tennis posts and net please ensure that the concrete blocks holding the sockets have correctly set into place. You will then need to screw the brass winder handle to the winding mechanism using the screw provided.
