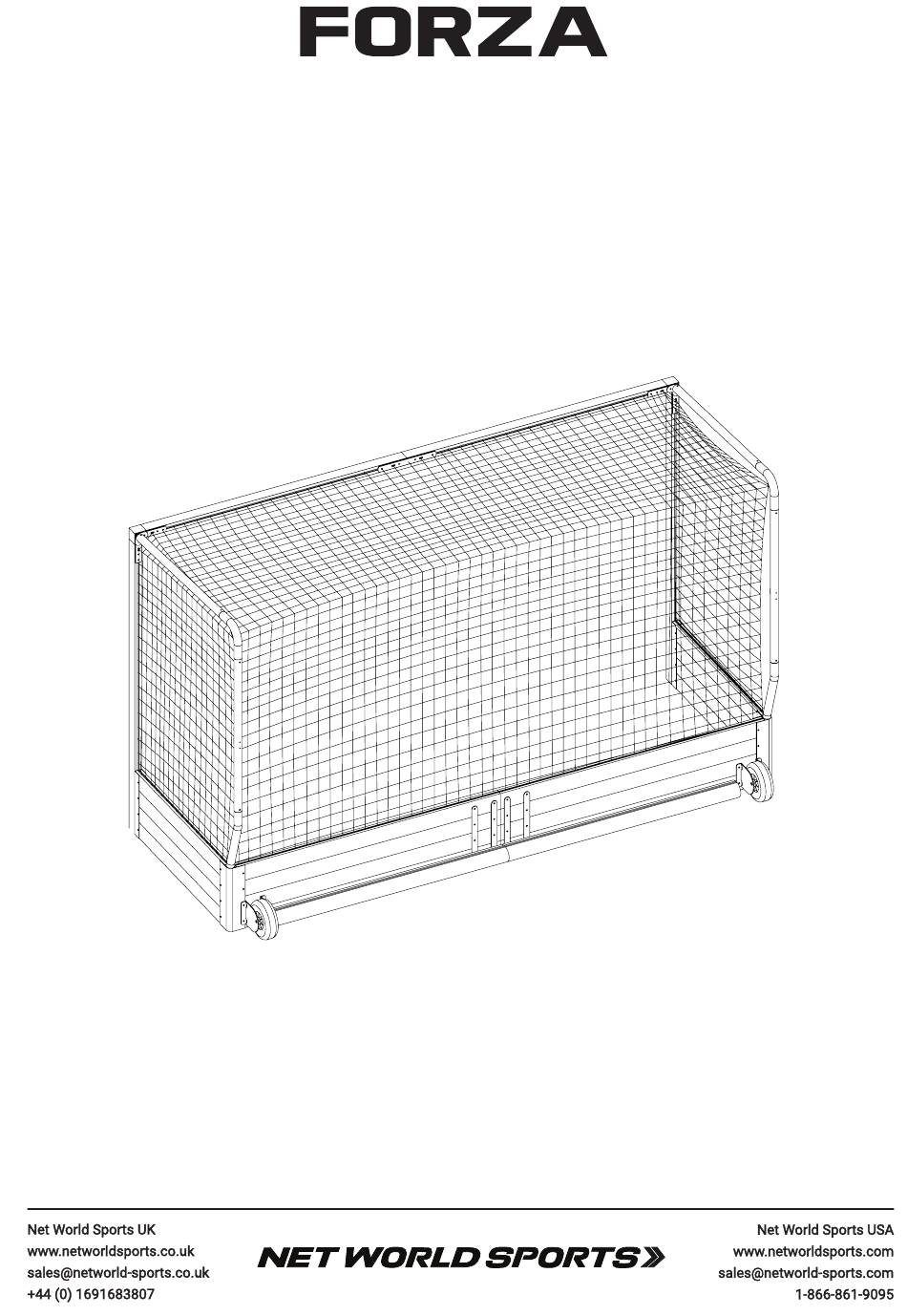

  • Page 1 FIH Hockey goal...

  • Page 2: Parts List

    PARTS LIST 39185 Upright (x2) 39186 Crossbar (x2) 39189 39190 Back corner support (x1) Back corner support (x1) 39187 Sideboard (x2) 39188 39203 39197 Backboard (x2) Side frame tube with cleat (x2) Side frame tube (x2) 39199 39202 39216 38027 Back tube (x2) Corner joint (x2) Corner bracket (x2)

  • Page 3: Handy Extras

    39207 39208 39209 39210 38082 38094 M8x60 bolt (x16) M8x65 Bolt (x28) M8x70 bolt (x4) M8x35 hex bolt (x12) M8 lock nut (x48) M8 washer (x96) 38099 38049 38055 39211 38077 38088 M8 spring washer (x12) M10x20 bolt (x20) M10x25 bolt (x4) M10x70 bolt (x8) M10 lock nut (x32)
  • Page 4 Step 1 - Crossbar Layout crossbars (39186) and crossbar inner brace (39193). Slide 2x M10x20 bolts (38049) into each of the crossbar sections locating them between the pre-drilled holes. Slot the Crossbar inner brace (39192) into the crossbar ensuring the holes are aligned. see fig1.
  • Page 5 Step 4 - secure upright to crossbar Screw M8x35 hex bolts (39210) through the crossbar into the corner joint ensuring M8 spring washers (38099) are in place. fig 4. locate corner bracket (39216) over pre inserted bolts Locate side frame fixing (39200 and 39210)over pre-inserted M10x25 boltsin corner joint NOTE Side frame fixings are left and right handed.
  • Page 6 Step 6 - Assemble backboard lay out the backboard sections (39188) and backboard inner brace (39192) Slide the inner braces into the backboard sections ensuring the pre-drilled holes are aligned. see fig 6. Fig 6. Slide M8 washer over M8x65 bolt (39208) Locate through backboard braces (39194), Backboard and inner braces.
  • Page 7 Step 8 - Fitting back corner support NOTE. The back corner supports are left and right handed (39189 and 39190). Slot the back corner support onto backboard ensuring the pre-drilled holes are aligned Locate an M8 washer (38094) over 2x M8x65 bolts (39208), Fit the bolts through the top 2 holes in the backboard Secure with M8 washer (38094) and lock nut (38082) fig8.
  • Page 8 Step 10 - side frame Lay out 1x side frame straight tube (39197) 1x side frame straight tube with cleat (39203) 39197 1x side frame curved tube (39198) Fit each section together as per fig10. 39198 Fig10. 39208 Locate 1 end of the frame into the back corner support and 1 end into the side frame fixing on the goal post.
  • Page 9 Step 11 - Net Attach the net in the top corners using large push twist net clips (39137) attach the net to the centre of the crossbar using large push twist net clips (39137) see fig 11 and 11a fig 11 39137 fig11a 39137...
  • Page 10 Thread the net cord through the net and steel loop on the side frame and secure with the cleats...
