Net World Sports Forza ALU110 Quick Start Manual

16x4 freestanding goal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ALU110
16x4 FREESTANDING GOAL
@NetWorldSports
www.networldsports.co.uk // +44 (0) 1691 683 807 // cs@networld-sports.co.uk
www.networldsports.com // 1-866-861-9095 // cs@networld-sports.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Forza ALU110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Net World Sports Forza ALU110

Summary of Contents for Net World Sports Forza ALU110

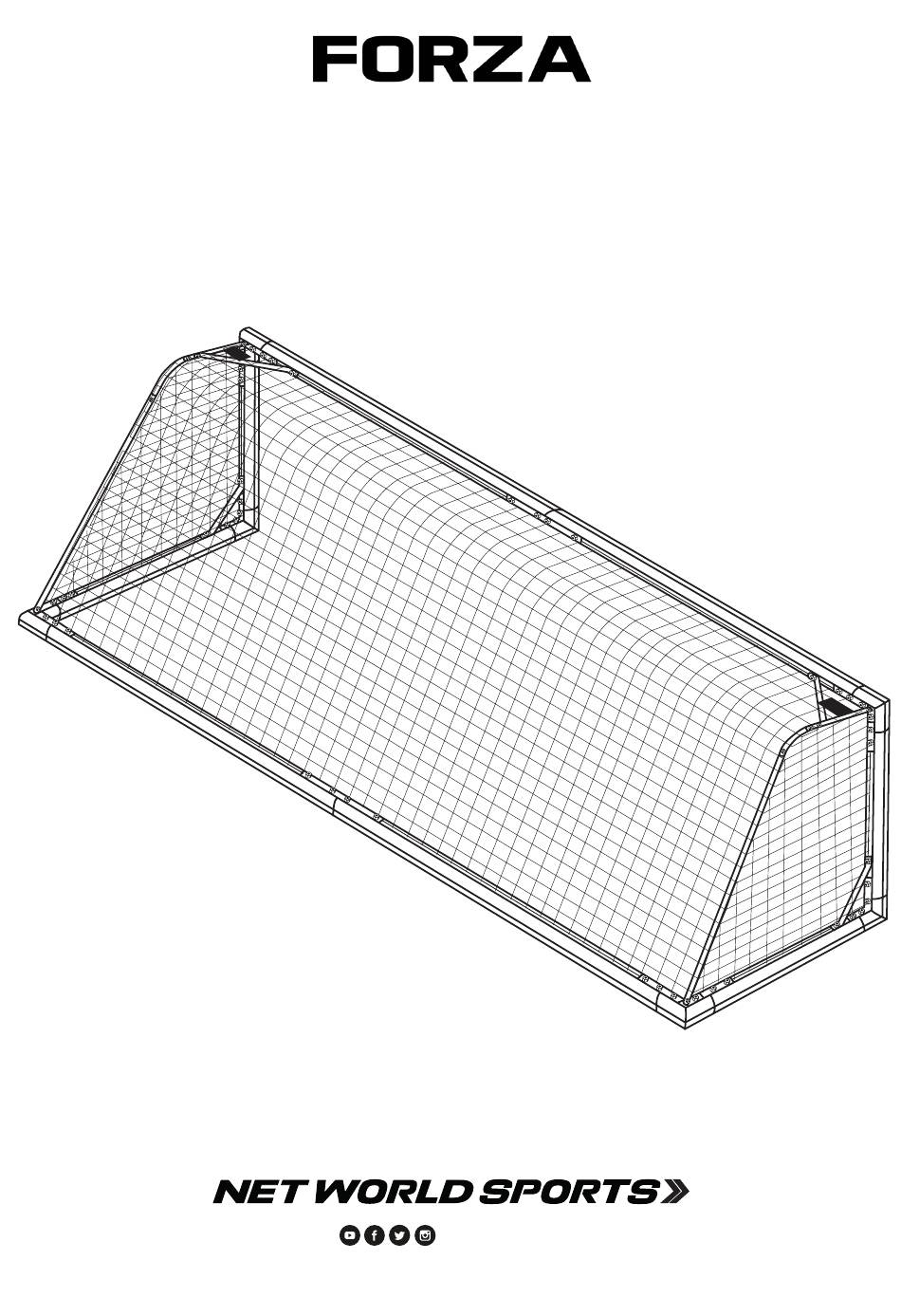

  • Page 1 ALU110 16x4 FREESTANDING GOAL @NetWorldSports www.networldsports.co.uk // +44 (0) 1691 683 807 // cs@networld-sports.co.uk www.networldsports.com // 1-866-861-9095 // cs@networld-sports.com...
  • Page 2 PARTS LIST 38027 37901 Straight Bracket (2x) Crossbar/Backbar (4x) 37928 37934 Sidebar/Upright (4x) Crossbar Connector Front & Back (2x) 38044 38011 Upright Support (2x) Crossbrace (2x) 38038 38022 38016 38033 L Bracket (2x) Upright Corner Joint (2x) Corner Joint (4x) Corner Bracket (4x) 38174 38127...
  • Page 3 HANDY EXTRAS Wrench Ratchet with Sockets Rubber Mallet Step Ladder Allen Key ADD-ONS Weights Wheels 38111 Water Tank 642mm 38116 38122 Left Wheel (1x) Right Wheel (1x) 38105 38055 38077 38088 Water Tank 911mm (2x) M10 Lock Nut (4x) M10 Washer (4x) M10x25 Bolt (4x) *IMPORTANT Goal must be anchored at all times.
  • Page 4 STEP 1 - Crossbar/Backbar (Fig. 1) Layout the Crossbar (37901) and Connector (37934). Fig.1 37901 Slide 2x M10x20 Bolts (38049) into each Crossbar Section (37901). Slot the Connector (37934) into the Crossbar (37901) ensuring 37934 38049 that the holes align. 37901 STEP 2 - Crossbar/Backbar (Fig.
  • Page 5 Fig.4 STEP 4 - Fixing Crossbar to Uprights (Fig. Place Corner Bracket (38033) over the prepositioned bolts. Place M10 Washers (38088) over bolts ensuring Side Frame Fixing (38127) is in place over Bolt (38049) as per Fig. 4a. Secure in place with M10 Nuts (38077). Fig.4a Repeat for both sides.
  • Page 6 STEP 7 - Connecting uprights to base (Fig. Fig.7 Slide 2x M10 Bolts (38049) into Sidebar and 2x M10 Bolts (38049) into the Upright. Slide 2x M10 Bolts (38049) into Upright Corner Joint (38022). Fig.7a Insert the Corner Joint into both the Upright and Sidebar. Fig.7b 38049 38022...
  • Page 7 STEP 9 - Side Frames (Fig. 9) Layout Side Frame parts, Top (37988) and Bottom (37999). Fix together with M8x50 Bolts (38060), M8 Washers (38094) and M8 Nut (38082) as per the diagrams Fig.9a. Fig.9a Attach the side frame to the side frame fixings using M8x50 Bolts Fig.9 (38060), M8 Washers (38094) and M8 Nut (38082) as per the diagrams Fig.9b and Fig.
  • Page 8 STEP 11 - Net Fig.11a Place the net over the frame, noting that the red tabs denote the top corners of the net as per Fig. 11a . Attach the net to the frame using Push and Twist Clips (38174) as per Fig.
  • Page 9 ADD-ONS Fig.12 WHEELS 38077 Ensure M10x25 Bolts (38055) have been slotted into place 38088 whilst constructing the goal. Place the Wheel Bracket over the prepositioned bolts. Fix in place with 2x M10 Washer (38088) and 2x M10 Nuts (38077). Ensure Wheels are fixed on the correct side of the goal. When the Wheels are not in use the handles must be facng away from the pitch.
