Elmdene VRS124000-P Series Instruction Sheet

Elmdene International Ltd
3 Keel Close, Interchange Park,
Portsmouth, Hampshire, PO3 5QD, UK
12vdc 4A IP68
CCTV SMPSU
- IP68 enclosure
- Universal mains input voltage 90-264vac
- High efficiency electronics for reduced
running costs and lower operating
temperatures
- Continuous full rated current to load
- Installer safe design with all high voltage
electronics fully shrouded
- Modular construction for ease of
Maintenance & installation
F
EATURES

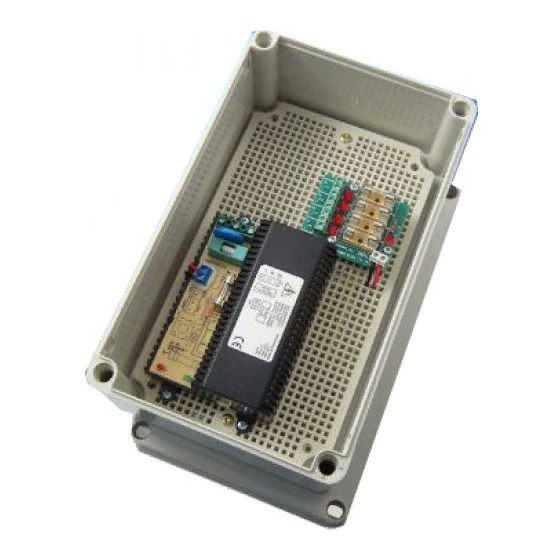

The VRS124000-xP IP68 range consists of high efficiency cost effective power supplies, ideal for use in
CCTV applications. They feature regulated 12.0vdc SMPS modules, continuously supplying full rated
current to load, while their universal mains input voltage enables the power supply to be used across a
wide geographical area. The highly efficient switch mode design generates less heat and ensures low
operating costs. The modular construction simplifies maintenance and the fused output module allows
multiple circuits to be individually protected.
O
PERATION
This unit is intended for use by Service Personnel only - There are NO USER SERVICEABLE parts inside.
The green Mains LED will be illuminated whilst the mains supply is present. In the event of a fault
condition, the red Fault LED will also be illuminated on the module.
I
NSTALLATION AND
This unit is only suitable for installation as permanently connected equipment. The PSU is suitable for
external installation. EQUIPMENT MUST BE EARTHED. Before installation, ensure that external
disconnect device is OFF. The PSU should be installed according to all relevant safety regulations
applicable to the application.
Technical Support: +44(0)23 9269 6638 (option 3)
VRS124000-xP
1 x 4.0A Fused Output
2 x 2.0A Fused Outputs
4 x 1.0A Fused Outputs
8 x 0.5A Fused Outputs
Where 'x' is the number of fused outputs 1, 2, 4 or 8 (model dependent)
S -U
ET P
Tel: +44 (0)23 9269 6638
Fax: +44 (0)23 9266 0483
Web: www.elmdene.co.uk
- Available in 1, 2, 4, or 8 channel versions
(model dependent)
- Individually Fused Outputs
- Individual channel LED health indication
- Full electronic short circuit and overload
protection on load output
- Mains transient protection circuit
- Green 'Mains Present' LED
- Red 'Fault' LED
PAK200565_01B ©2016 ELMDENE INTERNATIONAL LTD
1
