ELMDENE INTERNATIONAL LIMITED
3 KEEL CLOSE
INTERCHANGE PARK
PORTSMOUTH
HAMPSHIRE
PO3 5QD, UK
G13804NU

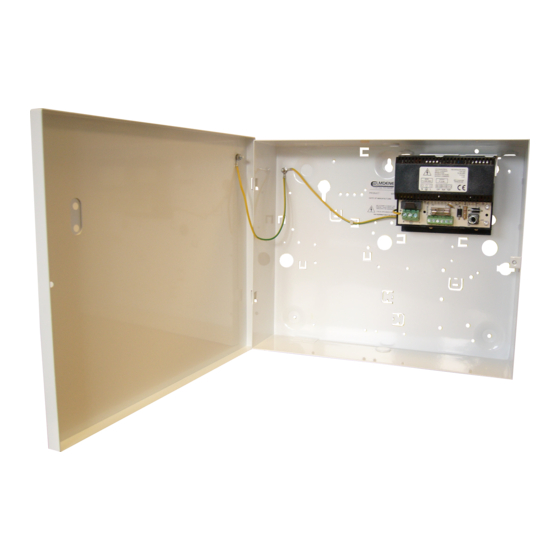

13.8vdc 4A SwitchMode Power Supply, Chassis Mounted
Features
High efficiency cost effective power supply ideal for use in Security, Access Control and general
PSU applications. Featuring a regulated 13.8vdc output supplying continuous full rated current to
load and a universal mains voltage input. Standby battery recharging is achieved within 24h.
Continuous full rated current to load.
•
Standby battery recharge to 80% within 24 hours.
•
Load output features full electronic short circuit and overload protection under mains
•
operation.
Mains transient protection circuit.
•
Lid tamper detection
•
Green mains present LED.
•
Compliance
This power supply unit meets the essential requirements of the following European Directives:
Low Voltage 73/23/EC
Input Specification
Voltage
Frequency
Max input current
Mains Input Fuse
Output Specification
Voltage
Ripple
Max load Current
Overload
Output Fuse
Standby Battery
Battery Capacity
Recharge Time
Battery Fuse protection
EMC 89/336/EC
90 - 264vac
50-60Hz
1.8A @ 90 vac
T3.15A 20mm 230v HRC
13.6 – 14.2Vdc (13.8 nominal) on mains power
150mV pk – pk max
4.0A continuous
Electronic shutdown until overload / short circuit removed.
F4.0A 20mm glass
1 x 8Ah Valve Regulated Lead Acid (NP7 size)
24hours to 80% from 100% discharge
F1.0A 20mm glass
TEL: +44 (0) 2392 696638
FAX: +44 (0) 2392 660483
www.elmdene.co.uk
WEEE 2002/96/EC
RoHs 2002/95/EC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elmdene G13804NU
Summary of Contents for Elmdene G13804NU
- Page 1 ELMDENE INTERNATIONAL LIMITED 3 KEEL CLOSE TEL: +44 (0) 2392 696638 INTERCHANGE PARK FAX: +44 (0) 2392 660483 PORTSMOUTH HAMPSHIRE www.elmdene.co.uk PO3 5QD, UK G13804NU 13.8vdc 4A SwitchMode Power Supply, Chassis Mounted Features High efficiency cost effective power supply ideal for use in Security, Access Control and general PSU applications.
-
Page 2: Operating Instructions
Local Indicators MAINS LED (Green) Mains present Mechanical Chassis Dimensions (mm) 127 x 65 x 160 (w x h x l) Fixing holes 4 x Ø4.0mm on 132 x 119 pitch Environmental Temperature -10 to +40° C (operating) 95% RH non-condensing -20 to +80°... - Page 3 Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the battery manufacturer’s instructions and all local and national regulations. The packaging supplied with this product may be recycled. Please dispose of packaging accordingly. www.elmdene.co.uk Specifications subject to change without notice.
