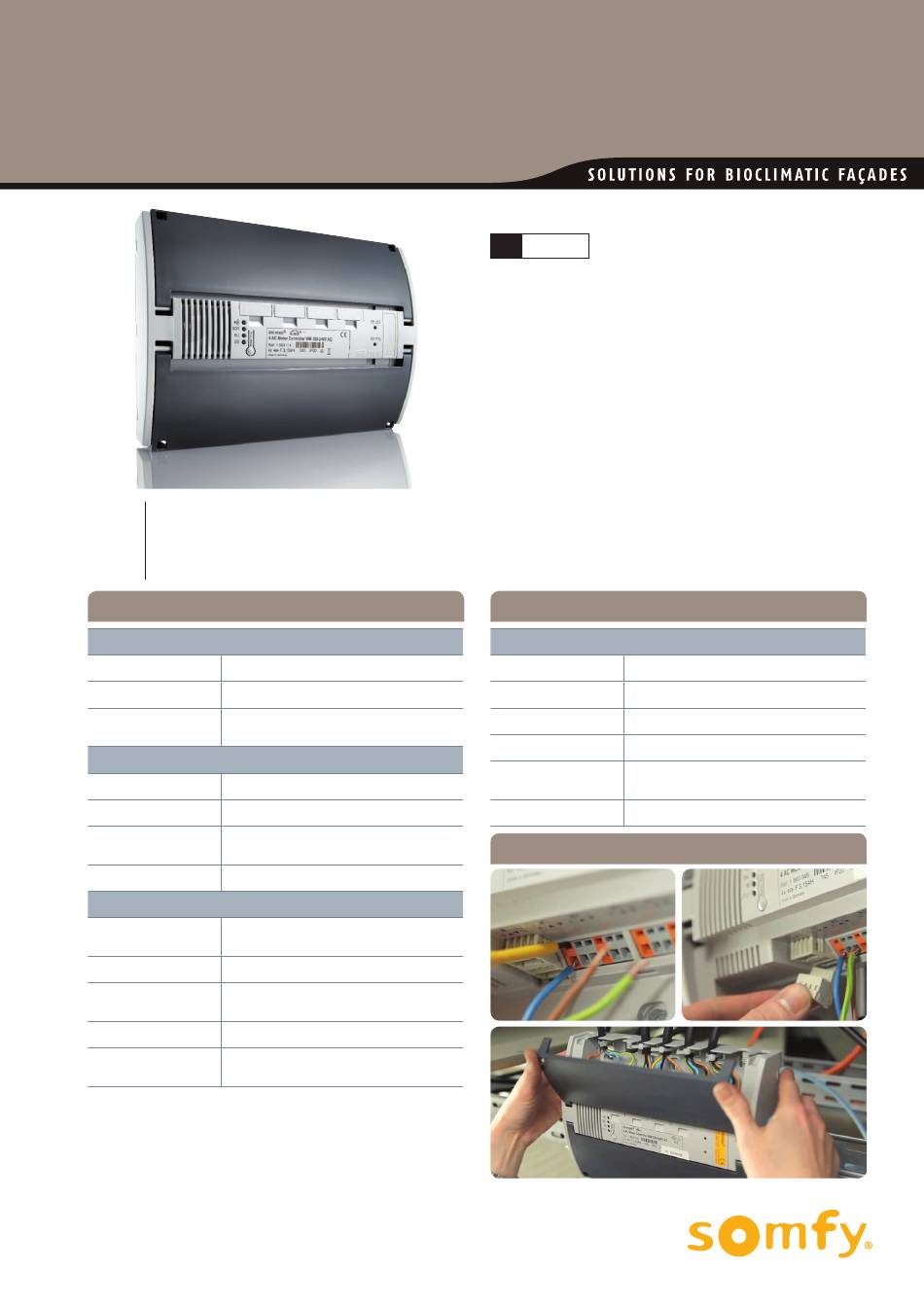

SOMFY ANIMEO IB+ Quick Start Manual

ANIMEO IB+ MOTOR CONTROLLER 4DC SM
SM Surface mounting version
Accessories:
Animeo 24 VDC/4.5A Power supply (1860093)
Somfy RTS plug-in card (PN 1860105)
Somfy EnOcean plug-in card (PN 1860220)
i n p u t s
Power
Connector type Quick operation spring-loaded connectors
Number 2 doubled connections (main and through)
Recommended cable Min : 3 x 1.5 mm²
section Max : 3 x 2.5 mm²
Dry contact local control
Connector type Quick operation spring-loaded connectors
Number 4
Recommended cable Min : 3 x 0.8 mm²
section Max : 3 x 2.5 mm²
Maximum cable length 100m
Control bus
Quick operation detachable spring-loaded
Connector type
connectors
Number 2: doubled connections (main and through)
Recommended cable Min : 4 x 0.8 mm² twisted where possible
section Max : 4 x 1.5 mm² twisted where possible
Maximum cable length 1000m
Maximum supported
100
devices per bus line
PN 1860085
Functional description
Motor controller for individual or group control of up to 4 Somfy
24V DC standard motors. The Animeo IB+ control bus manages up
to 100 motor controllers per zone, extending the capabilities of
the solar shading management system to the requirements of the
building as to the daylight management strategy and the end user
visual and thermal comfort.
In addition to the network capabilities, this controller can also be
operated locally via a standard hardwired wall switch (dry contact)
or a wireless operated local switch thanks to the range of plug-in
cards available.
o u t p u t s
Motor outputs
Conector type Quick operation spring-loaded connectors
Number 4
Supported motors 24V DC standard Somfy motors
Max. number of motors 4
Recommended cable Min : 4 x 0.75 mm²
section Max : 4 x 2.5 mm²
Maximum cable length 20m
q u i c k i n s ta l l at i o n a n d s e t u p
