animeo
IB+

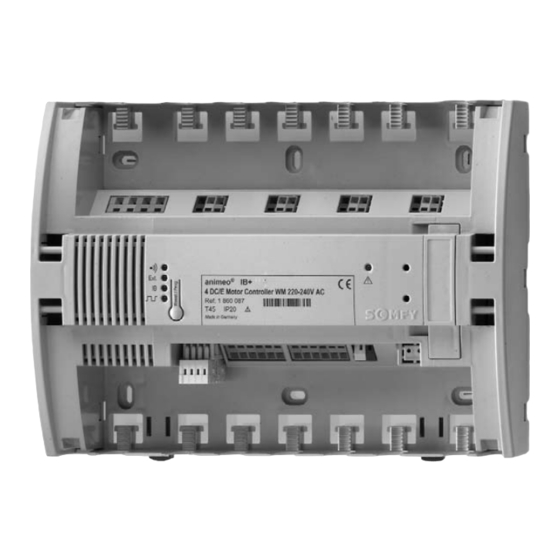

Motor Controller WM 4DC/E
Installation guide
The animeo 4 DC/E Motor Controller 220-240 V AC is designed
to control motors of the concept 25 motor range (24 V DC)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Animeo IB+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOMFY Animeo IB+

Summary of Contents for SOMFY Animeo IB+

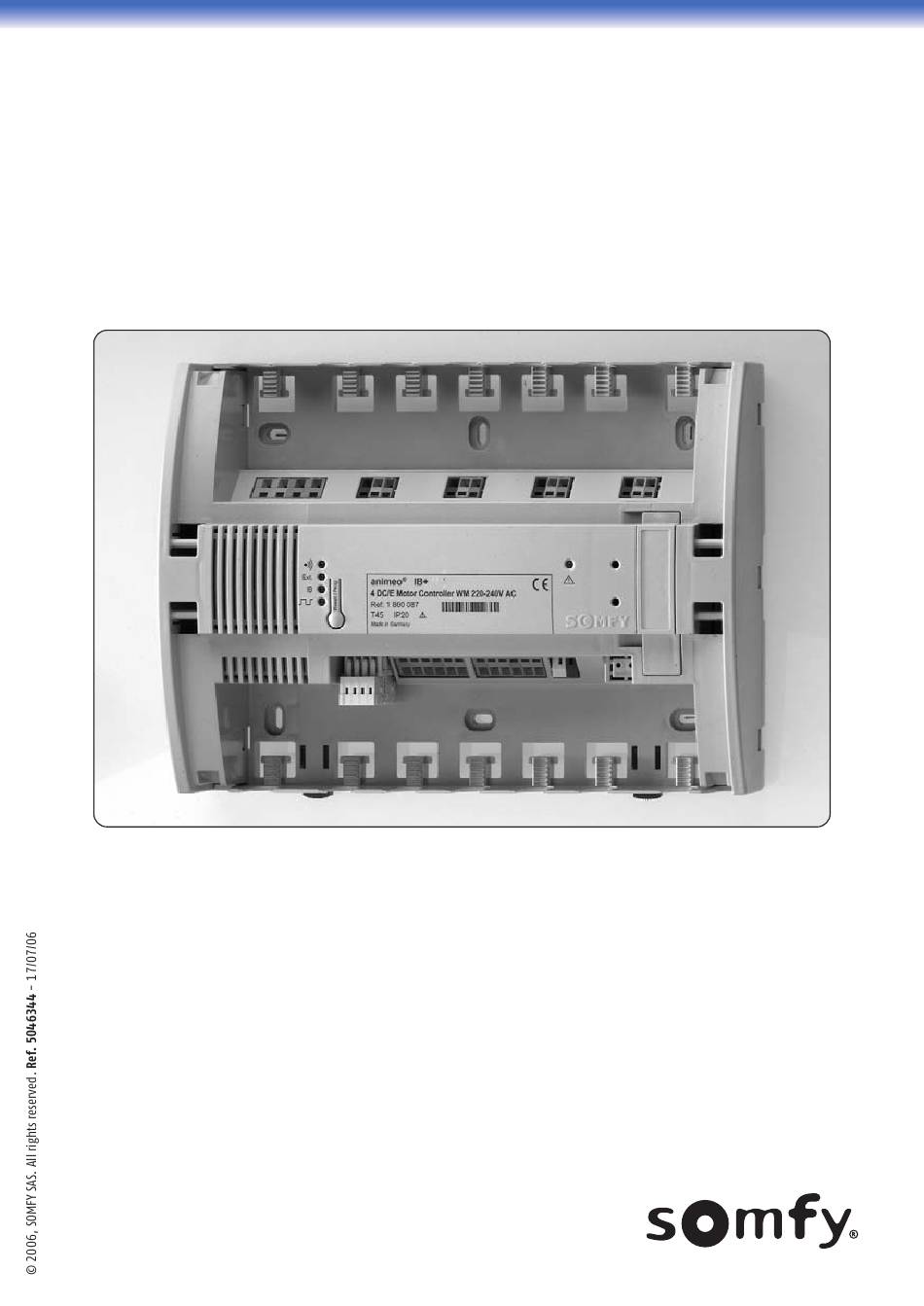

  • Page 1 ® animeo Motor Controller WM 4DC/E Installation guide The animeo 4 DC/E Motor Controller 220-240 V AC is designed to control motors of the concept 25 motor range (24 V DC)
  • Page 2 Before installation, please read and follow these instructions. An incorrect installation could lead to serious injury. The product must be installed by a qualified electrician. SOMFY’S liability for defects and damages is excluded if they were caused by disregard of the instructions. Keep these instructions for future reference.

  • Page 3: Table Of Contents

    Table of Contents Definitions Mounting Choose the optimal location ..................... . Fix the device .

  • Page 4: Definitions

    0. Definitions The * symbol in the main text refer to the following terminology: Running time/length It is the dimension of the end-product. Into the software, the running time refers to the DCE and the unit is mm, the running length refers to the DC and the unit is second. Tilting time/length Impulses (DCE) or seconds (DC) for the slat to orientate from 90°...

  • Page 5: Mounting

    1. Mounting Choose the optimal location min.: 63 mm 120 mm 140 mm Fix the device Wall mounted DIN rail Connect power supply and wiring to other controls (cabling recommendations) > 10 cm...

  • Page 6: Fasten Cables With The Cable Ties

    Fasten cables with the cable ties max.: 6 mm Stick the ID number on the building plan To identify where the Motor Controller is located:...

  • Page 7: Wiring

    LW 25, B44, B83 LT 28 B73 junction junction junction junction junction junction -mains 230V 50Hz Somfy animeo IB+ Ext. 4 DC/E Motor Controller WM 220-240V AC 1860087 animeo ID-Nr.: IB+ In IB+ Out Ext. Communication line Communication line from...

  • Page 8: Motor Outputs

    2. Wiring 2.2.2 Motor outputs Max. current per output: 500 mA Compatible with the following SOMFY motors in combination with CTS 25 enrolling system for venetian blinds: LV 25-B44, -B64 LW 25-B44, -B83 LW 25-E83 LT 28-B73 DC mode DC mode...

  • Page 9: Configuration

    3. Configuration Reset / Prog button With this button, you can access the basic configuration of the Motor Controller. 3.1.1 Selection of end product type Local push button ergonomics and the type of end products to be preselected: - Venetian blind, European mode * - Venetian blind, US mode * - Screen mode * The default mode of function is venetian blind, US mode *.

  • Page 10: Resetting The Motor Controller To Factory Settings

    3. Configuration 3.1.3 Resetting the Motor Controller to factory settings Ext. Ext. Ext. Press 14 s Release Set up of the Motor Controller This section describes the set up of the running time/length *, the tilting time/length * and an intermediate position of the Motor Controller through the remote control or the wired switch.

  • Page 11: Intermediate Position

    3. Configuration 3.2.2 Intermediate position A position that is set by the user with the local control. This can be any position between the upper and the lower end limit. The intermediate position could only be set after running & tilting times/lengths * are set! 3.2.2.1 To set up an intermediate position Set the end...

  • Page 12: Diagnostics

    4. Diagnostics LEDs of the Motor Controller The LEDs on the front side of the Motor Controller can be used to have: - Communication indications during the use (remote signal, IB+, …) - A reduced overview of the configuration - A first level diagnostic Communication indications during the use Reception of remote message .

  • Page 13: Indication Of The Motor(S) Concerned By The Problem

    4. Diagnostics 4.4.2 Indication of the motor(s) concerned by the problem Motor 1 ....Ext. Motor 2 ....Motor 3 .
  • Page 14 Tel.: (961) 1 391 224 Tel.: (46) 40 165 900 PR CHINA HONG KONG MEXICO SWITZERLAND SOMFY China Co Ltd. SOMFY Co. Ltd. SOMFY MEXICO SA de CD SOMFY AG www.somfy.com.ch www.somfy.com www.somfy.com.mx www.somfy.ch Tel.: (86-21) 6280 9660 Tel.: (852) 2523 63 39 Tel.: (11) 525 576 3421...
