SOMFY Animeo Series Instructions Manual

Knx 4 ac motor controller wm/drm 220-240v ac
Hide thumbs Also See for Animeo Series:
Table of Contents

Advertisement

Quick Links

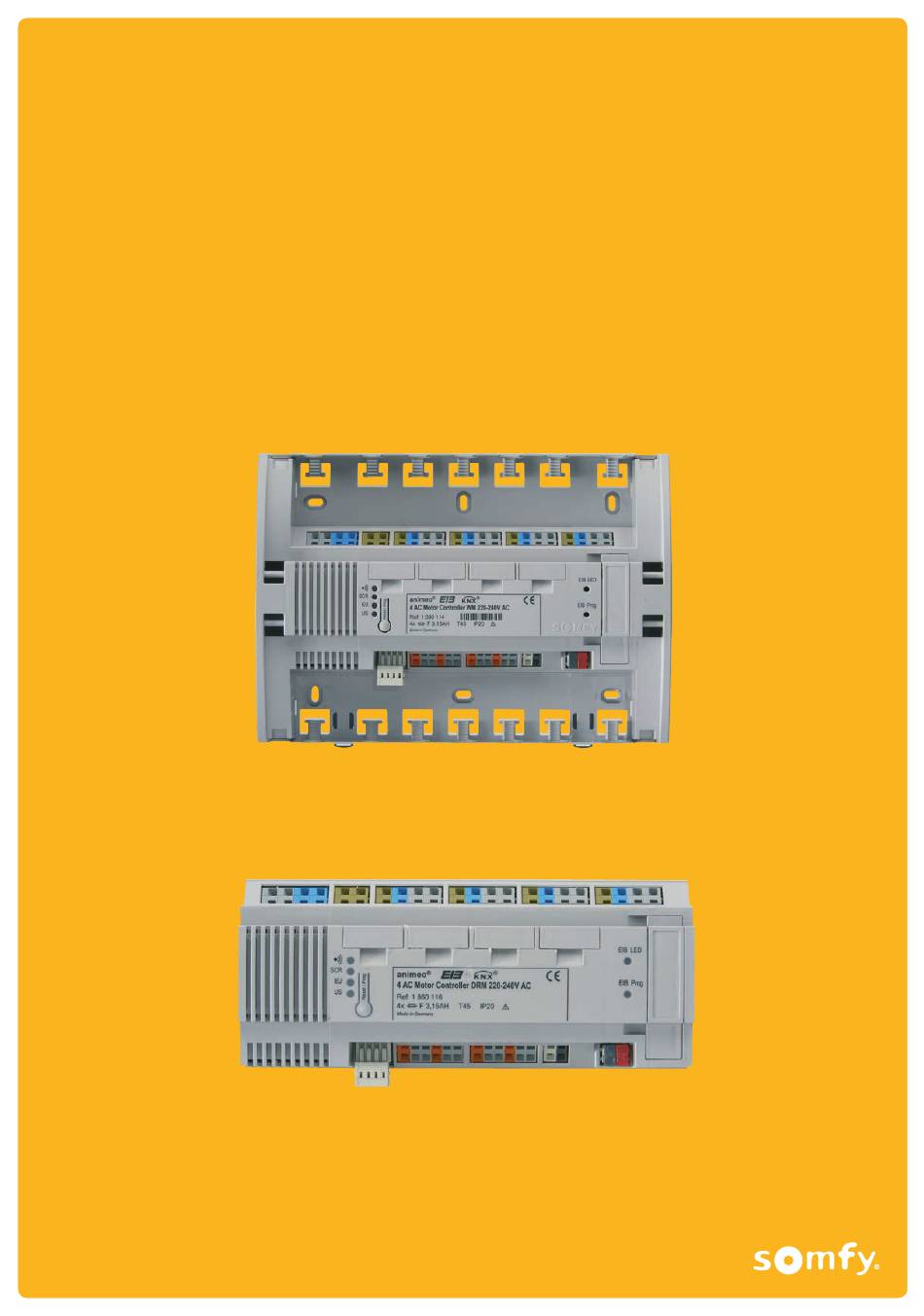

somfy.com
animeo

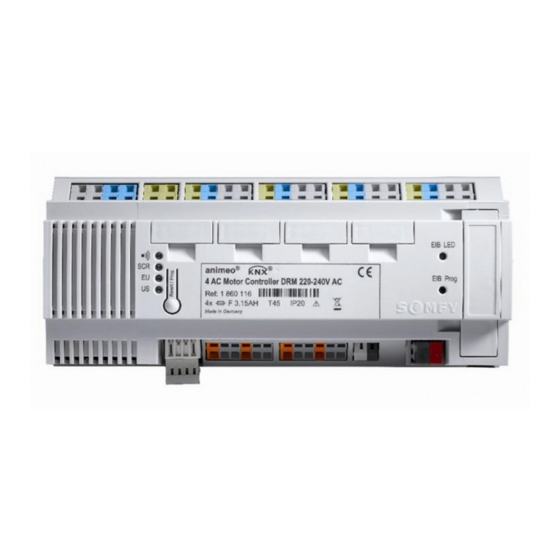

KNX 4 AC Motor Controller
WM/DRM 220-240 V AC
Instructions
© 2007 - 2011, SOMFY SAS. ALL RIGHTS RESERVERD. REF. 5071074 - 2011/07/31
®
Ref. 1860114
Ref. 1860116

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Animeo Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOMFY Animeo Series

Summary of Contents for SOMFY Animeo Series

  • Page 1 ® KNX 4 AC Motor Controller WM/DRM 220-240 V AC Instructions Ref. 1860114 Ref. 1860116 © 2007 - 2011, SOMFY SAS. ALL RIGHTS RESERVERD. REF. 5071074 - 2011/07/31...

  • Page 2: Table Of Contents

    These instructions apply to KNX 4 AC Motor Controller WM/DRM 220 - 240 V AC from version B onwards!!! Before starting up it is necessary to follow the safety instructions in this instruction. SOMFY cannot be held liable for de- fects and damages when these have been caused as a result of not following instructions (wrong installation, incorrect service etc.).

  • Page 3: Introduction

    • Plug and Play! Any time extendable with animeo RTS radio module (Ref. 1860105). Without additional wiring the four motors can be controlled individually per radio using Somfy RTS technology. • Alternatively the animeo KNX RTS Receiver (Ref. 1860191) can be used. Here, without additional wiring, up to 5 universal KNX radio binary inputs can be gained (e.g., light ON/OFF with DIM).

  • Page 4: Definitions

    Manual Command A manual command is a command which is generated by local conventional push buttons or by a Somfy RTS radio hand transmitter. A telegram which is sent on the objects 0-7 (bit commands) is also understood as a manual command.

  • Page 5: Installation

    L N N PE PE 230 V 50 Hz F 3.15 AH F 3.15 AH F 3.15 AH F 3.15 AH Somfy KNX LED animeo KNX Ext. 4 AC Motor Controller WM 220-240 V AC KNX Prog 1860114 / 1860116 Input...

  • Page 6: Checking The Move Direction Of The End Products

    The "US"-LED blinks regularly when the mains (230 V) and the KNX bus voltage are connected actively on the device. The device is ready for operation when the "US" LED blinks. WIRING Connected to ... Cabling Twisted pair Max. length Motors Min.: 4 x 0.75 mm /19 AWG...

  • Page 7: Settings In The Delivery State

    Selection of different user ergonomics Using the Reset/Prog button the press button user ergonomics for the local push button inputs or Somfy RTS radio hand transmitter can be deter- mined. These settings are possible only in the delivery state, before the device is programmed with ETS software or after the device is unassigned with the ETS.

  • Page 8: Manual Learning-In Of Move And Turn Times

    Alternatively to the conventional push buttons, the settings can also be done using the Somfy RTS Transmitter and animeo RTS Radio Module (Ref. 1860105). A setting using animeo KNX RTS Receiver (Ref. 1860191) and Somfy RTS Transmitter is not possible! Learning-in length of move and turn times 0.5 s...

  • Page 9: Resetting To The Delivery State

    Resetting to the delivery state 1. When the device has not been programmed with the ETS software. Full RESET: The settings made via the Reset/Prog push button can be set back to the delivery state by pressing the Reset/Prog button for 10 seconds. 2.

  • Page 10: Communication Objects

    Communication objects At the most, 150 communication objects are available for use, but not all at once. A maximum of 250 group addresses can be connected. Object name Model DPT_ID Description Motor 1 UP / DOWN, CLOSED / OPEN 1 Bit 1.001 If a telegram with the value "0"...
  • Page 11 Object name Model DPT_ID Description Motor 1-4 Move to IP 2 1 Bit 1.001 If a telegram with the value "1" is received on this communication object, the blinds move to the Intermediate Positition (IP) 2 param- etered in the ETS parameters. With the receiving of a telegram with the value "0"...
  • Page 12 Object name Model DPT_ID Description Motor 1-4 Status positions 1 Bit 1.001 If a telegram with the value "1" or "0" is received on this com- munication object, the current status positions of the corresponding blinds are sent to the bus (objects 38-45). Motor 1 Upper end position 1 Bit 1.001...
  • Page 13 Object name Model DPT_ID Description Switch input 1: STEP/STOP 1 Bit 1.001 A short pressing of the button on input A generates a telegram on this communication object with the value "0". The slat turns UP. When the Venetian blinds are making a move then a short pressing of the button generates a stop command on input A.
  • Page 14 Object name Model DPT_ID Description Switch input 3: F, 8-Bit value 1 Bit 5.004 See object description 75, F instead B Switch input 3: E/F, Dimming 1 Bit 1.001 See object description 76, E/F instead A/B Switch input 3: E/F, Dimming, Value 4 Bit 3.007 See object description 77, E/F instead A/B...
  • Page 15 Object name Model DPT_ID Description 118 Radio input 1: Dimming ON/OFF or 1 Bit 1.001 ON/UP: A short pressing of the "UP" button on channel 1 of the learned-in Slow tilting UP/DOWN handheld radio transmitter generates a telegram with the value "0" on this communication object.
  • Page 16 Object name Model DPT_ID Description 139 Radio input 3: Dimming Brighter/Darker or 4 Bit 3.007 See object description 110, channel 3 instead channel 1 Slow tilting OPEN/CLOSE 140 Radio input 4: UP / DOWN 1 Bit 1.001 See object description 110, channel 4 instead channel 1 141 Radio input 4: STEP / STOP 1 Bit 1.001...

  • Page 17: Parameters

    Parameter The selection options of the single parameters are described in each case. The defaults are printed in italics. In the following illustrations of the different parameter cards the maximum number of parameters is shown. Besides this and depending on the parameter settings, objects which are not required are blended out.
  • Page 18 Motor 1…4 Automatic / manual functions Selection options:  None  Priority automatic functions  Priority manual functions  None: The move commands are carried out in the incoming order sequence.  Priority automatic function: If an automatic command (1 byte move command) occurs before a manual command (1-Bit move command), all manual commands are closed.
  • Page 19 Using push button binary input Selection options:  No  Yes With the parameter "Yes", four further menu index cards open (push button binary input 1…4). Now the local push button inputs can be connected over the corresponding objects (70-101). A conventional push button can thus be used for the most different of functions. For example, Switching, Venetian blind function, Dimming or Sending a value.

  • Page 20: Menu Index Card "Motor 1

    When the local push button inputs are used as universal push button inputs, the operating ergonomics are defined over the corresponding parameters (short/long pressing of the push button). The operating ergonomics using a Somfy RTS radio transmitter remains unchanged. For an explanation of EU/US and screen ergonomics see chapter 1 Definitions.
  • Page 21 Running time UP / CLOSE Basis 0.1 sec (1 - 320 sec) Selection options:  120  0.1 - 320 seconds The time parametered here is the maximum running time from the lower end position to the upper end position, or the maximum running time which a window motor needs to close the corresponding window.
  • Page 22 Security position Low priority Selection options:  Upper end limit  Lower end limit  Intermediate position 1 (IP 1)  Intermediate position 2 (IP 2)  Ignore security  Stop  Close window  Open window The "Security position low priority" for the corresponding blind is determined with this parameter. If a telegram with the value "1" is received on one of these communication objects (objects 27-31) the corresponding blind moves to the position parametered in the ETS parameters.

  • Page 23: Menu Index Card "Functions Motor 1

    Menu index card "Functions Motor 1 ... 4" "Functions Motor 1 ... 4" Four single menu index cards (Functions motor 1 … 4) become visible if on the menu card index "General", the basic setting of the blinds on "Individual" is parametered. A menu index card (Motor 1 - 4) becomes visible if on the menu card index "General", the basic setting of the motors is parametered to "Combined".
  • Page 24  Yes Local push buttons inputs and the Somfy RTS radio signal can be blocked per object (57-60) using this parameter. If a telegram with the value "1" is received on the corresponding object during a motor movement, this turn is carried out up to the end. Only after completion are any further commands blocked which are generated via local push button inputs or Somfy RTS radio signals.

  • Page 25: Menu Index Card "Push Button Binary Input 1

    Menu index card "Push button binary input 1 ... 4" "Push button binary input 1 ... 4" General information for push button binary input Four different basis functions can be selected for each push button input:  Venetian blind UP/ DOWN ...
  • Page 26 Type of contact input A Selection options:  Normally open  Normally closed Over this parameter it is defined which type of contact is at the local input A. Normally open: The contact at the local input is activated closed and not activated opened. Normally closed: The contact at the local input is activated opened and not activated closed. Type of contact input B Selection options: ...
  • Page 27  Rising ON, falling OFF If a rising edge at the local input appears, the object value "On" is generated. If a falling edge at the local input appears, the object value "Off" is generated. The duration of the activation is not evaluated. ...
  • Page 28 Contact A und B Cyclic sending of status Selection options:  No cyclic sending  ON  OFF  ON and OFF With this parameter it is defined whether the corresponding switch value of the communication object should be transmitted cyclically. ...
  • Page 29 "Push button binary inputs 1 ... 4" Basic function Selection options:  Venetian blind UP / DOWN  Switch/Dry contact  8-Bit value (rising edge)  Dimming Contact A Value on rising edge (0 - 255)  0 Selection options: ...
  • Page 30 "Push button binary input 1 ... 4" Basic function Selection options:  Venetian blind UP / DOWN  Switch/Dry contact  8-Bit value (rising edge)  Dimming Longer operation (dimming) after Selection options:  0.5 seconds  0.3 - 0.5 seconds This parameter defines the activity time of the corresponding push button which makes a distinction between the sending of a switching telegram and a dimming telegram.
  • Page 31 Contact type input A Selection options:  Normally open  Normally closed With this parameter it is defined which contact type is at the corresponding local input. Normally open: The contact at the local input is activated closed and not activated open. Normally closed: The contact at the local input is activated open and not activated closed.

  • Page 32: Menu Index Card "General: Push Button Binary Input 1-4

    Menu index card "General: Push button binary inputs 1 - 4" "General: Push button binary inputs 1 - 4" The parameters set here refer to the push button inputs 1 - 4. Additional start-up delay Selection options:  0 seconds ...

  • Page 33: Menu Index Card "Electronic Motors

     0 - 100 seconds This parameter defines the required start-up time of an applied electronic motor, as for examle, Somfy WT motor 200 ms. If electronic motors are controlled using this Motor Controller, it is imperative to set the start delay time of the elec- tronic motor in the settings of the Motor Controller device.

  • Page 34: Menu Index Card "Bus Safety

    Menu index card "Bus safety" "Bus safety" On this menu index card, the reaction can be defined for every single motor output with bus power failure and bus power return. MOTOR 1 ... 4 Reaction at bus power failure Selection options: ...

  • Page 35: Menu Index Card "Feedback Motor Positions

    Automatic Cascading Selection options:  No  Yes If this parameter is set on "Yes", the motor outputs with one second delay in each case move to the corresponding position. This delay time is taken into account with the start-up of the positions, which are generated from the settings "Reaction with bus voltage return" and "Reaction with mains voltage return (230 V)".
  • Page 36 MOTOR 1 ... 4 Feedback of value (0/255) Selection options:  UP / DOWN position 100 %  Slat position  UP / DOWN and slat position value (255/0)  None  UP / DOWN position Using this parameter the position UP/DOWN is sent on the bus for the corresponding motor depending on the parameter "Type of messaging" "0"...

  • Page 37: Menu Index Card "General: Radio Binary Input

    Menu index card "General: Radio binary input" "General: Radio binary input" General information for radio input For every radio input there are five different basis functions for selection: Selection options:  Venetian blind UP / DOWN  Switch/Dry contact  8-Bit value (rising edge) ...

  • Page 38: Menu Index Card "General: Radio Binary Input 1

    6.10 Menu index card "Radio binary input 1...5" "Radio binary input 1...5" Basic function Selection options:  Venetian blind UP / DOWN  Switch/Dry contact  8-Bit value (rising edge)  Dimming  Venetian blind turn slowly Long operation move after Selection options: ...
  • Page 39  Off If the "my" button in the radio transmitter is pressed, the object value "Off" is generated. The duration of the activity is not evaluated.  Toggle If the "my" button in the radio transmitter is pressed, the object value "At" is generated. The duration of the activity is not evaluated. ...
  • Page 40 "Radio binary input 1...5" Basic function Selection options:  Venetian blind UP / DOWN  Switch/Dry contact  8-Bit value  Dimming  Venetian blind slow tilting Function of the "UP" button Selection options:  On  Off On ("1") Off ("0") Toggle ("1/0") ...
  • Page 41 "Radio binary input 1...5" Basic function Selection options:  Venetian blind UP / DOWN  Switch/Dry contact  8-Bit value  Dimming  Venetian blind slow tilting Function of the "UP" button Selection options:  0  0 - 255 0 - 255 With this parameter the value is set which is transmitted while pressing the "UP"...
  • Page 42 "Radio binary input 1...5" Basic function Selection options:  Venetian blind UP / DOWN  Switch/Dry contact  8-Bit value  Dimming  Venetian blind slow tilting Long operation after Selection options:  0.5 seconds  0.3...5.0 seconds This parameter defines the pressing time of the corresponding transmitter push button (Up/Down) which makes a distinction between the sending of a short-term telegram (On/Off) and a long-term telegram (Brighter/darker dimming).
  • Page 43 "Radio binary input 1...5" Basic function Selection options:  Venetian blind UP / DOWN  Switch/Dry contact  8-Bit value  Dimming  Venetian blind slow tilting Long operation (move) after Selection options:  0.5 seconds  0.3...5.0 seconds This parameter defines the pressing time of the corresponding transmitter push button (Up/Down) which makes a distinction between the sending of a short-term telegram (Up/Down) and a long-term telegram (Open/Close).

  • Page 44: Diagnosis

    Diagnosis LEDs on the animeo KNX Motor Controller The LEDs on the animeo KNX Motor Controller can be used for the following functions:  Functionality of the device during operation (230 V / KNX bus voltage connected, indication via radio signals, ...) ...

  • Page 45: Push Button Configuration Of The Radio Transmitters

    Push button configuration of the radio transmitters Dimming/Venetian Venetian blind UP / DOWN Switch (1 bit) 8-Bit value blinds turn slowly UP button UP / Step / Stop ON / OFF / Toggle / No function VALUE ON / Brighter "my"...

  • Page 46: Technical Data

    90 x 210 x 63 mm (12TE) Protection degree IP 20 IP 20 Protection class II, looped through PE connector, depending on installation Conformity www.somfy.com/CE www.somfy.com/CE The Motor Controller is an electronically and manually-operated, independently-mounted control. Software class: Action: Type 1 Pollution degree:...
