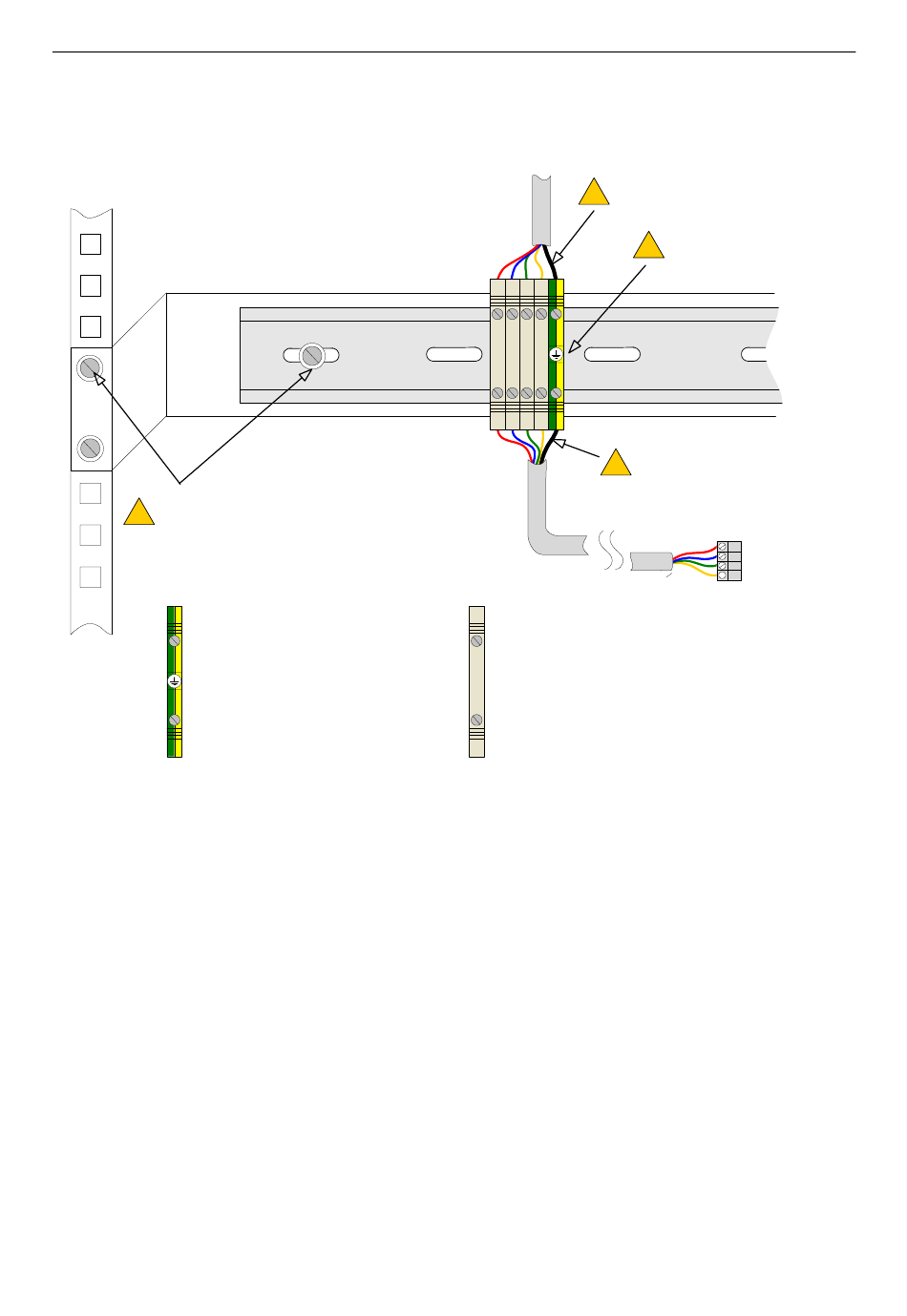

Figure 3
Audio I/O and Other Signal Termination
RACK
DIN RAIL ELECTRONICALLY BONDED TO THE RACK
!
EARTH TERMINAL
WEIDMÜLLER PART NUMBER: WPE4
VAR8(EN54) and Variants – Installation Guide
U-0450-1818.doc – Issue: 01 complete, approved
Page 17 of 20
FIELD WIRING
!
SCREEN TAIL < 3 cm
!
!
SCREEN TAIL < 3 cm
RACK WIRING
SIGNAL TERMINAL
WEIDMÜLLER PART NUMBER: WDU2.5
EARTH TERMINAL BONDED
TO THE DIN RAIL
DIN RAIL
