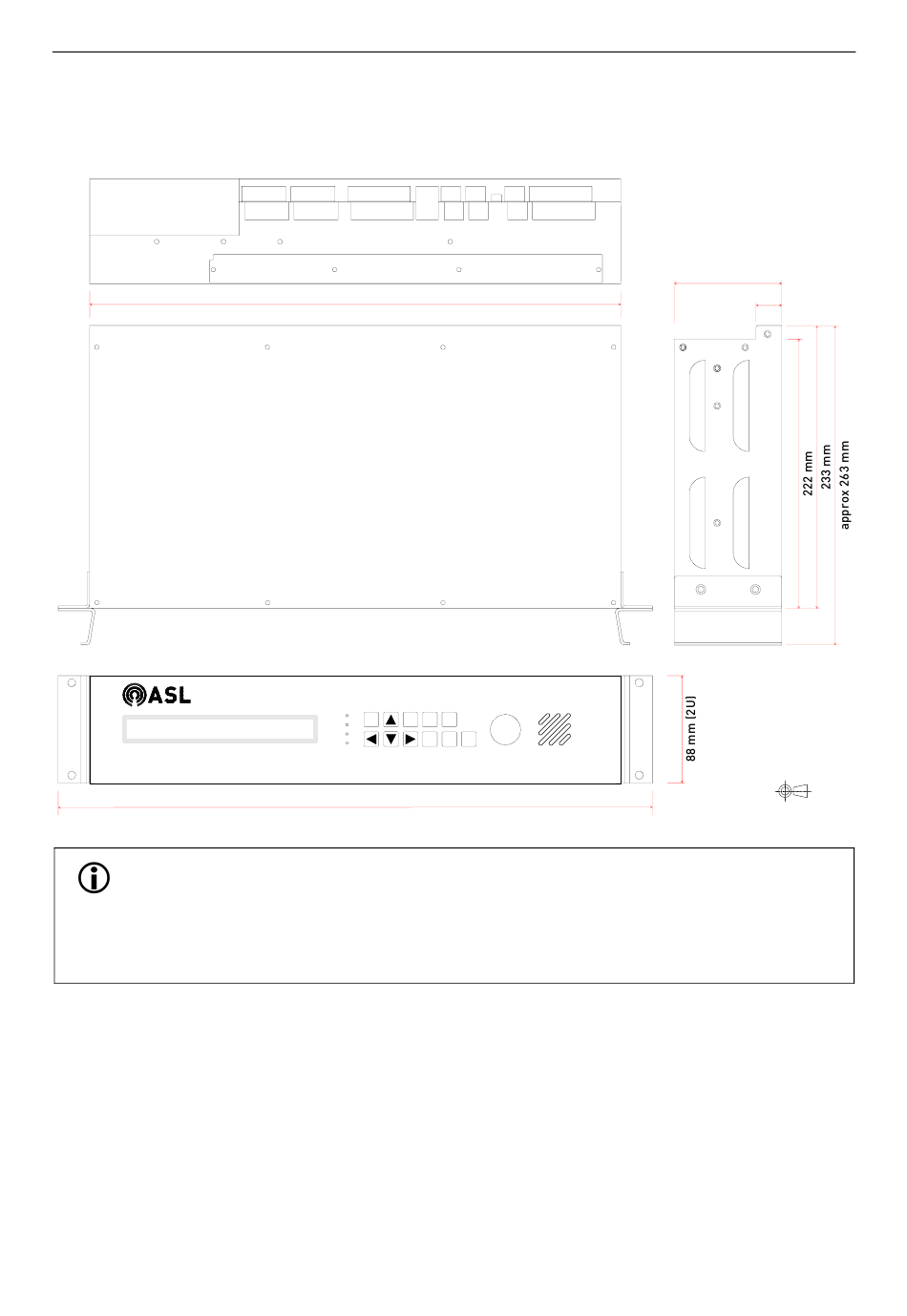

Mechanical Dimensions

1) ASL recommend a rear clearance depth of at least 110 mm for cabling.
A 19-inch standard rack with 600 mm depth provides the required room for installation including the
rear cabling.
2) In order for customers to produce their own site documentation drawings of the front and rear panel
are available from ASL.
VAR8(EN54) and Variants – Installation Guide
436 mm
power
FAULT FAULT
SELECT BACK
ACCEPT CLEAR
voice alarm
system fault
LAMP
DEFAULT
TEST
fault
approx 483 mm
U-0450-1818.doc – Issue: 01 complete, approved
Page 18 of 20
DSP Audio Router
AUDIO
MON
88 mm
20 mm
THIRD ANGLE PROJECTION
