  • Page 2 Edition Notes The Maverick Storm 1 Spot User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Maverick Storm 1 Spot as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and Maverick Storm 1 Spot are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Followspot Mode ...................... Menu Map ........................ Configuration (DMX, Art-Net™, sACN) ..............Control Mode........................13 Control Personalities ...................... 13 Starting Address......................13 Network Setup........................ 13 IP Mode........................... Universe.......................... Manual IP Address......................Subnet Mask ........................Maverick Storm 1 Spot User Manual Rev. 2...
  • Page 4 Web Server ......................Gobo Wheels ......................Gobo Dimensions for Gobo Wheel 1 ................24 Gobo Replacement ......................25 Color Wheel ......................5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Returns ......................Contact Us......................Maverick Storm 1 Spot User Manual Rev. 2...

  • Page 5: Before You Begin

    This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Page 1 of 30 Maverick Storm 1 Spot User Manual Rev. 2...

  • Page 6: Safety Notes

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product and limit the overall intensity. Maverick Storm 1 Spot User Manual Rev. 2 Page 2 of 30...

  • Page 7: Introduction

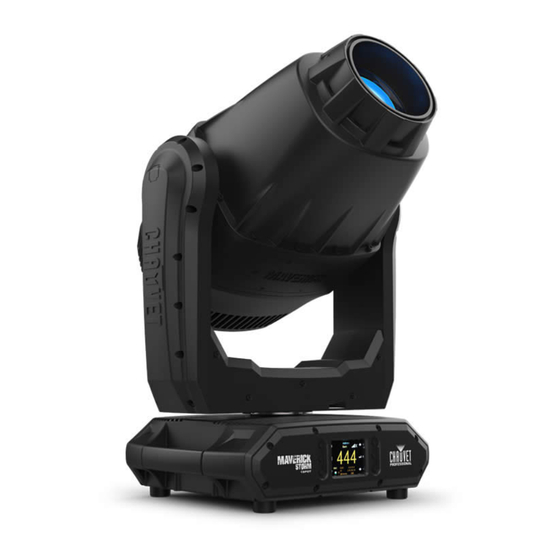

    2. Introduction Description The Maverick Storm 1 Spot features CMY + CTO color mixing, a color wheel, animation wheel, and a fast 6.5:1 zoom ratio. It also has an integrated and controllable sunshield for protecting the optical system when fixture in not in use. The Maverick Storm 1 Spot offers static, rotating, and animation effects from its 2 gobo wheels (1 rotating, 1 static), animation wheel, 2 independent and overlapping prisms and 2 frost options: super-light and medium.

  • Page 8: Product Dimensions

    19.61 in 498 mm 28.43 in 722 mm 15.34 in 390 mm 9.84 in 250 mm 18.48 in 470 mm 4.84 in 123 mm 12.56 in 319 mm Maverick Storm 1 Spot User Manual Rev. 2 Page 4 of 30...

  • Page 9: Setup

    3. Setup AC Power The Maverick Storm 1 Spot has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 10: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Maverick Storm 1 Spot comes with a bracket to which you can attach a mounting clamp directly. Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product.

  • Page 11: Signal Connections

    DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. DMX Linking You can link the Maverick Storm 1 Spot to a DMX controller using a 5-pin DMX connection or a WDMX connection. For more information about DMX, read the DMX primer at: https:// www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf.

  • Page 12: Operation

    4. Operation Touchscreen Control Panel The Maverick Storm 1 Spot has a touchscreen display as well as 6 control buttons. Navigate the menu structure by pressing the buttons, touching the images of the buttons on the sides of the display, or touching the desired menu option on the display directly.

  • Page 13: Menu Map

    Blackout while gobo wheels moving Lock the buttons and touch Lock Screen screen. Passcode: 0920 Do not swap pan and tilt Swap XY Pan controls tilt, tilt controls pan Page 9 of 30 Maverick Storm 1 Spot User Manual Rev. 2...
  • Page 14 DMX daisy chain Pan/Tilt Iris/Prism Color/CMY Reset Reset individual functions or NO/YES Function all functions from start-up Gobo/Gobo Rotate Frost Factory Settings Reset to factory default settings Maverick Storm 1 Spot User Manual Rev. 2 Page 10 of 30...
  • Page 15 _ _ _ _ _ _ _ _ Shows current IP address SubMask _ _ _ _ _ _ _ _ Shows current Subnet Mask _ _ _ _ _ _ _ _ Shows current MAC address Page 11 of 30 Maverick Storm 1 Spot User Manual Rev. 2...
  • Page 16 _ _ _ Gobo2 Animation Animation Rotate Focus Focus Fine Focus Auto Zoom Zoom Fine Prism Prism Rotate Iris Frost Frost2 CMY Macro CMY Macro Speed Special Function Maverick Storm 1 Spot User Manual Rev. 2 Page 12 of 30...

  • Page 17: Configuration (Dmx, Art-Net™, Sacn)

    Use control configurations to operate the product with a DMX, Art-Net™, or sACN controller. Control Mode The Maverick Storm 1 Spot works with wired DMX, WDMX, Art-Net™, and sACN control signals. To select which protocol to use: 1. Go to the Settings main level.

  • Page 18: Control Channel Assignments And Values

    104  111 Gobo 2 shaking 112  119 Gobo 1 shaking 120  127 Open 128  191 Gobo scroll, slow to fast 192  255 Reverse gobo scroll, slow to fast Maverick Storm 1 Spot User Manual Rev. 2 Page 14 of 30...
  • Page 19 000  127 Rotating prism index 128  189 Prism rotation, fast to slow Prism Rotate 190  193 Stop 194  255 Reverse prism rotation, slow to fast Page 15 of 30 Maverick Storm 1 Spot User Manual Rev. 2...
  • Page 20 231  235 XY swap on 236  240 XY swap off 241  245 No function 246  250 XY smooth mode 251  255 XY fast mode Maverick Storm 1 Spot User Manual Rev. 2 Page 16 of 30...

  • Page 21: Dmx 26Ch

    104  111 Gobo 2 shaking 112  119 Gobo 1 shaking 120  127 Open 128  191 Gobo scroll, slow to fast 192  255 Reverse gobo scroll, slow to fast Page 17 of 30 Maverick Storm 1 Spot User Manual Rev. 2...
  • Page 22 128  191 Slow zoom out, fast zoom in (slow to fast) 192  255 Slow zoom in, fast zoom out (slow to fast) Frost 1 000  255 0–100% Frost 2 000  255 0–100% Maverick Storm 1 Spot User Manual Rev. 2 Page 18 of 30...
  • Page 23 231  235 XY swap on 236  240 XY swap off 241  245 No function 246  250 XY smooth mode 251  255 XY fast mode Page 19 of 30 Maverick Storm 1 Spot User Manual Rev. 2...

  • Page 24: Configuration (Settings)

    3. Select from 270 (270°), 180 (180°), or 90 (90°). Blackout on Movement To set the Maverick Storm 1 Spot to black out on pan or tilt movement, color wheel movement, or gobo wheel movement: 1. Go to the Settings main level.

  • Page 25: Loss Of Data

    1. Connect the Maverick Storm 1 Spot products to receive the Presets by a DMX daisy chain. 2. Make the Maverick Storm 1 Spot with the Presets to transfer the first in the DMX daisy chain. 3. Power on all of the products.

  • Page 26: Reset Function

    3. Select NO (to cancel) or YES (to reset the product configuration). Test Mode Auto Test To have the Maverick Storm 1 Spot automatically test all functions one after the other: 1. Go to the Test main level. 2. Select the Auto Test option.

  • Page 27: Web Server

    Operation Web Server The Maverick Storm 1 Spot Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control setup, manual testing of all functions, firmware updates, and the ability to change the Web Server password.

  • Page 28: Gobo Wheels

    Bars Mower Blade Circles Bolts Breakup Shower Glass Dots Ballistic Clouds Circuits Four Eyes Triangles Forest Rainbows Gobo Dimensions for Gobo Wheel 1 30 mm 25 mm IMAGE Maverick Storm 1 Spot User Manual Rev. 2 Page 24 of 30...

  • Page 29: Gobo Replacement

    8. Push the gobo holder inwards. DO NOT force the gobo holder into the gobo wheel slot. If correctly installed, the gobo holder should easily slide into the gobo wheel slot. Diagram Gobo Holder Gobo Retaining Ring Page 25 of 30 Maverick Storm 1 Spot User Manual Rev. 2...

  • Page 30: Color Wheel

    Operation Color Wheel Color Wheel Color # Description Orange Green Blue Magenta Maverick Storm 1 Spot User Manual Rev. 2 Page 26 of 30...

  • Page 31: Maintenance

    7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans with compressed air. Damage may result. Page 27 of 30 Maverick Storm 1 Spot User Manual Rev. 2...

  • Page 32: Technical Specifications

    Amphenol XLR Net RJ45 in/out 26 or 33 channels Ordering Product Name Item Name Item Code UPC Number Maverick Storm 1 Spot MAVERICKSTORM1SPOT 08011562 781462219109 UL 1573 CSA C22.2 No. 166 E113093 Maverick Storm 1 Spot User Manual Rev. 2 Page 28 of 30...

  • Page 33: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 29 of 30 Maverick Storm 1 Spot User Manual Rev. 2...

  • Page 34: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Maverick Storm 1 Spot User Manual Rev. 2 Page 30 of 30...
