STONEFIRE FREESTYLE FRAMING KIT
Note: This kit must be installed or serviced by a qualifi ed installer, service agency or gas supplier.
These instructions are to be used in conjunction with the main installation instructions for the above
listed model.
WARNING: If the information in these instructions is not followed exactly, a fi re or explosion
may result causing property damage, personal injury or loss of life.
The kit consists of a set of black sheet metal panels used to frame the 530 engine to accommodate the Front and the
Alhambra or Mesh Screen Doors. Combustible wall fi nish may contact the sides and top of the framing kit. The framing kit
may be installed fl ush or protruding from the wall fi nish but not recessed into the wall.
Insulation Pad
Top
Bracket
Heat
Duct
LH Side
Bracket
Frame
RH Side
Mounting
Bracket
Brackets
(4)
Bottom Panel

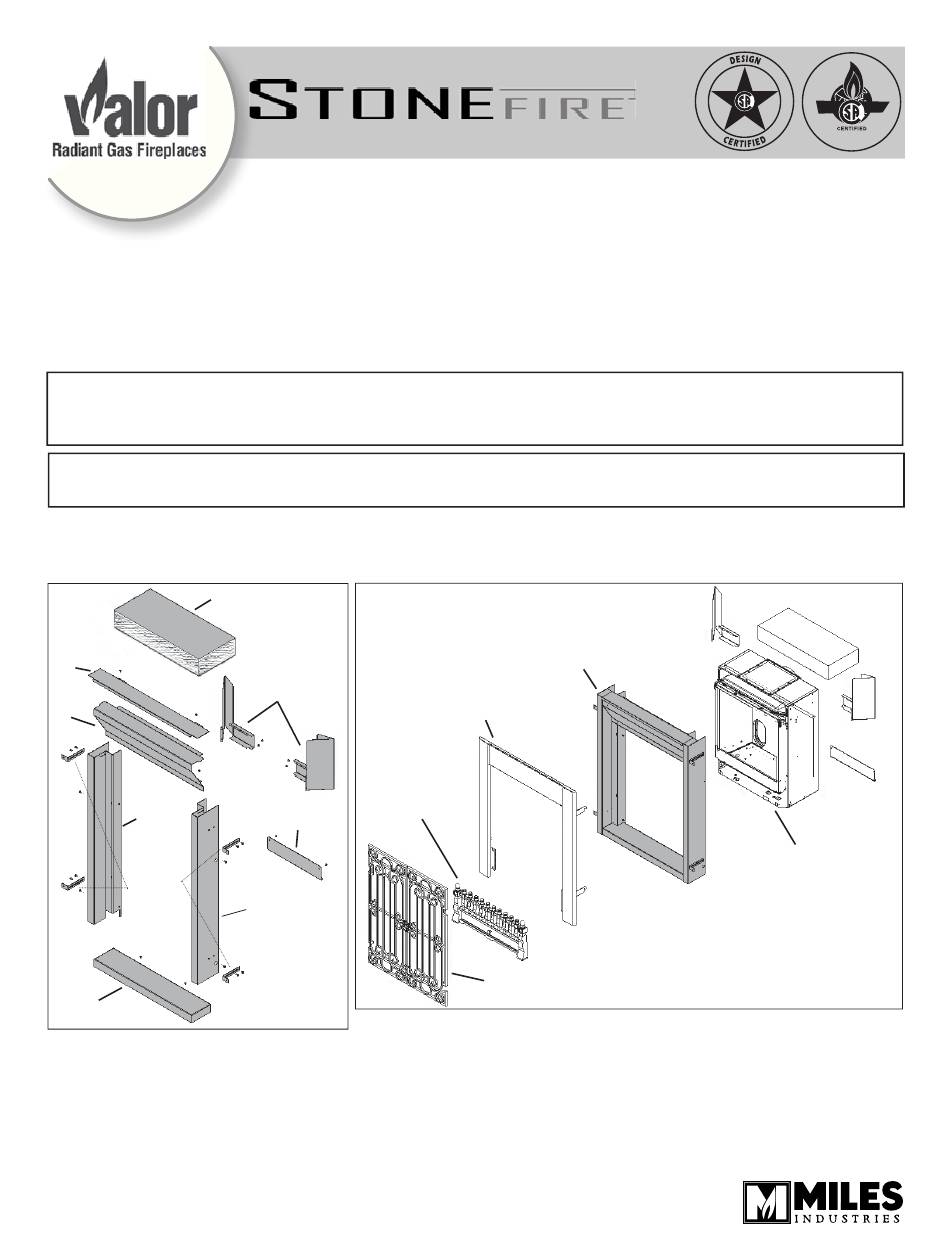

Freestyle Framing Kit components
REFER TO MAIN INSTALLATION BOOKLET SUPPLIED WITH THE ENGINE.
REFER TO INSTALLATION BOOKLET SUPPLIED WITH EACH KIT.
400101-04
SFFK01
INSTALLATION INSTRUCTIONS
CSA approved for use only with
Valor Model 530 Heater
Standoffs
Fret
(required,
sold separately)
Back Support
Bracket
Installation diagram
FOR ENGINE CONFIGURATIONS AND VENTING,
FOR FRONT, FRET AND DOORS INSTALLATIONS,
TM
Freestyle Framing Kit
(includes ZC components
shown here)
Front
(required,
sold separately)
Doors
(optional, sold separately)
(See price list for choice of Fronts, Frets and Door Kits.)
530 Engine
(required, sold
separately)
Advertisement
Table of Contents
Related Manuals for Valor STONEFIRE SFFK01
Summary of Contents for Valor STONEFIRE SFFK01
- Page 1 INSTALLATION INSTRUCTIONS CSA approved for use only with Valor Model 530 Heater Note: This kit must be installed or serviced by a qualifi ed installer, service agency or gas supplier. These instructions are to be used in conjunction with the main installation instructions for the above listed model.
- Page 2 Note: These instructions are in addition to installation instructions supplied with Valor 530 firebox unit. Any combustible framing construction must be clear of standoffs. • A non-combustible hearth is not necessary in front of this appliance. • The 530 fireplace is approved to install directly on wood sub-flooring.
-
Page 3: Mantel Clearance
CLEARANCES Side View Mantel Clearance Mantel ” 4” 6” 8” 12” Framing Diagram Depth ‘A’ Mantel 34” 36” 38” 40” 4” Height ‘B’ Combustible Combustible wall finish wall finish Kit installed flush with or protruding from wall finish. Sidewall Clearance... -
Page 4: Framing Kit Assembly
FRAMING KIT ASSEMBLY The heat duct bottom lip fits under the edge of the firebox top. Assembly Diagram... - Page 5 Unpack the kit and ensure you have all the components as shown on page 1. Fix the back support bracket to the 530 engine with 2 #8 Phillips screws supplied. Place the bottom panel under the front of the 530 engine. It is not necessary to attach it to the firebox.
- Page 6 On the outside of each side bracket, loosely fix the frame mounting brackets— 2 per side—with the 8 #10 thread forming screws supplied. Slide the mounting brackets at the appropriate distance from the front of the side brackets to receive the wall finish (1/2” to 2-1/2” from the front). Tighten the screws to fix the mounting brackets.
-
Page 7: Replacement Parts
REPLACEMENT PARTS Top Bracket 4001021AZ Heat Duct 4001020AZ Bottom Panel 4001026AZ Back Support Bracket 4000825AZ Left Hand Side Bracket 4001014AZ Right Hand Side Bracket 400101AZ Screw #10/32 x 3/8” thread form (8) 4000203 Screw Self-Tap Pn Hd Chrome Phillips #8 x 3/8” (4) 100A5 Frame Mounting Bracket (4) 4001022... -
Page 8: Manuel D'installation
MANUEL D’INSTALLATION Approuvé par la CSA pour usage exclusif avec le foyer Valor modèle 530 Note: Ce kit doit être installé ou maintenu par un installateur qualifi é, une agence de service certifi ée ou un fournisseur de gaz. Ces instructions doivent être utilisées conjointement avec les instructions d’installation du modèle de foyer mentionné... - Page 9 Note: Ces instructions sont en plus des instructions fournies avec le foyer Valor 530. Tout encastrement doit être construit à distance des écarteurs. • Une base de foyer non-combustible n’est pas nécessaire devant cet appareil. • Le foyer 530 est certifié pour installation directement sur un sous-plancher de bois.
- Page 10 DÉGAGEMENTS Manteau ou tablette combustible 88 cm (34-1/2”) du sol à la poutre du dessus et finition du 36 cm (14”) 6 cm (26-1/2”) Côté droit Dégagement pour tablette (permettre plus d’espace pour les coudes dans les évacuations arrières) ou manteau de cheminée Schéma d’encastrement Profondeur de 5 cm...
- Page 11 ASSEMBLAGE DE L’ENCADREMENT Détail de l’assemblage de la canalisation Le rebord du bas de la canalisation se place sous le rebord de la boite de foyer Schéma d’assemblage...
- Page 12 Déballez la trousse d’encadrement et assurez-vous d’avoir en main toutes les pièces montrées au schéma de la page 8. Fixez le support arrière au moteur 530 avec 2 vis Phillips no. 8 fournies. Placez le panneau du bas sous l’avant de la boite de foyer. Il n’est pas nécessaire de le fixer.
- Page 13 Sur le côté extérieur de chaque support de côté, fixez les deux supports de montage à l’aide de 8 vis auto-formeuse no. 10 fournies. Glissez les supports de montage à la position désirée pour accomoder l’épaisseur de la finition du mur (de 1 à 6 cm [1/2” à 2-1/2”] du devant de l’encadrement).
-
Page 14: Pièces De Remplacement
PIÈCES DE REMPLACEMENT Panneau du haut 4001021AZ Canalisation 4001020AZ Panneau du bas 4001026AZ Support arrière 4000825AZ Support du côté gauche 4001014AZ Support du côté droit 400101AZ Vis auto-formeuse no. 10/32 x 3/8” (8) 4000203 Vis Phillips no. 8 x 3/8” (4) 100A5 Support de montage (4) 4001022...
