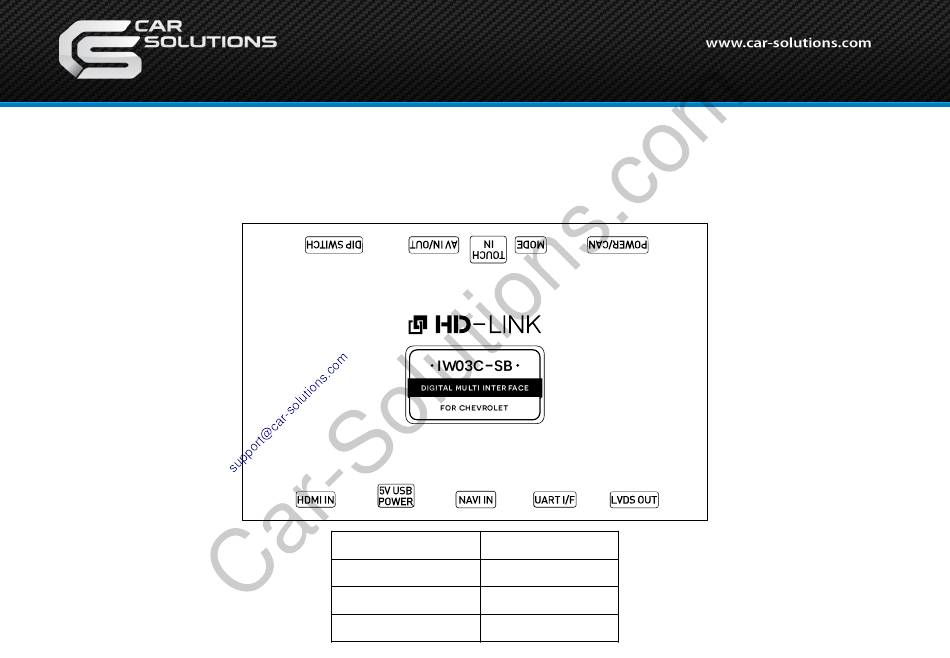

- Page 1 Release Date: 2017 - 06 – 12 Instruction Manual High-Definition Link for Chevrolet(GM) IW03C-SB Model Name IW03C-SB Latest Firmware Date 2017 - 06 - 09 Manual Version Rev. 2.0 Language English...
-
Page 2: Table Of Contents
Contents • Cautions _____________________________________________________________ 3 • Dimension & Exterior __________________________________________________ 4 • _________________________________________ 5 Components & Optional parts 「STINGRAY」 • Full Installation Diagram __________________________________ 6 • 「IMPALA, 2016 MALIBU 」 Full Installation Diagram ________________________ 7 • 「SUBURBAN, Full Installation Diagram 2016 GMC CANYON」... -
Page 3: Cautions

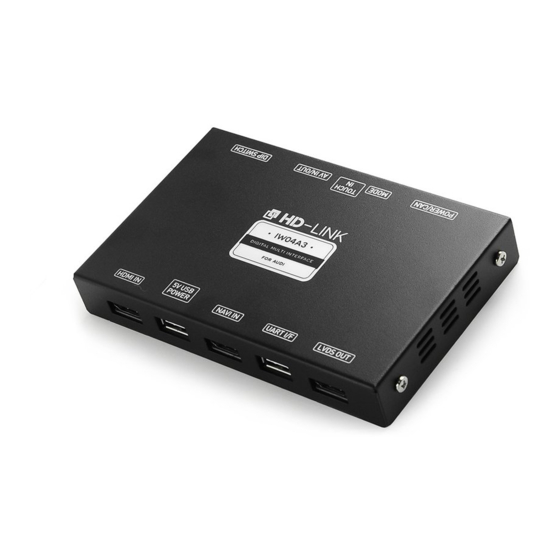

Navigation(GPS) box-related • When you connect the power wires(B+, ACC) to the navigation(GPS) box, the ‘NAVI (12V) OUT' wire supported by IW03C-SB should be spliced with an ACC wire of navigation box. • After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection menu' of setting mode. - Page 4 Dimension Length: 91 mm Height: 22 mm Width: 142 mm ⓐ ⓑ ⓒ ⓓ ⓔ Exterior ⓐ DIP SWITCH ⓑ AV IN / OUT ⓒ TOUCH IN (Connect To Set top Device) ⓓ MODE ⓔ POWER / CAN ⓕ HDMI IN ⓖ...
-
Page 5: Full Installation Diagram 「Impala, 2016 Malibu
Components Power / CAN LVDS CABLE LVDS PCB HDMI Cable AV IN / OUT CABLE 5-pin Micro USB Cable ※ Sub board Compatibility (FOR LVDS) Please refer to page14 Optional Parts(sold separately at the indiwork) LVDS CABLE Mode Switch HDMI Extender (For stick type HDMI device) - Suburban - 2016 GMC Canyon... -
Page 6: Full Installation Diagram 「Stingray
Full Installation Diagram 「STINGRAY」 GROUND OUTPUT ※ NAVI 12V Power Output(NAVI 12V OUT) Corvette Stingray MY-LINK Touch Cable Head Unit - 10pin Connector for Navigation ※ Optional External Devices TOUCH LIN IN/OUT TOUCH LIN OU T TOUCH LIN IN RV-CAM Video Input PIN # 8 = TOUCH LIN(Green/White) BUTTOM LIN... - Page 7 「IMPALA, 2016 MALIBU 」 Full Installation Diagram 「Camaro,Volt」 GROUND OUTPUT 내비게이션 전원 접지(GROUND) GROUND OUTPUT GROUND OUTPUT 내비게이션 전원 접지(GROUND) ※ NAVI 12V Power Output(NAVI 12V OUT) Chevrolet Impala, MY-LINK ※ 내비게이션용 12V 전원 출력 ※ NAVI 12V Power Output(NAVI 12V OUT) Malibu ※...
-
Page 8: Full Installation Diagram 「Suburban, 2016 Gmc Canyon
Full Installation Diagram GROUND OUTPUT 내비게이션 전원 접지(GROUND) GROUND OUTPUT GROUND OUTPUT 내비게이션 전원 접지(GROUND) ※ NAVI 12V Power Output(NAVI 12V OUT) Chevrolet Impala, MY-LINK ※ 내비게이션용 12V 전원 출력 ※ NAVI 12V Power Output(NAVI 12V OUT) Malibu 「SUBURBAN , 」... -
Page 9: Hdmi Connection Diagram
HDMI Connection Diagram HDMI Device HDMI Device HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER HDMI HDMI HDMI HDMI (5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device) (Male) (Female) (HDMI Extender) -
Page 10: Navigation Connection Diagram
Navigation Connection Diagram Navigation Connection Diagram Navigation(GPS) Box Navigation(GPS) Box HDMI IN 5V USB NAVI IN UART I/F LVDS OUT HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER POWER HDMI HDMI TOUCH IN TOUCH IN (USB Cable is connected with the ‘N-Link’, only) iNAVI –... -
Page 11: Compatibility Chart For Navigation(Gps) Box Models
OFF(↑): 1, 2, 3, 4 ↑ MYVI South Korea MS1400 Digital OFF(↓): 1, 2, 3 HDMI Cable ON(↑) : 4 • The 'IW03C-SB(HD-Link)' supports navigation(GPS) box models equipped with 'Digital video output'. • It does not support the 'RGB video signals'. -
Page 12: Lvds Connection Diagram
LVDS Connection Diagram LVDS Connection HDMI IN 5V USB NAVI IN UART I/F LVDS OUT POWER 2016 GMC CANYON ※ behind the My-link ※ behind the glove box • 'Genuine(OEM) LVDS connector' should be connected to 'LVDS IN / OUT PCB'. HDMI •... -
Page 13: Hazard Module Connection Diagram
Hazard Module Connection POWER / CAN AV IN / OUT DIP SWITCH MODE TOUCH-IN IMPALA - Hazard button 4-pin Hazard connector New Version Module Hazard PIN # 2 = Hazard(-) (Green/White) Module (4-Pin) (For Only Benz) IR IN (20 cm) (100 cm) *Hazard Module is just available with ‘Smart Drive function of N-Link’... -
Page 14: Body Connector Specifications
Body Connector specifications MODE TOUCH-IN AV IN / OUT DIP SWITCH POWER / CAN 1 2 3 4 Length: 20 cm Length : 100 cm Length: 150 cm Length: 100 cm BATTERY POWER INPUT RV-CAM VIDEO INPUT GND(RV-CAM VIDEO) GND INPUT RV-CAM POWER OUT GND OUTPUT(RV-CAM) GND OUTPUT... -
Page 15: Car Compatibility Chart
C7 (8 inch Equipped with MyLink) stingray Chevrolet 2015~ Equipped with MyLink Suburban Chevrolet 2015~ Equipped with MyLink Impala Chevrolet The IW03C-SB is used in combination 2016~ 8 inch Equipped with MyLink Malibu with Chevrolet(GM) INFOTAINMENT GMC Canyon 2016~ Equipped with MyLink system. CAMARO 2016~... -
Page 16: Activation By Original Buttons Of 「Stingray
System If you visit car service center, you can lock the all Locking / Press the button 10 seconds long. functions of IW03C-SB. It is only possible to use the HOME Unlocking OEM functions under it is locked. Back to OEM Press the buttons short. -
Page 17: Activation By Original Buttons Of 「Impala, 2016 Malibu
System If you visit car service center, you can lock the all Locking / Press the button 10 seconds long. functions of IW03C-SB. It is only possible to use the HOME Unlocking OEM functions under it is locked. Back to OEM Press the buttons short. -
Page 18: Dip Switch Settings
DIP Switch Settings ON: ▼ OFF:▲ No.6 No.7 No.8 No.9 No.10 Car Models Corvette Stingray <MY-LINK> ON(▼) OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲) Chevrolet Suburban OFF(▲) <MY-LINK> 2016~ GMC Canyon <MY-LINK> HDMI Mode Skip HDMI Mode OFF(▲) OFF(▲) OFF(▲) OFF(▲) ON(▼) Chevrolet Impala <MY-LINK>... -
Page 19: Settings
Settings Button Function Operation Touch the oem Enter into the Touch the oem screen 5 screen setting menu seconds long. All functions of setting menu of IW03GF is controlled Touch Screen (OEM Monitor) by a touch screen of the OEM monitor. 1. -
Page 20: Hdmi Mode Settings
Settings 2. HDMI mode settings - Mode selection: HDMI ↔ NAVI - Image display = Adjust the values of brightness and contrast Red-Green-Blue colors of HDMI display. - Screen position & size Entry Disabled / Not applicable. 3. NAVI mode settings - Mode selection: NAVI ↔... -
Page 21: Rear View Camera Settings
Settings 4. Rear view camera settings - Parking guide lines = Adjust position of parking guide lines and select the lines ‘ON or OFF’. - Parking distance control = Adjust the position of parking distance control sensors to ‘LEFT or RIGHT’ and select the PDC ‘ON or OFF’. - Image display = Adjust the values of brightness and contrast Red-Green-Blue colors of Rear view camera display. -
Page 22: Automatic Activation Function(Av1)
Settings 6. Automatic activation function(AV1) - Shift gear from reverse to drive - Shift gear from parking to drive * When you shift gear ‘from reverse to drive’ or ‘from parking to drive’, it just works automatically during the activation time you selected. 7. -
Page 23: System Settings
- Factory default = Reset all setting values to factory default setting. 9. System information - Mode name : IW03C-SB - Firmware date : 2017 – 06 – 09 (Latest firmware date) - = You can check the current firmware version date. -
Page 24: Information Of Dip Switch Settings
Settings 10. Information of Dip switch settings * You can check the current positions of dip switch settings. ex 1) ex 2) Actual DIP switch values. (→) Actual DIP switch values. (→) Appears on the setting menu. (↓) Appears on the setting menu. (↓)
