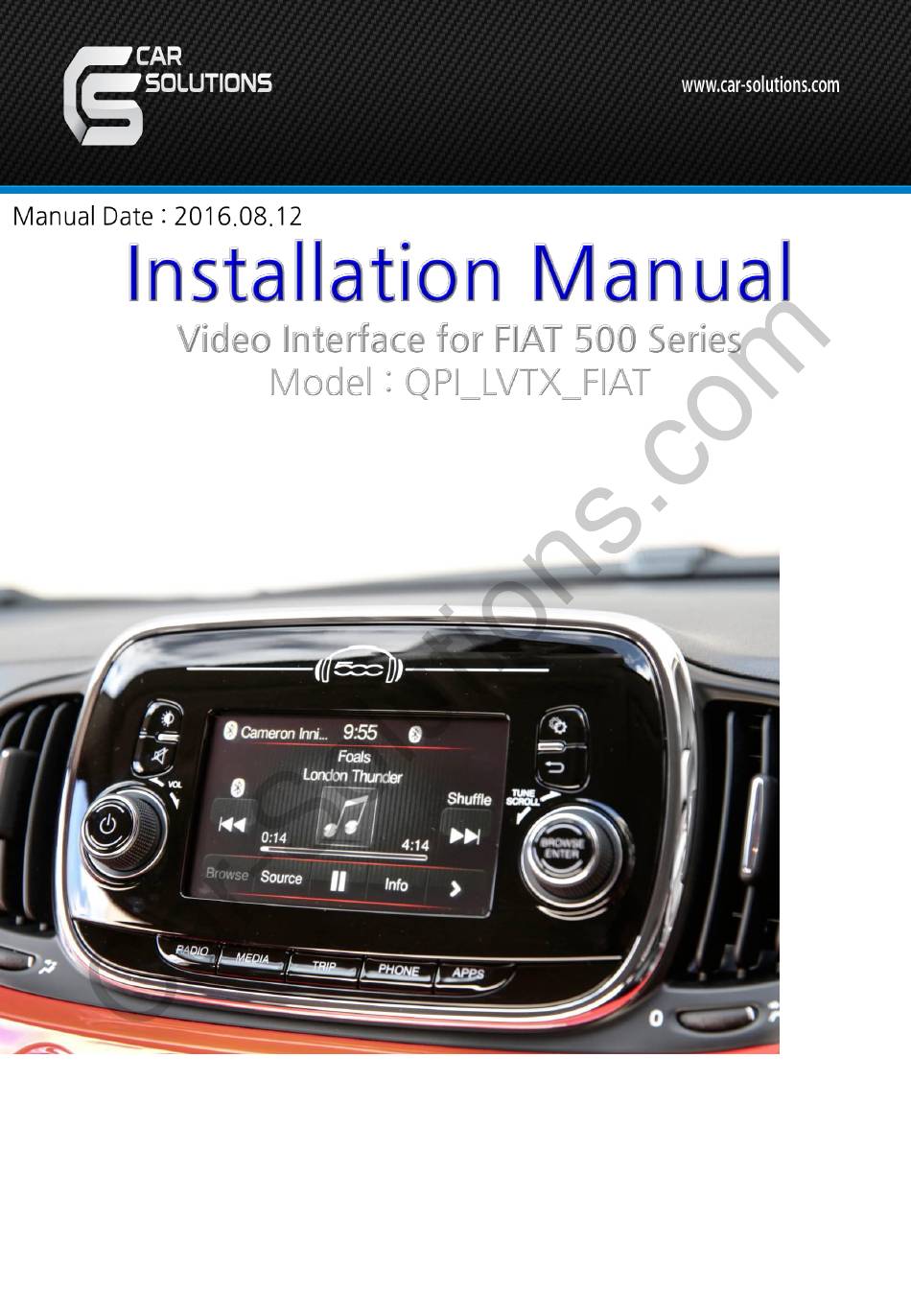

Car Solutions QPI LVTX FIAT Installation Manual

Video interface for fiat 500 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QPI LVTX FIAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Car Solutions QPI LVTX FIAT

Summary of Contents for Car Solutions QPI LVTX FIAT

  • Page 2 •Specification Compatibility : 2016 FIAT 500 Series, Alfa Romeo 5inch Components : Interface* 1pcs, Subboard* 1pcs Interface Input/Output specification Input : Analog RGB*1, A/V*1, CVBS(Rear Camera)*1 CVBS(Front Camera)*1 Output : To LCD*1 Power Spec Input Power : 8VDC ~ 18VDC Consumption : 5WATT Switch input mode - External video sources skip function : able to control input...
  • Page 3 •Product exterior Length-90mm Height-18mm Width-140mm MODE(Button cable) | IR(IR cable) | POWER(Power cable) | REAR(rear cable) | RGB-IN-HDMI(Mirroring connection) | RGB-IN-NAVI(RGB Navigation) | AV IN/OUT(AV cable | TO NAVI T/S OUT(NAVI touch cable) | LVDS-OUT(Subboard) TEST(No use) | LED | DIP S/W(Dip switch setting) •Components Power * 1ea LVDS * 1ea...

  • Page 4: Remote Control

    •DIP SWITCH 설정 ※ ON : DOWN / OFF : UP Function Dip S/W OFF : Display RGB(Navi) Mode RGB mode ON : Skip RGB(Navi) Mode OFF : Display AV1 Mode AV1 mode ON : Skip AV1 Mode OFF : Display A/V2 Mode AV2 mode ON : Skip A/V2 Mode OFF : Display A/V3 Mode...

  • Page 5: Factory Setting

    •Factory Setting Adjust the position and size of image Menu of FACTORY IMAGE H-POSITION H-POSITION : Move the image horizontally PARK V-POSITION UTIL1 H-SIZE(NAVI) V-POSITION : Move the image vertically. UTIL2 H-SIZE(NAVI) : Adjust the size of navigation INFO image horizontally MENU to Return SEL to Select/Save Menu of FACTORY...
  • Page 6 •Factory Setting Select Navigation&Car model Menu of FACTORY IMAGE NAVI MODEL NAVI MODEL : Select RGB Navigation model PARK CAR MODEL UTIL1 AVOUT SELECT CAR MODEL : No use UTIL2 HDMI SKIP AVOUT SELECT : Select background mode sound INFO FACTORY RESET via Car Aux(AV1, AV2, Default) HDMI SKIP : Able to skip HDMI mode...
  • Page 7 •순정버튼 사용 ※ Long press – Activate the front camera (Front camera image will disappear 10 seconds later) ※ Long Press - Mode switch (RGB→AV1→AV2→F-CAM) Short Press – Return to OEM mode ※ Return to OEM mode if other buttons are pressed...
  • Page 8 •Installation Diagram SUB BOARD LVDS Cable Touch Cable Audio R Audio L AV/OUT Video CAN-H-HS REAR C CAN-L-HS F-CAM-DET SAFE REAR Cable CAN-H-LS CAN-L-LS NAVI BOX •CAN / ACC wire connection ※ Find OEM cables behind the command CAN HIGH CAN LOW ground ※...
  • Page 9 •Subboard Monitor Connection Disassemble the monitor Remove the original FFC cable in a circle Put the supplied subboard on the top Connect touch cable as shown above of PCB board and assemble bolts in marked places (Use OEM bolts) Supplied parts Supplied parts...

  • Page 10: Troubleshooting

    •Trouble shooting Q. I cannot change mode A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not check connection of POWER cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well.

  • Page 11: Revision History

    •Revision History Date History Page...
