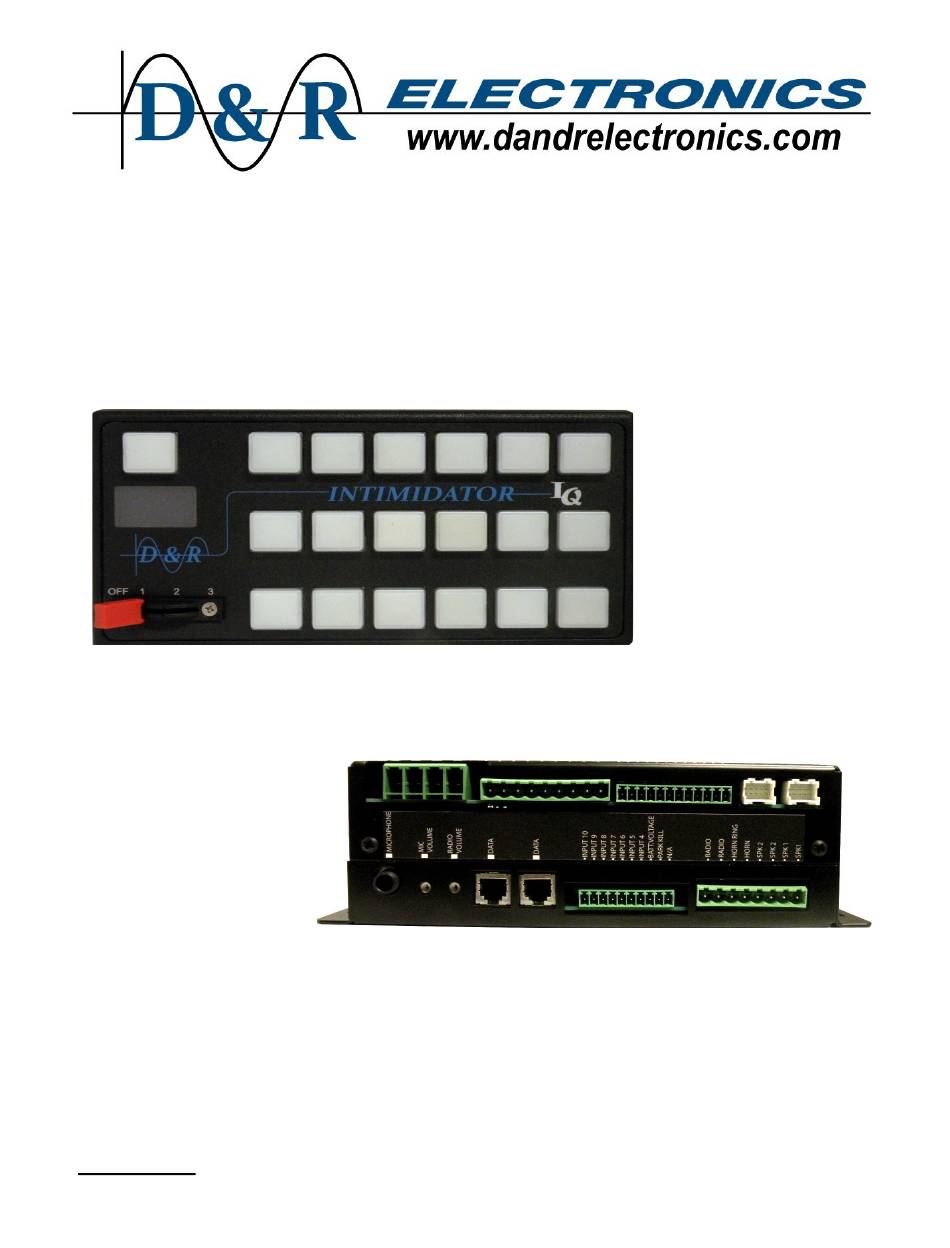

- Page 1 F5S-IQ INSTALLATION MANUAL Model F5S-IQ1 F5S-IQ2 IMPORTANT: Carefully read ALL instructions and warnings before attempting to install and operate this equipment. July 31, 2019...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1—UNPACKING & PRE-INSTALLATION CHECK…………………………………. Page 3 2—SAFETY CONSIDERATIONS……………………………………………………... Page 3 3—SPECIFICATIONS…………………………………………………………………... Page 4 4—INSTALLATION……………………………………………………………………... Page 5 5—LABELING INSTRUCTIONS………………………………………………………. Page 6 6—F5S-IQ DEFAULT CONFIGURATION……………………………………………. Page 7 7—F5S-IQ TOUCHPAD PROGRAMMING…………………………………………… Page 8 8—F5S-IQ VOLTAGE CALIBRATION………………………………………………... Page 8 9—F5S-IQ TEMPERATURE CALIBRATION………………………………………… Page 9 10—F5S-IQ TOUCHPAD BACKLIGHT QUICK SETTING…………………………. -
Page 3: 1-Unpacking & Pre-Installation Check
1. Unpacking & Pre-Installation Check D&R Electronics Co. recommends that you open and examine all shipments within 48 hours of receipt. The INTIMIDATOR IQ systems are shipped pre-assembled and factory tested. All necessary hardware for standard installation is included. Use this pre-installation check list to verify your unit: 1.Confirm contents with the packing slip 2.Examine unit for damaged in transit (i.e. -
Page 4: 3-Specifications
3. Specifications General Input Voltage ............11 to 16 Volts DC Input Fuse ..............60 Amps (external) Operating Temperature Ranges ......-40 C to +65 Standby Current ............50mA + 10% during IGNITION OFF time-out ….………………………..………….ØmA after time-out Control Box Weight Control Box Physical Dimensions Height .........2 - 1/16”... -
Page 5: 4-Installation
4. Installation CONNECTOR #1 PIN 1 — Connect a BLACK 10 AWG wire to battery GROUND. PIN 2 — Connect a RED 10 AWG wire to the POSITIVE side of the battery, using a 60A breaker. PIN 3 — Connect a RED 10 AWG wire to the POSITIVE side of the battery, using the same 60A breaker as PIN 2. -
Page 6: 5-Labeling Instructions
CONNECTOR #6 PIN 1 — SIREN #1 SPEAKER PIN 2 — SIREN #1 SPEAKER PIN 3 — SIREN #2 SPEAKER (optional) PIN 4 — SIREN #2 SPEAKER (optional) PIN 5 — HORN PIN 6 — HORN RING PIN 7 — RADIO input PIN 8 —... -
Page 7: 6-F5S-Iq Default Configuration
6. F5S-IQ DEFAULT TOUCHPAD CONFIGURATION The touchpad setup is a standard factory default. For setup changes refer to the software manual for program- ming. The labels can be rearranged as per customer’s preference. SLIDE SWITCH 1 — Activates STBY, REAR FLASH buttons. SLIDE SWITCH 2—... -
Page 8: 7-F5S-Iq Touchpad Programming
ARROW DIRECT — Activates Output 13 & Output 14 as 2 trigger traffic director: LEFT ARROW—Output 13 continuous ON RIGHT ARROW—Output 14 continuous ON CENTER OUT—Output 13 & Output 14 continuous ON 7. F5S-IQ TOUCHPAD PROGRAMMING The F5S-IQ system provides access to the following features: display intensity, push-buttons backlight inten- sity, push-buttons ON light intensity through touchpad programming. -
Page 9: 9-F5S-Iq Temperature Calibration
Step 6: Enter “CALIBRATION VOLTAGE”. Adjust the voltage on the display to match the voltage measured in Step 1. Use SW9 to increase and SW10 to decrease value. Press SW8 to save and exit voltage calibration. 9. F5S-IQ TEMPERATURE CALIBRATION (optional equipment) The F5S-IQ system provides an optional connection for up to 3 temperature sensor modules. -
Page 10: 11-Images
11. IMAGES IQ-CONTROL BOX REAR VIEW Figure 1: Input / Output Layout July 31, 2019... -
Page 11: Front View Connectors Layout
IQ-CONTROL BOX FRONT VIEW CONNECTOR #11: DATA Figure 2 IQ-CONTROL BOX TOP VIEW Figure 3: IQ-Control Box Output LED Indicators And Output fuses 12. TOUCHPAD FILE UPLOAD ERROR CODES Error Name Error Description LCD Display FIELD_COUNT TPP file fields counts is wrong, file content is wrong Error 1 INVALID_VERSION TPP file version is wrong... -
Page 12: 13-Warranty & Product Return Policy
WARRANTY D & R Electronics warrants its new products to be free from defects in material and workman- ship, under normal use and service for a period of three years on parts replacement. This warranty applies only to original purchasers acquiring the product directly from D&R Electronics, or its authorized dealers.
