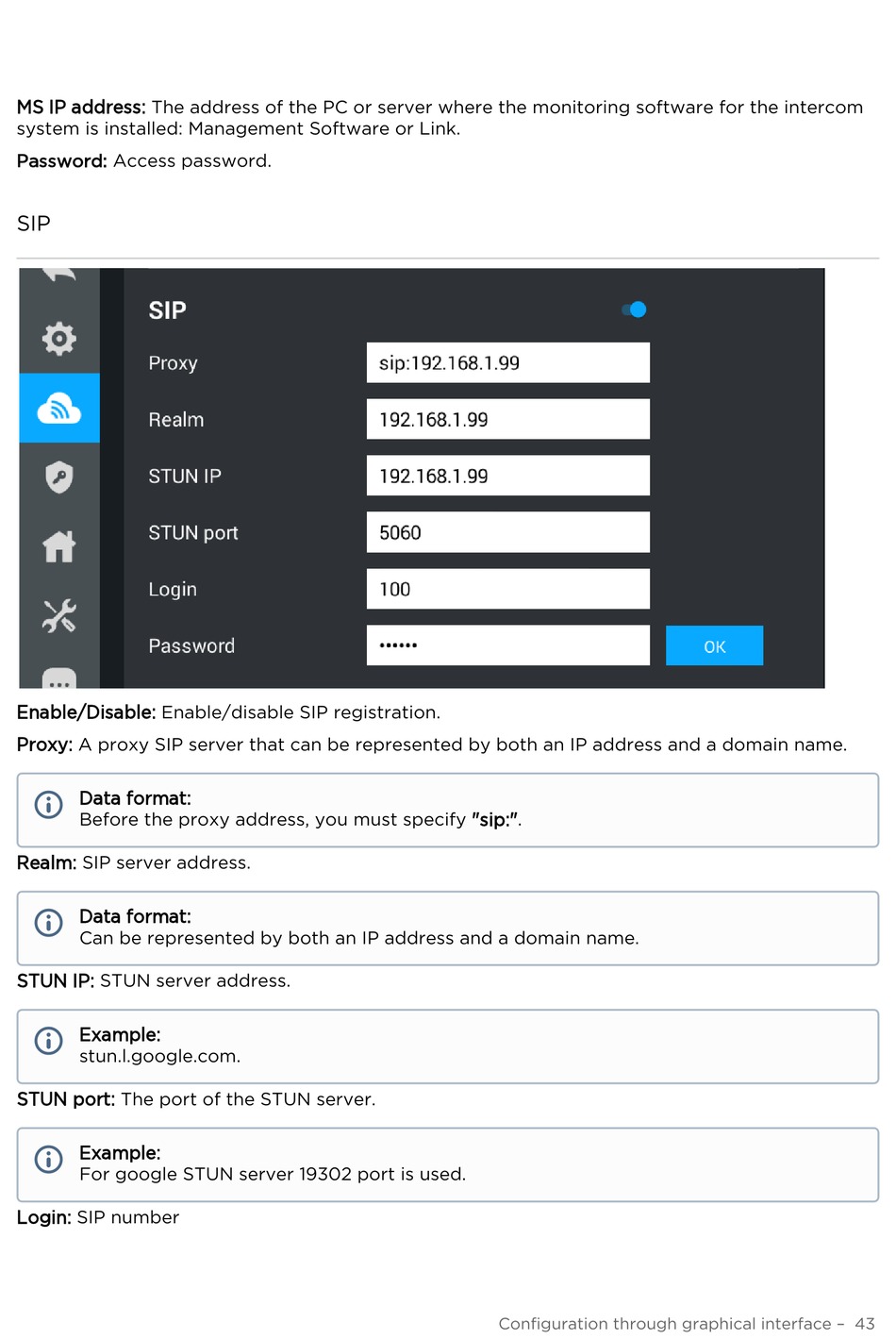

Sip - BAS-IP AK-10 Manual

MS IP address: The address of the PC or server where the monitoring software for the intercom
system is installed: Management Software or Link.
Password: Access password.

SIP

Enable/Disable: Enable/disable SIP registration.
Proxy: A proxy SIP server that can be represented by both an IP address and a domain name.

Data format:
Before the proxy address, you must specify "sip:".
Realm: SIP server address.

Data format:
Сan be represented by both an IP address and a domain name.
STUN IP: STUN server address.

Example:
stun.l.google.com.
STUN port: The port of the STUN server.

Example:
For google STUN server 19302 port is used.
Login: SIP number
Configuration through graphical interface – 43
