Smittybilt 5660224 Installation Instructions

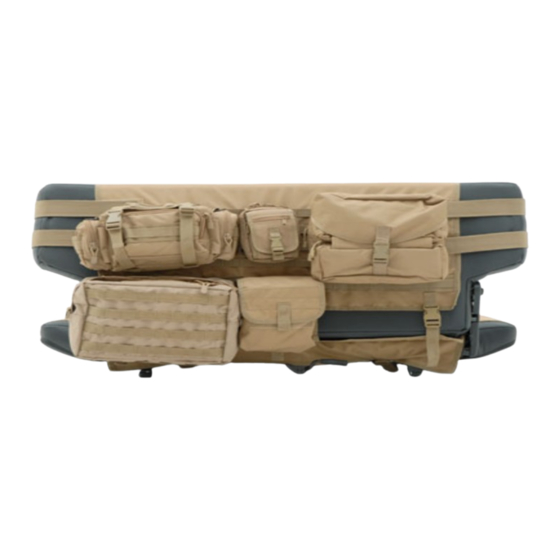

G.e.a.r. rear seat cover

Carefully read the following installation instructions for ease of installation.

NOTE:

STEP 1: Position the bottom portion of the cover across the seat bottom. (Fig A) Fold the seat

forward and pull the side pieces of the cover back underneath the seat and secure with

strap. Now pull the straps from the front back under seat and secure to rear buckles.(Fig B)

(Fig A)

STEP 2:

Position the top cover over the seat. (On 03-06 Wranglers simply lineup the latch flap with

latch in seat.) (Fig C) Attach by putting Velcro straps through buckles and then pulling back

and fastening. (See step 4 on how to attach Velcro straps on smaller seats) Pull bottom

straps through middle of seat and secure to rear buckles. (Fig D)

(Fig C)

STEP 3: After the cover is completely on you may adjust the straps in order to get a better fit. You can

adjust the cover and straps accordingly to access any special seat features like levers or

knobs.

Installation Instructions

G.E.A.R. Rear Seat Cover

(Universal Fit)

(Fig D)

(Fig B)

(Fig E)
